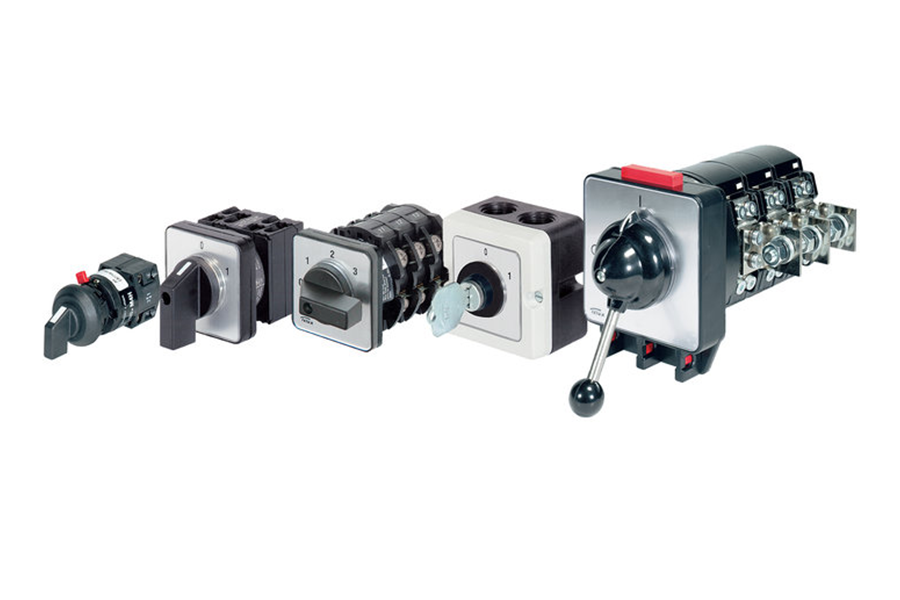

Selector Switches / CAM Switches: An Overview
Selector Switches, including CAM (Camshaft-Actuated Mechanism) Switches, are manual control devices within the Panel Components category. They enable operators to select between multiple circuit states or operating modes (e.g., ON/OFF, AUTO/MANUAL, SPEED SETTINGS) by rotating a knob or lever. CAM Switches use a rotating cam disc to open or close electrical contacts, providing precise, multi-position control for industrial and commercial systems.
What are Selector Switches / CAM?
Selector Switches: Rotary or toggle switches with multiple positions (e.g., ON-OFF-ON, 3-position) to select different circuit paths or modes (e.g., manual/auto, speed settings).

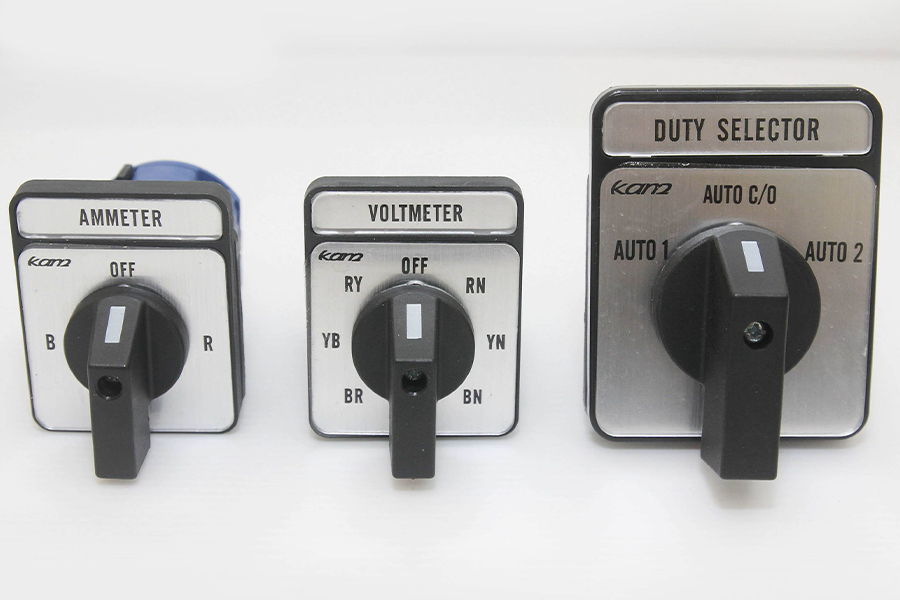

CAM Switches: A specialized type of selector switch using a cam mechanism to open/close contacts in a precise sequence. Schneider’s CAM switches, such as the Harmony XB5 series, are ideal for multi-circuit control in motor starters, phase reversal, or load switching.
Types of Selector Switches / CAM?
Rotary Selector Switches:
Basic multi-position control (e.g., mode selection on machinery).
Key-Operated Switches:
Require a key to prevent unauthorized access (e.g., equipment power control).
Maintained vs. Spring-Return:
Maintained: Stay in selected position until manually changed.
Spring-Return: Return to default when released (e.g., momentary override).
Multi-Deck CAM Switches:
Stacked cam discs for complex sequencing (e.g., conveyor belt direction/speed control).
Explosion-Proof:
Certified for hazardous areas (ATEX, IECEx).
Key Features:
Contact Configuration:
Normally Open (NO) / Normally Closed (NC): Configurable contacts for circuit control.
Multi-Pole Options: Single or multiple poles (e.g., 2P, 3P, 4P) to control several circuits simultaneously.
Positions & Detents:
2-Position: Simple ON-OFF or two-mode selection.
3-Position or More: Complex mode switching (e.g., OFF-LOW-HIGH).
Detent Mechanism: Tactile “clicks” to lock the switch into position, preventing accidental movement.
Construction & Materials:
Housing: Durable thermoplastic, metal, or flame-retardant materials (e.g., UL94 V-0).
Contacts: Silver alloy or gold-plated for high conductivity and arc resistance.
Actuator: Rotary knob, lever, or key-operated design for security.
CAM Mechanism:
A rotating cam disc aligns with contact blocks to open/close circuits.
Adjustable cam profiles allow custom sequencing (e.g., staggered contact engagement).
Electrical Ratings:
Voltage: 24V DC to 600V AC.
Current: Typically 10A–20A for general use; higher ratings for industrial loads.
Environmental Durability:
IP Ratings: IP65/IP67 for dust/water resistance.
Temperature Range: -25°C to 70°C for harsh environments.
Standards Compliance:
IEC 60947-3, UL 508, and EN 60204-1 for safety and performance.
Applications
Industrial Control Panels:
Select motor modes (AUTO/MANUAL), adjust conveyor speeds, or switch between power sources.
HVAC Systems:
Choose fan speeds or operational modes (HEAT/COOL/FAN).
Machinery:
Control machine tool operations (e.g., lathe spindle direction).
Power Distribution:
Transfer between grid/generator power in switchgear.
Renewable Energy Systems:
Toggle between solar/battery/grid inputs.
Advantages:
Versatility: Adaptable to diverse control scenarios with configurable poles/positions.
Durability: Robust construction withstands millions of cycles in demanding environments.
Precision: CAM mechanisms ensure reliable, repeatable contact alignment.
Safety: Key-locking and detent features prevent accidental operation.
Selection Considerations:
Functionality: Number of positions, poles, and contact types (NO/NC).
Electrical Load: Match voltage/current ratings to the application (e.g., 20A @ 480V AC).
Environmental Needs: IP rating, chemical resistance, and temperature range.
Mounting: Panel cutout size (e.g., 22mm, 30mm) or DIN rail mounting.
Compliance: Industry certifications (UL, CE, ATEX).
Actuator Style: Knob, lever, or keyed operation for security.
Safety Notes:
Load Compatibility: Avoid overloading contacts beyond rated specifications to prevent arcing/failure.
Lockout/Tagout (LOTO): Use key-operated switches to isolate equipment during maintenance.
Regular Inspection: Check for contact wear, alignment, and debris in CAM mechanisms.
Comparison with Push Buttons:
While push buttons are single-action devices (momentary or maintained), selector switches provide multi-position control for complex sequencing. CAM switches excel in applications requiring synchronized contact operation, such as motor reversing or multi-step processes.
Conclusion:
Selector Switches and CAM Switches are indispensable for advanced control systems, offering precise, multi-functional operation in industrial, commercial, and energy applications. Their robust design, configurability, and compliance with safety standards make them critical for operators requiring reliable mode selection, sequencing, and circuit control. When integrated with components like Pilot Lights, Digital Panel Meters (DPMs), and relays, they form a cohesive interface for intelligent, user-friendly automation.
