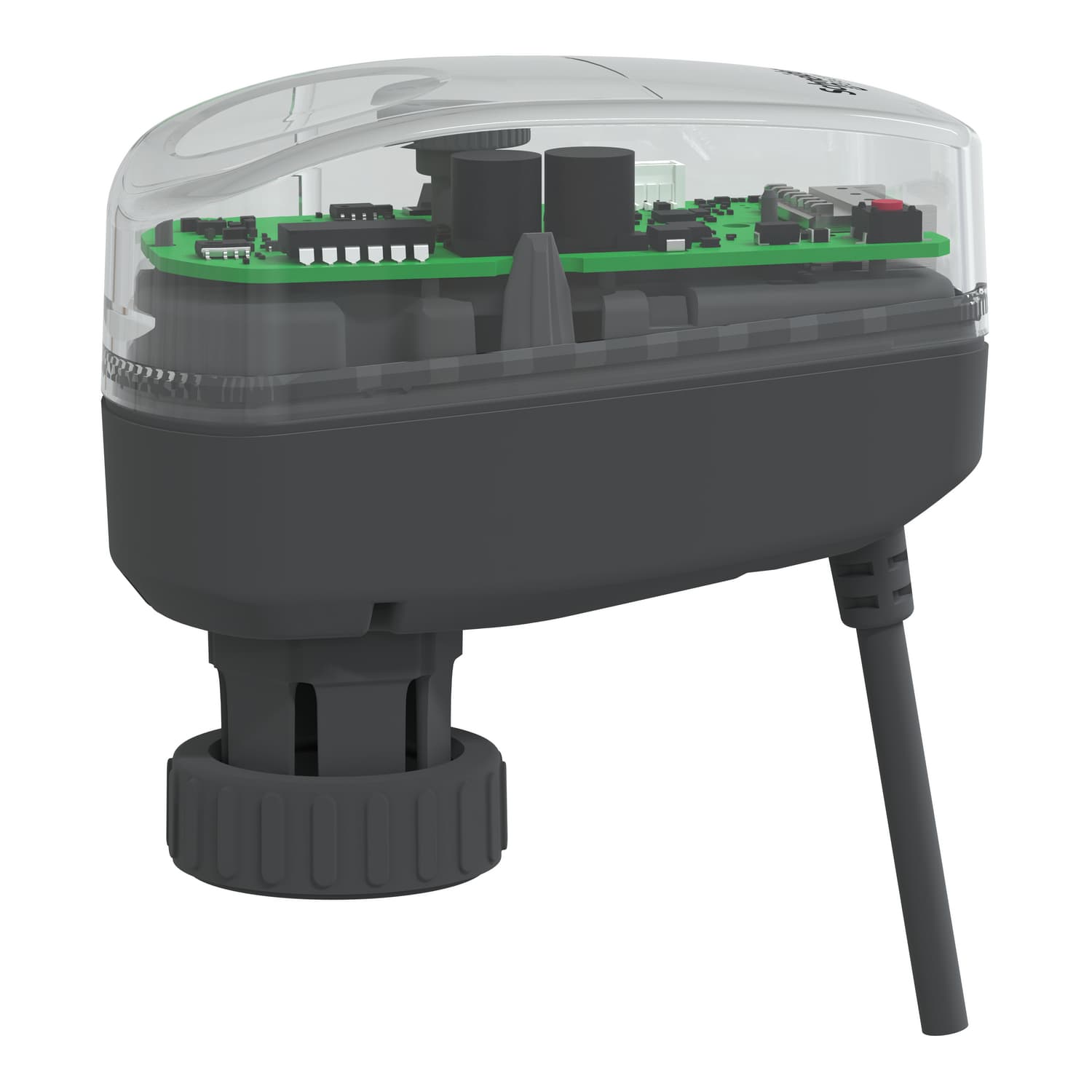

Schneider Electric actuator. SpaceLogic MP130S PIBCV Modulating Actuator, Non-Spring Return, 24V AC/DC, 150N, IP54 with Position Feedback, 5m cable.
SpaceLogic MP130S PIBCV Modulating Actuator, Non-Spring Return, 24V AC/DC, 150N, IP54 with Position Feedback, 5m cable. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Actuator product range | SpaceLogic |
|---|
| Product or component type | Actuator |
|---|
| Actuator type | Electric |
|---|
| Actuator product series | MP130 |
|---|
| Actuator model | MP130 |
|---|
| Product destination | pressure independent control valves |
|---|
| Power consumption in VA | 3.4 VA |
|---|
| Power loss return | Non-spring return |
|---|
| Control signal | Proportional/modulating |
|---|
| Targeted region | Asia Pacific. · Australia. · Europe |
|---|
| Actuator | Linear |
|---|
| Control type | Automatic |
|---|
| rated supply voltage | 24 V AC/DC |
|---|
| Analogue input range | 0...10 V DC · 2...10 V DC |
|---|
| Power consumption in W | 1.4 W |
|---|
| Stroke length | 7.5 mm |
|---|
| Electrical insulation class | Class III |
|---|
| Force N | 150 N |
|---|
| Force lbf | 34 lbf |
|---|
| Position indicator | Stroke indicator on bracket |
|---|
| Lead length | 5 m |
|---|
| Leads and connections | Integral cable |
|---|
| Connection valve | Integral linkage |
|---|
| Stroke running time | 24 s |
|---|
| IP degree of protection | IP54 |
|---|
| Ambient air temperature for operation | -10…55 °C |
|---|
| Relative humidity | 0…95 % RH, non-condensing |
|---|
| Ambient air temperature for storage | -40…70 °C |
|---|
| Unit Type of Package 2 | BB1 |
|---|
| Number of Units in Package 2 | 6 |
|---|
| Package 2 Height | 40 cm |
|---|
| Package 2 Width | 28.4 cm |
|---|
| Package 2 Length | 20 cm |
|---|
| Package 2 Weight | 3.432 kg |
|---|
| Warranty (in months) | 18 |
|---|
