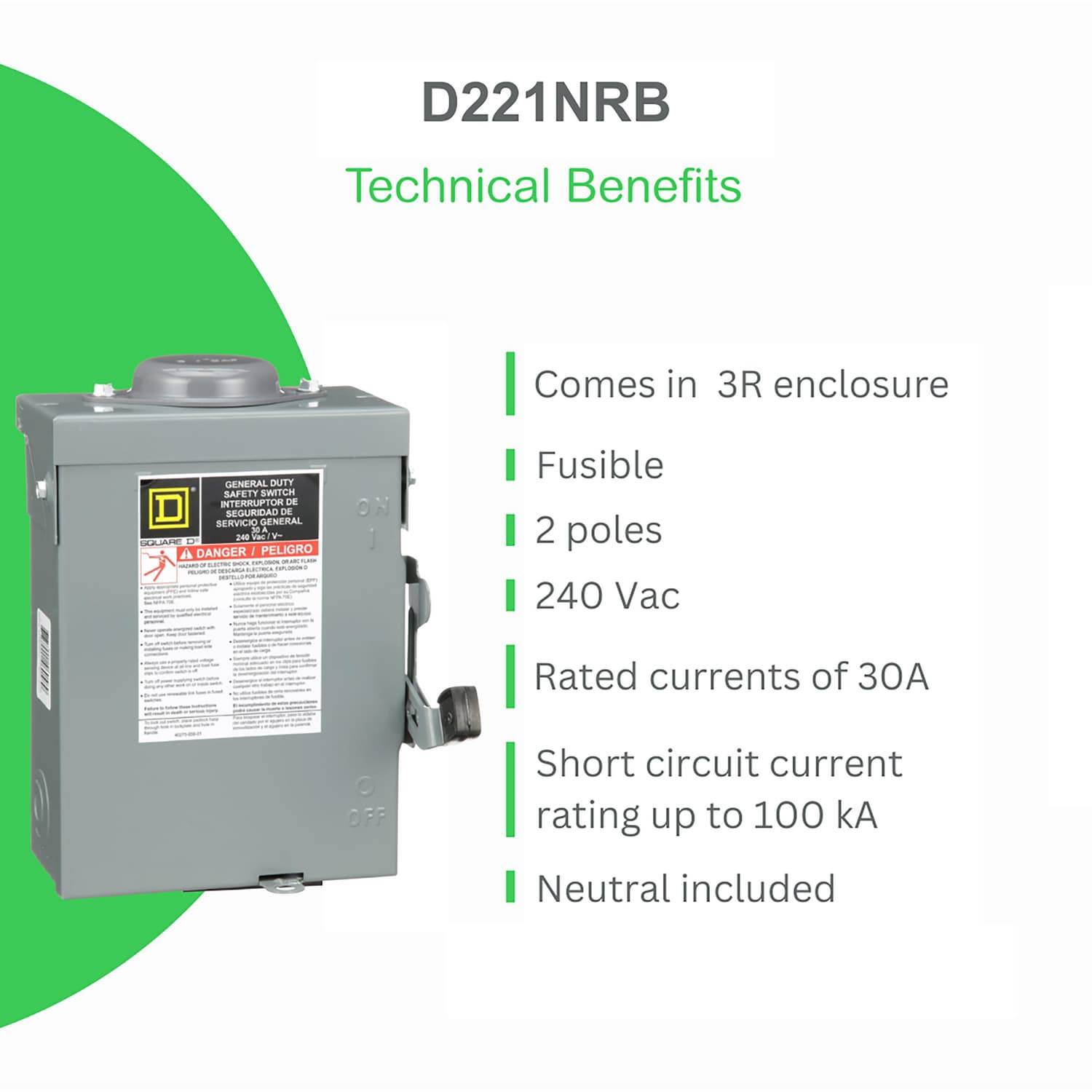

Genuine Schneider Electric product. Safety switch, general duty, fusible, 2 pole, 3 wire, 240VAC, 30A, Type 3R, bolt on hub prov, with neutral.
Safety switch, general duty, fusible, 2 pole, 3 wire, 240VAC, 30A, Type 3R, bolt on hub prov, with neutral. Genuine Schneider Electric product supplied by United Force.
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | General duty |
| Device application | Residential |
| Disconnect Type | Fusible disconnect switch |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 2 |
| Current Rating | 30 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 3R |
| Motor power hp | 1.5 hp at 240 V AC 60 Hz for 1 phase motors · 3 hp at 240 V AC 60 Hz for 3 phases motors · 3 hp at 240 V AC 60 Hz for 1 phase motors · 7.5 hp at 240 V AC 60 Hz for 3 phases motors |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
| Fuse type | H, K or R |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | 14 AWG...6 AWG copper · 12 AWG...6 AWG aluminium |
| Tightening torque | 3.4 N.m for 2.08…13.3 mm² (14 AWG...6 AWG) |
| Depth | 92.20 mm |
| Width | 184.15 mm |
| Height | 234.95 mm |
| Product weight | 7.7 kg |
| Certifications | UL listed file E2875 |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 26.670 cm |
| Package 2 Width | 24.892 cm |
| Package 2 Length | 60.960 cm |
| Package 2 Weight | 11.426 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 150 |
| Package 3 Height | 101.600 cm |
| Package 3 Width | 101.600 cm |
| Package 3 Length | 121.920 cm |
| Package 3 Weight | 347.905 kg |
| Warranty (in months) | 18 |
