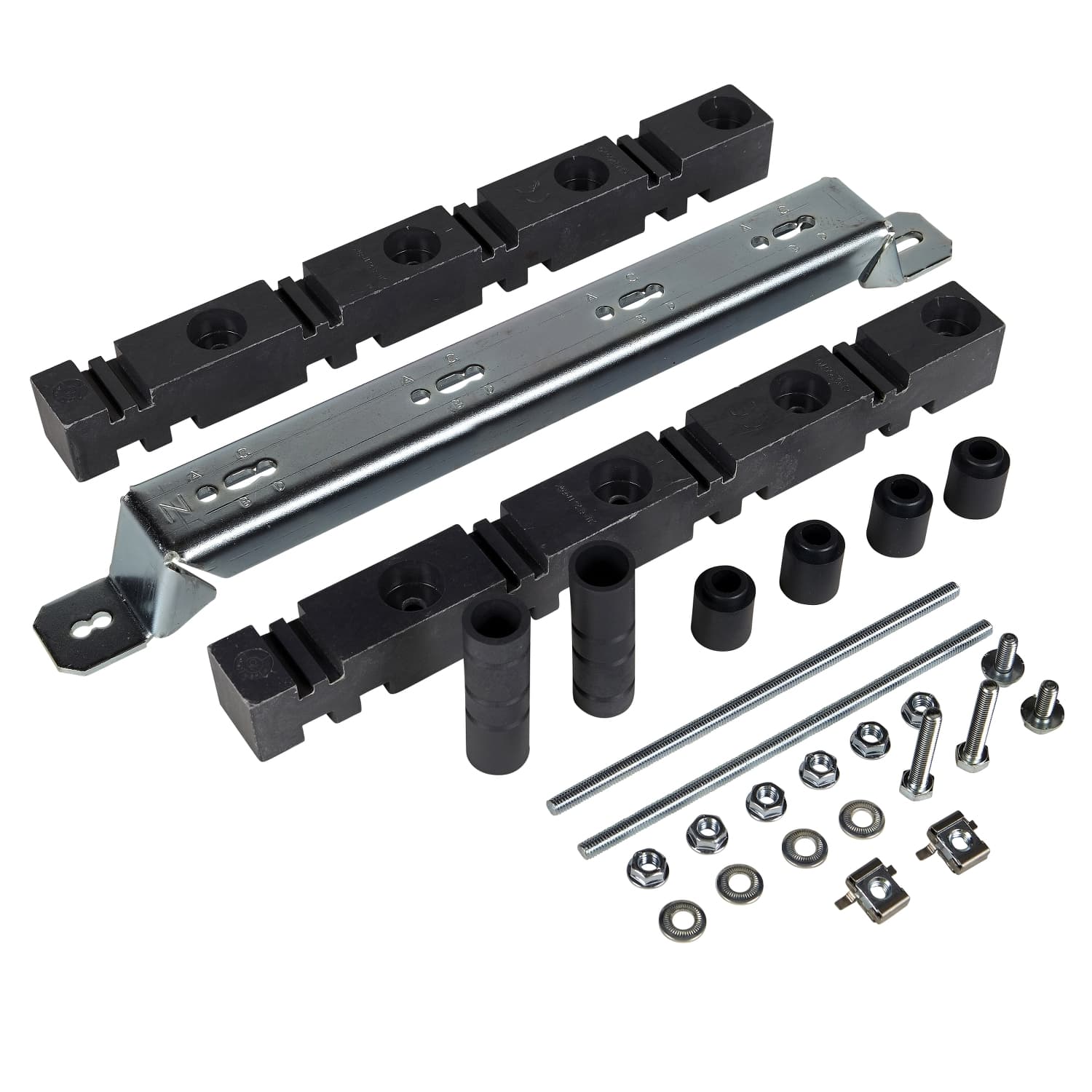

Schneider Electric PanelSeT busbar support, rated 3200 A. Vertical bar support up to 3200 A 600x600 mm.
Vertical bar support up to 3200 A 600x600 mm. Genuine Schneider Electric product supplied by United Force.
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose · Prisma application |
| Enclosure nominal dimensions | - |
| Mounting location | On structure of enclosure |
| Busbar position | Vertical |
| Range compatibility | PanelSeT PanelSeT SF · Linergy Linergy LGYE · Linergy Linergy BS · Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar - fixed · Linergy BS lateral busbar - fixed |
| Device composition | fixing elements · 1 metal support · 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic · Metal support: steel |
| Fixing mode | By fixing element |
| Width | Fixing centers: 550 mm · Nominal: 600 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 48.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 102.000 kg |
| Warranty (in months) | 18 |
