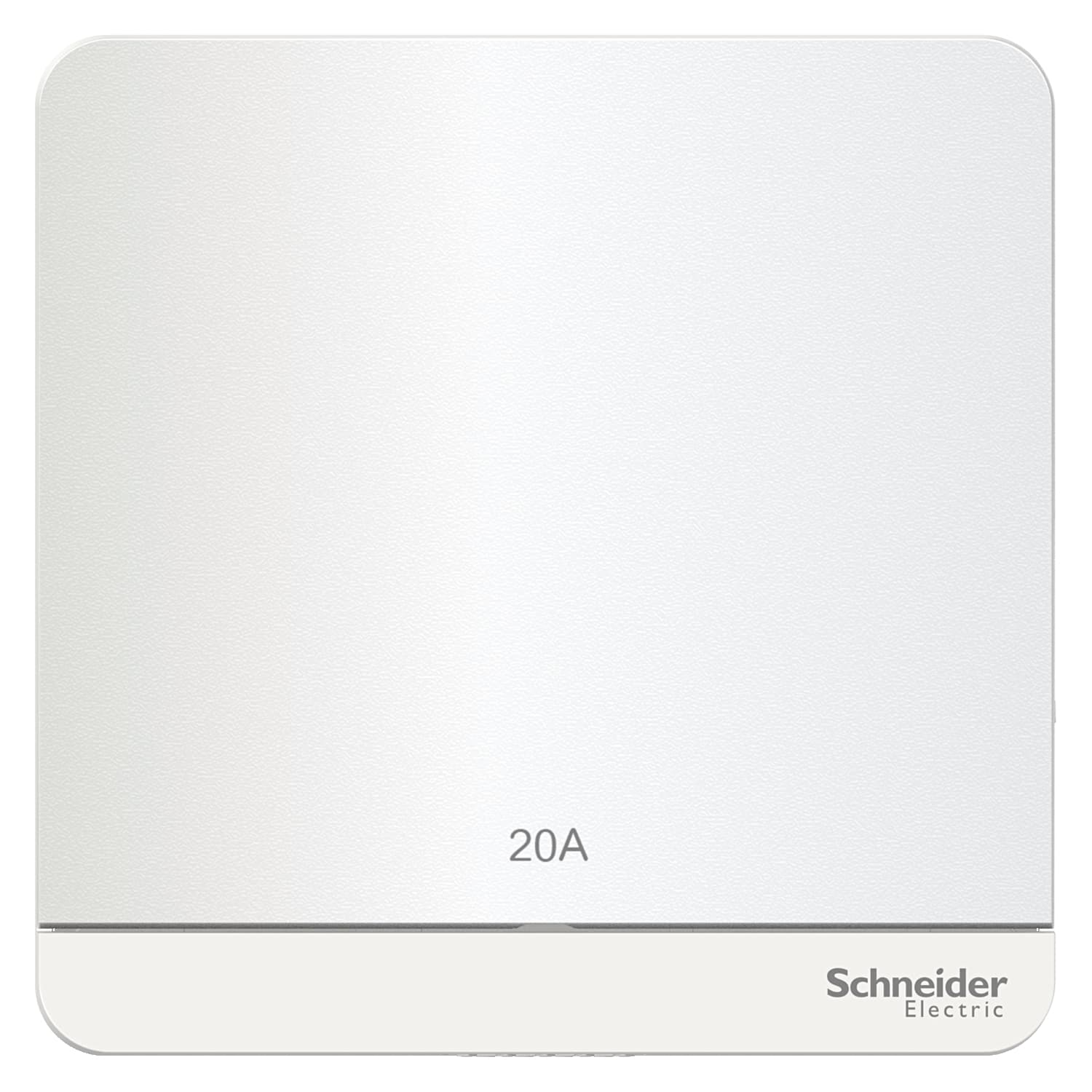

Schneider Electric AvatarOn switch. AvatarOn, switch, 20A, 250V, 2P, LED, White.
AvatarOn, switch, 20A, 250V, 2P, LED, White. Genuine Schneider Electric product supplied by United Force.
| Range | AvatarOn |
|---|---|
| Product or component type | Switch |
| Device application | Control |
| load type | Incandescent lamp · Serial boost load (SBL) · Motor · Fluorescent lamps · Resistive |
| Colour tint | White |
| Device presentation | Complete product |
| Rated current | 20 A at 250 V AC 50/60 Hz |
| Switch function | 2-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Local signalling | On: LED indicator, LED (amber) |
| Device mounting | Flush |
| Connections - terminals | Brass terminal |
| Clamping connection capacity | 3 x 2.5 mm² for stranded cable(s) · 1 x 4 mm² for stranded cable(s) · 1 x 6 mm² for stranded cable(s) |
| IP degree of protection | IP20 |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Standards | SS 227-1 · BS EN 60669-1 · IEC 60669-1 · MS IEC 60669-1 |
| Environmental characteristic | UV resistant |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 941 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 21 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 39.5 cm |
| Package 3 Weight | 6 kg |
| Warranty (in months) | 18 |
