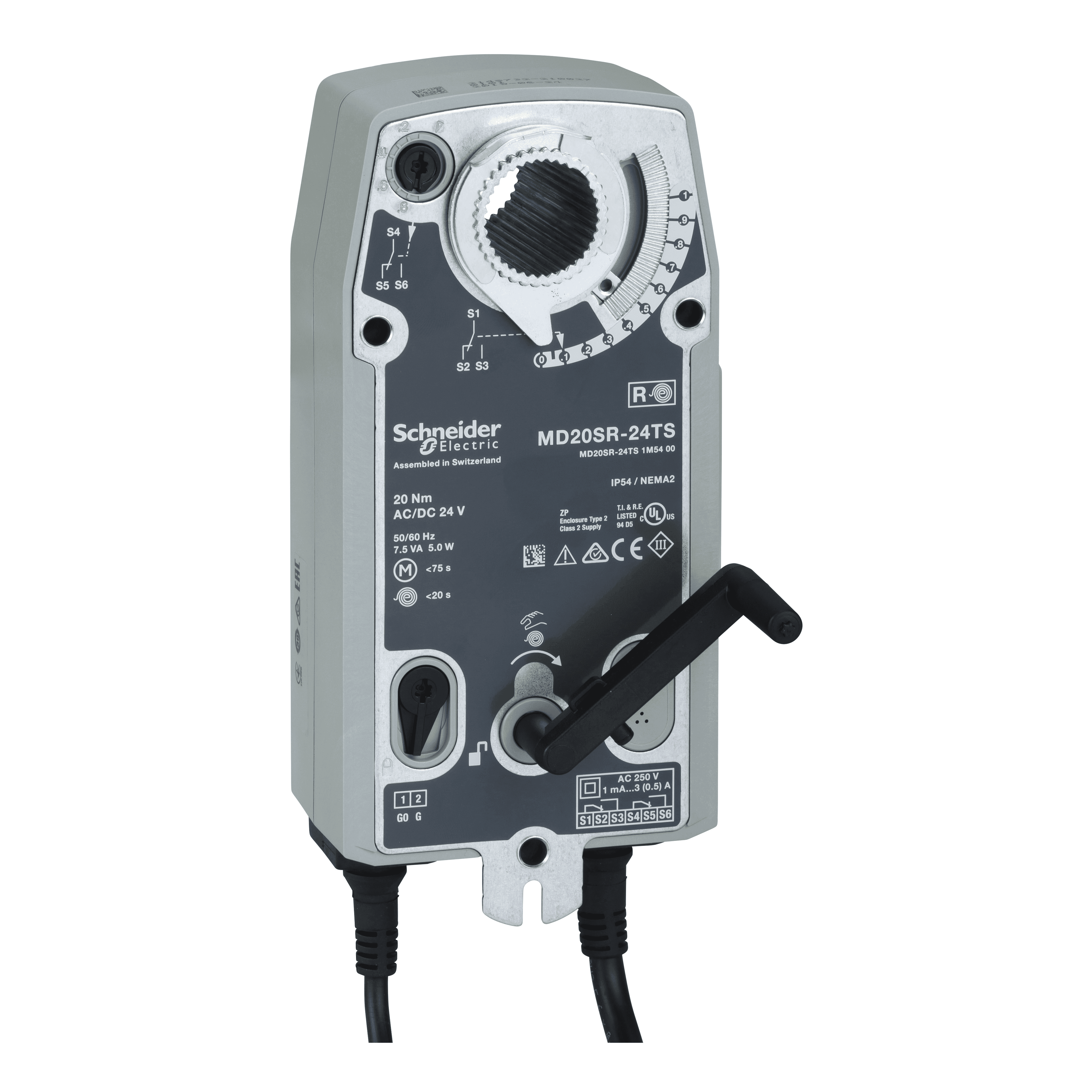

Schneider Electric actuator. MD20-SR Damper Actuator, 2-Position or 3-Wire Floating, Spring Return, 110-240Vac / 24-125Vdc, 1m Cable, 20Nm, S2 Switch, IP54.
MD20-SR Damper Actuator, 2-Position or 3-Wire Floating, Spring Return, 110-240Vac / 24-125Vdc, 1m Cable, 20Nm, S2 Switch, IP54. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Product or component type | Actuator |
|---|
| Actuator type | Electric |
|---|
| Actuator product series | MD20SR |
|---|
| Actuator model | MD20 SR-24/240TS |
|---|
| Product destination | dampers |
|---|
| Actuator | Rotary |
|---|
| Control type | Automatic reset |
|---|
| Switch function | 2 SPDT |
|---|
| rated supply voltage | 24...240 V AC · 24...125 V DC |
|---|
| Transformer rated power in VA | 18 VA |
|---|
| Power consumption in W | 6.5 W |
|---|
| Power consumption in VA | 18 VA AC |
|---|
| Hold-in power consumption in W | 3.3 W |
|---|
| Power loss return | Spring return |
|---|
| Control signal | 2-position (on/off) |
|---|
| Electrical insulation class | Class II |
|---|
| Tightening torque | 177 lb.in · 20 N.m |
|---|
| Position indicator | Visual indicator |
|---|
| Lead length | 1 m |
|---|
| Spring return timing | 75 s |
|---|
| Actuator rotation | 95 ° |
|---|
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
|---|
| IP degree of protection | IP54 |
|---|
| Ambient air temperature for operation | -30…50 °C |
|---|
| Relative humidity | 0…95 % RH, non-condensing |
|---|
| Ambient air temperature for storage | -40…80 °C |
|---|
| Targeted region | Europe · Asia Pacific. · Australia. |
|---|
| Warranty (in months) | 18 |
|---|
