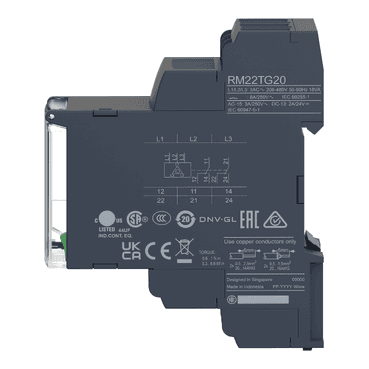

Schneider Electric 3-phase control relay. Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC.
Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Control relay |
| Product or component type | 3-phase control relay |
| Network number of phases | 3 phases |
| Relay name | RM22TG |
| Relay monitored parameters | Phase sequence · Phase failure detection (2 or more phase cut) |
| Time delay type | Without |
| Switching capacity in VA | 2000 VA |
| Measurement range | 208...480 V voltage AC |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms at maximum voltage |
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| [Us] rated supply voltage | AC/DC |
| Supply voltage limits | 183…528 V AC |
| operating limits | 183...528 V AC |
| Power consumption in VA | 15 VA at 480 V AC 60 Hz |
| Voltage detection threshold | < 100 V AC |
| supply voltage frequency | 50...60 Hz +/- 10 % |
| Output contacts | 2 C/O |
| nominal output current | 8 A |
| Power on Delay | 650 ms |
| Response time | <= 200 ms |
| Overvoltage category | III conforming to IEC 60664-1 · III conforming to UL 508 |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end · Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Status LED | LED (yellow) relay ON · LED (green) power ON |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 · DC-13 conforming to IEC 60947-5-1 · AC-1 conforming to IEC 60947-4-1 · DC-1 conforming to IEC 60947-4-1 |
| [Un] rated nominal voltage | , self-powered |
| Safety reliability data | MTTFd = 924.6 years · B10d = 850000 |
| Contacts material | Cadmium free |
| Control type | With test button |
| Width | 22.5 mm |
| Height | 90 mm |
| Depth | 73 mm |
| Product weight | 0.095 kg |
| Immunity to microbreaks | 10 ms |
| Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 · Immunity for industrial environments conforming to IEC 61000-6-2 · Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 · Emission standard for industrial environments conforming to IEC 61000-6-4 · Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 · Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 · Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 · Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 · Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 · Conducted and radiated emissions class B group 1 conforming to CISPR 11 · Conducted and radiated emissions class B conforming to CISPR 22 |
| Standards | IEC 60255-1 |
