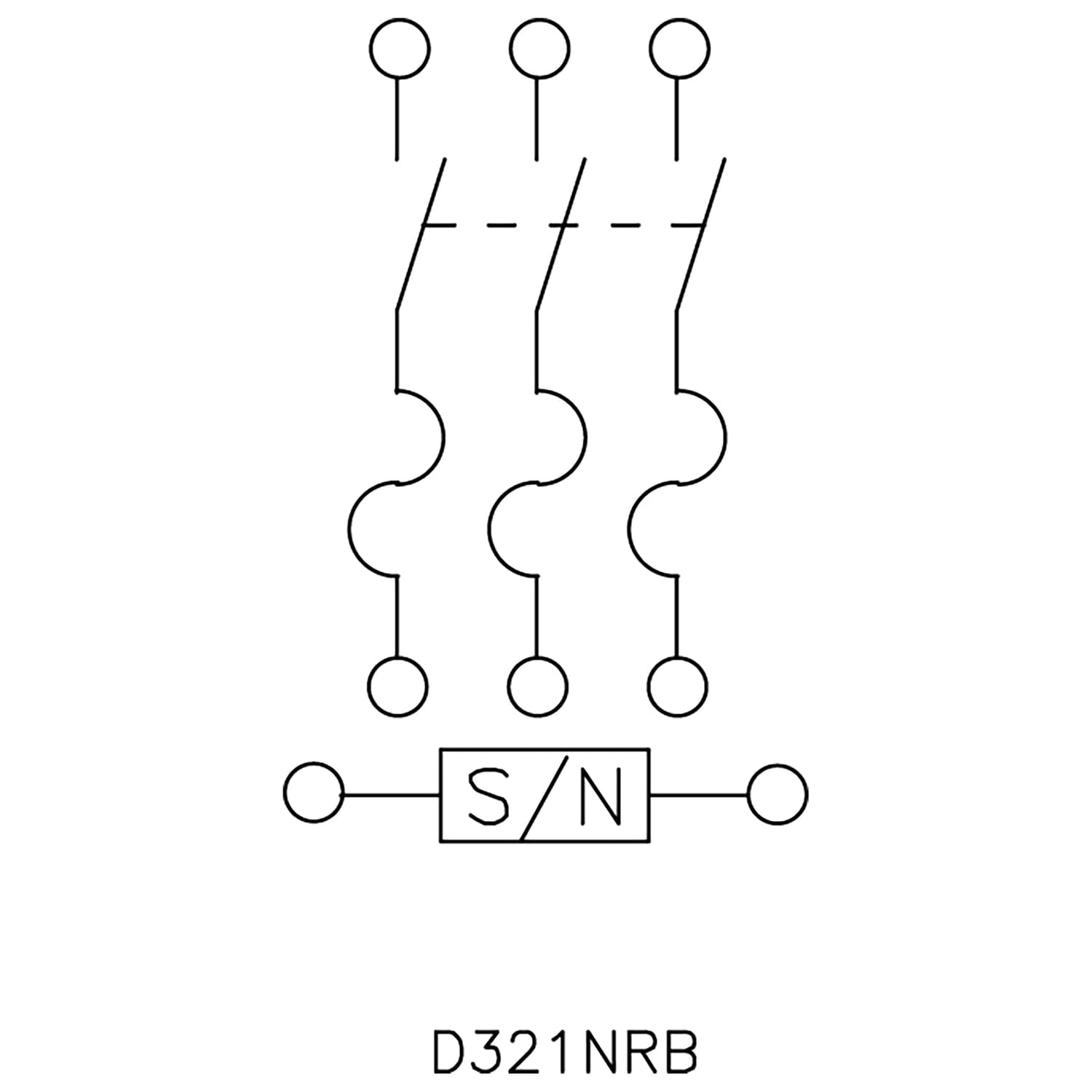

Genuine Schneider Electric product. Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed.
Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Product | Single Throw Safety Switch |
|---|
| Duty Rating | General duty |
|---|
| Device application | Residential |
|---|
| Disconnect Type | Fusible disconnect switch |
|---|
| Factory Installed Neutral | Neutral (factory installed) |
|---|
| Number of Poles | 3 |
|---|
| Current Rating | 30 A |
|---|
| Voltage Rating | 240 V AC |
|---|
| Enclosure Rating NEMA | NEMA 3R |
|---|
| Motor power hp | 1.5 hp at 240 V AC 60 Hz for 1 phase motors · 3 hp at 240 V AC 60 Hz for 3 phases motors · 3 hp at 240 V AC 60 Hz for 1 phase motors · 7.5 hp at 240 V AC 60 Hz for 3 phases motors |
|---|
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
|---|
| Fuse type | H, K or R |
|---|
| Mounting Type | Surface |
|---|
| Electrical Connection | Lugs |
|---|
| Wiring configuration | 4-wire (3P + E) |
|---|
| Wire Size | 14 AWG...6 AWG copper · 12 AWG...6 AWG aluminium |
|---|
| Tightening torque | 3.4 N.m for 2.08…13.3 mm² (14 AWG...6 AWG) |
|---|
| Depth | 95.25 mm |
|---|
| Width | 196.85 mm |
|---|
| Height | 244.60 mm |
|---|
| Product weight | 9 kg |
|---|
| Certifications | UL listed file E2875 |
|---|
| Unit Type of Package 2 | CAR |
|---|
| Number of Units in Package 2 | 5 |
|---|
| Package 2 Height | 25.146 cm |
|---|
| Package 2 Width | 27.432 cm |
|---|
| Package 2 Length | 61.214 cm |
|---|
| Package 2 Weight | 11.984 kg |
|---|
| Unit Type of Package 3 | PAL |
|---|
| Number of Units in Package 3 | 120 |
|---|
| Package 3 Height | 96.520 cm |
|---|
| Package 3 Width | 101.600 cm |
|---|
| Package 3 Length | 121.920 cm |
|---|
| Package 3 Weight | 288.031 kg |
|---|
| Warranty (in months) | 18 |
|---|
