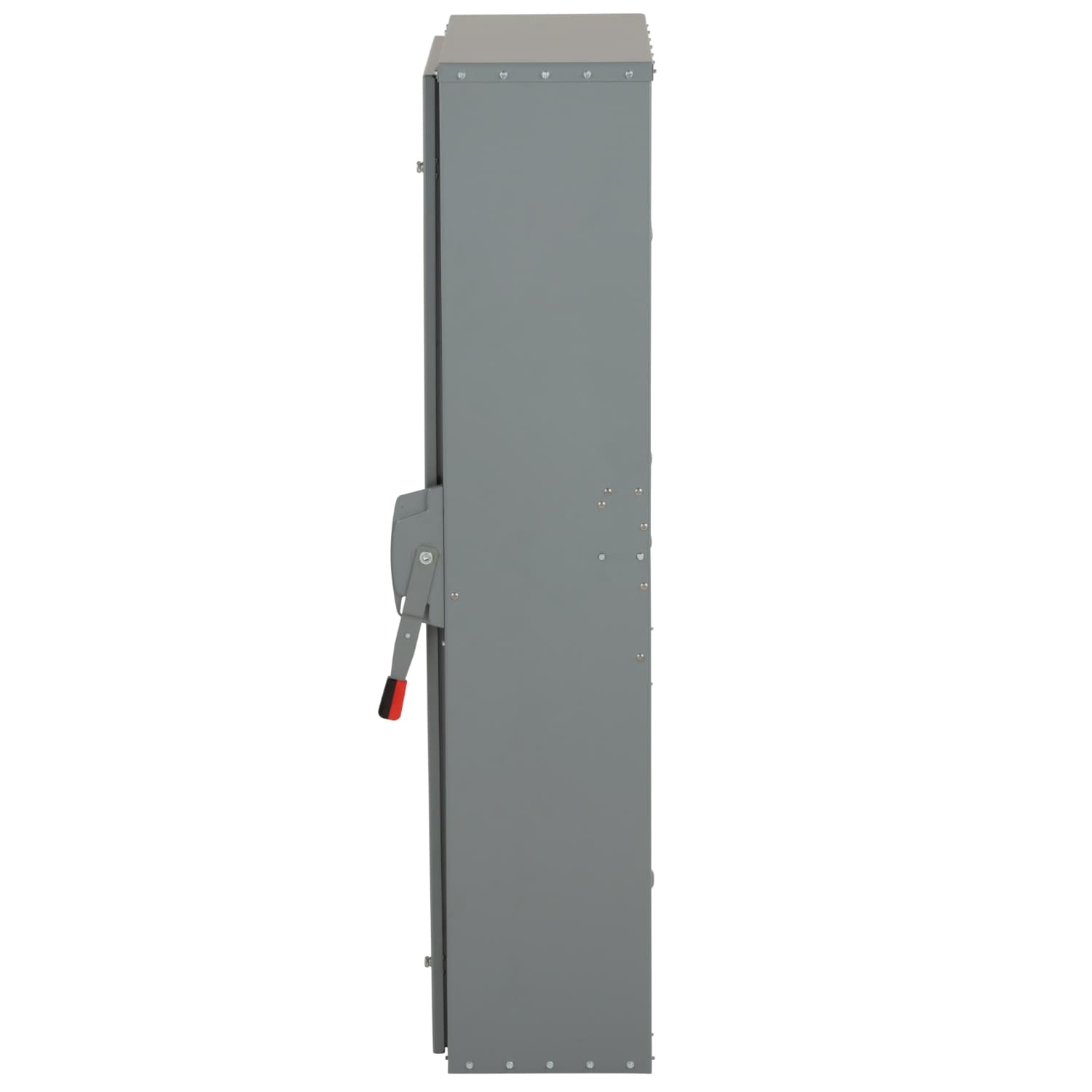

Genuine Schneider Electric product. Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1.
Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1. Genuine Schneider Electric product supplied by United Force.
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 800 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 1 steel |
| Standard Motor Power Rating | 200 hp at 480 V AC 50...60 Hz for 3 phases motors · 500 hp at 480 V AC 50...60 Hz for 3 phases motors · 250 hp at 600 V AC 50...60 Hz for 3 phases motors · 500 hp at 600 V AC 50...60 Hz for 3 phases motors · 50 hp at 600 V DC |
| Short-circuit current | 200 kA maximum for L |
| Fuse type | L |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 3/0...750 kcmil copper or aluminium |
| Tightening torque | 42.4 N.m for 85.01…380 mm² (AWG 3/0...750 kcmil) |
| Depth | 450.85 mm |
| Width | 930.15 mm |
| Height | 1755.90 mm |
| Product weight | 167.8 kg |
| Certifications | UL listed file E2875 |
| Warranty (in months) | 18 |
