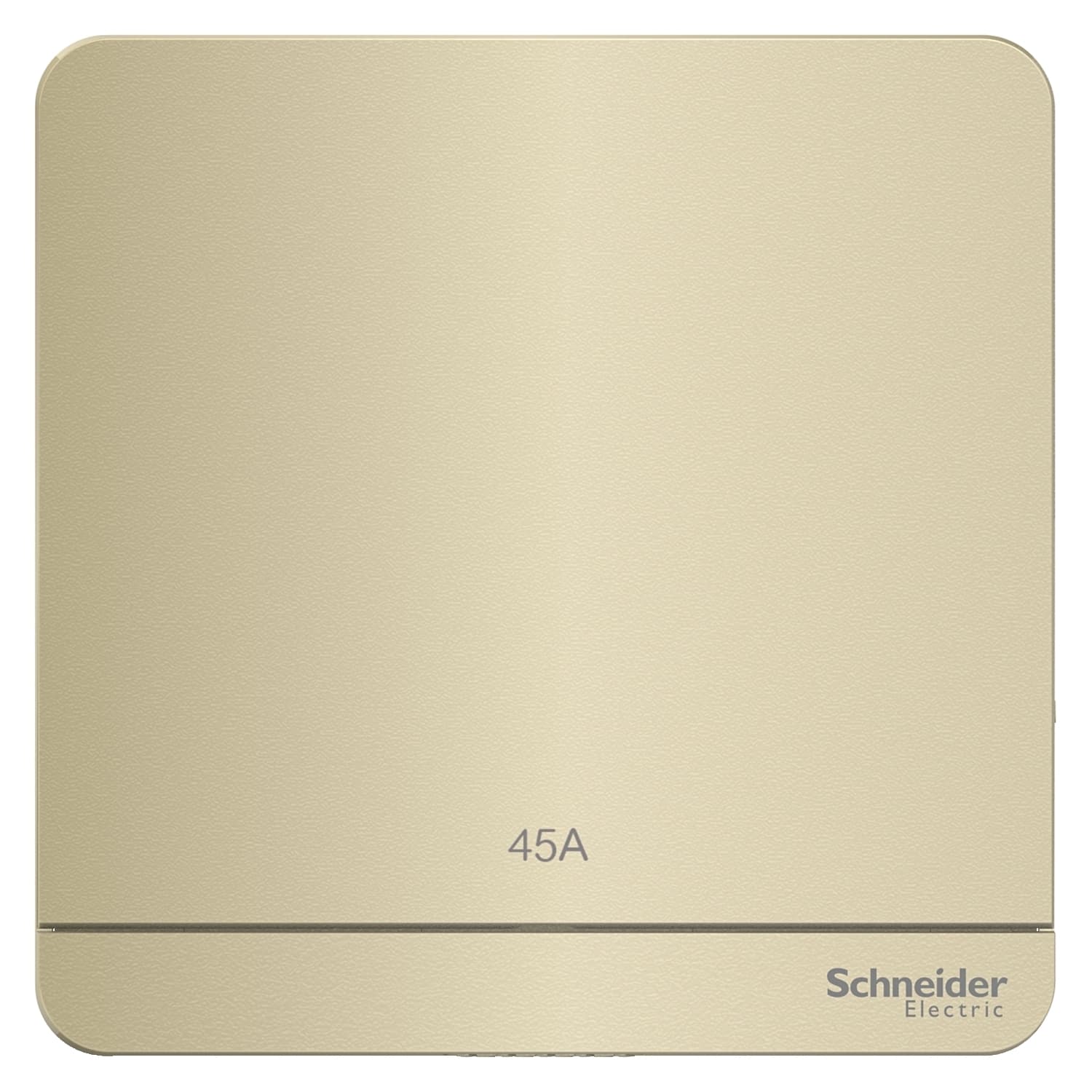

Schneider Electric AvatarOn switch. AvatarOn, switch, 45A, 250V, 2P, LED, Wine gold.
AvatarOn, switch, 45A, 250V, 2P, LED, Wine gold. Genuine Schneider Electric product supplied by United Force.
| Range | AvatarOn |
|---|---|
| Product or component type | Switch |
| Device application | Control |
| load type | Incandescent lamp · Small motor load · Fluorescent lamps · Serial boost load (SBL) · Resistive |
| Colour tint | Wine gold |
| Device presentation | Complete product |
| Rated current | 45 A at 250 V AC 50/60 Hz |
| Switch function | 2-pole 1-way |
| Number of gangs | 1 gang |
| Number of rocker | 1 |
| Local signalling | On: LED indicator, LED (amber) |
| Device mounting | Flush |
| Connections - terminals | Brass terminal |
| Clamping connection capacity | 4 x 4 mm² for stranded cable(s) · 1 x 10 mm² for stranded cable(s) · 1 x 16 mm² for stranded cable(s) |
| IP degree of protection | IP20 |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Standards | BS EN 60669-1 · SS 227-1 · IEC 60669-1 · MS IEC 60669-1 |
| Environmental characteristic | UV resistant |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.297 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1728 |
| Package 3 Height | 110 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 291.12 kg |
| Warranty (in months) | 18 |
