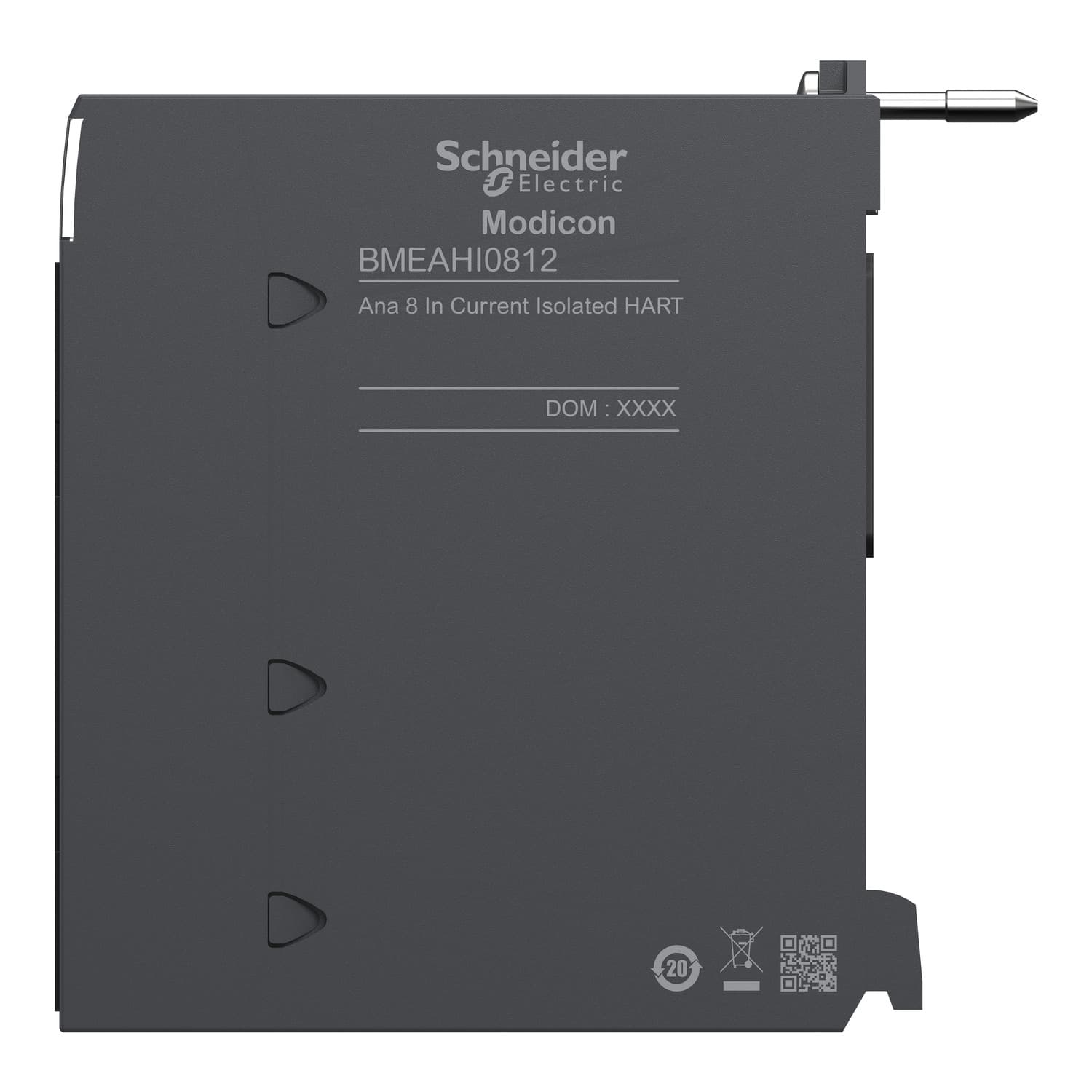

Schneider Electric analog input module. analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA.
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog input module |
| Application specific I/O | HART |
| Product compatibility | BMEP58... processor · BMXFTB20... terminal block · ABE7CPA31 · BMEXBP... backplane · ABE7CPA02 · ABE7CPA03 · Head module BMECRA31210 |
| Electrical connection | 20 ways terminal block · Telefast |
| Isolation between channels | Isolated |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA |
| Analogue input resolution | 15 bits + sign |
| Input impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
| Measurement error | 0.15 % of full scale 25 °C · <= 0.3 % of full scale 0...60 °C |
| Temperature drift | 50 ppm/°C |
| Isolation voltage | 1000 V DC for 60 s between channels · 1400 V DC for 60 s between channels and ground · 1400 V DC for 60 s between channels and bus |
| Checks | Broken wire detection |
| Topology | Point-to-point |
| Function available | I/O mapping |
| Product weight | 0.233 kg |
| Ambient air temperature for operation | 0…60 °C |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE · RCM · CSA · EAC · Merchant Navy · UL |
| Standards | IEC 61010-2-201 · IEC 61131-2 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.770 kg |
| Warranty (in months) | 18 |
