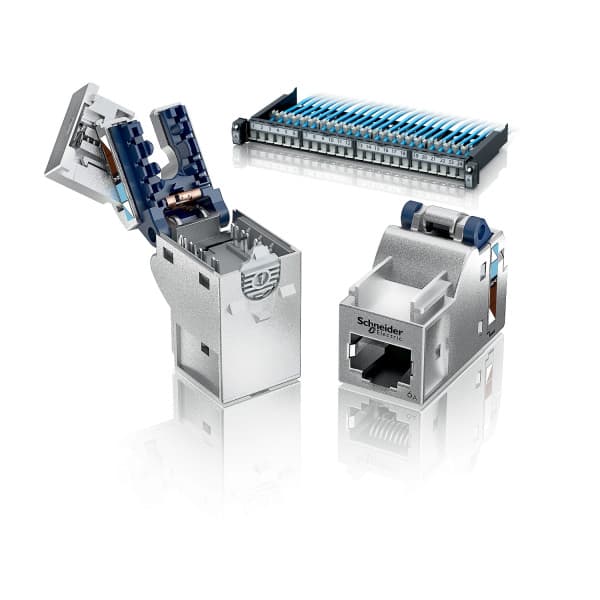

Schneider Electric Actassi, rated 1.5 A. Actassi S-One Connector RJ45 Shielded Cat 6<sub>A</sub> box of 12.
Actassi S-One Connector RJ45 Shielded Cat 6<sub>A</sub> box of 12. Genuine Schneider Electric product supplied by United Force.
| Range | Actassi |
|---|---|
| product type | RJ45 network socket |
| Device presentation | Integrated one piece design |
| Colour tint | Connector: silver (zamak) · Wire organizer: dark blue (ABS + PC) |
| Wiring Colour configuration | 568 A/B |
| Type of packing | Carton |
| Quantity per set | Set of 12 |
| [In] rated current | 1.5 A at 25 °C |
| voltage proof | 1000 V AC/DC peak, between contacts · 1500 V AC/DC peak, between contacts and shield |
| Contact resistance | 20 mOhm |
| Insulation resistance | Initial insulation resistance: >= 500 MOhm at 100 V DC |
| AWG gauge | 24 AWG...23 AWG |
| durability | 750 cycles |
| Coupling attenuation | >= 45 dB at 30…100 MHz · >= 85 - 20 x log(f) dB at 100…1000 MHz |
| contact pins | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Shield Type | Metallic: 360° self adjusting + drain wire contact · Integrated short circuit barrier |
| Pulling force | 50 N during 60 s |
| Transfer impedance | <= 0.1 Ohm at 1 MHz · <= 0.2 Ohm at 10 MHz · <= 1.6 Ohm at 80 MHz |
| Transverse conversion loss | >= 50 dB · >= 68 - 20 x log(f) dB at 1…500000 kHz |
| Tool type | Without tool |
| Cable outer diameter | 0.0009…0.0014 m · 0.9…1.4 mm |
| compatible LAN cable types | STP |
| Communication network category | 6A |
| supported applications | 10GBASE-T |
| protocols | VoIP (Voice IP) · PoE+ (Power over Ethernet) · 4PPoE 100W (Power over Ethernet) |
| Transmission frequency | 0…500 MHz |
| Type of footprint | S-One |
| Height | 28 mm · 0.03 m |
| Length | 35 mm · 0.035 m |
| Width | 18 mm · 0.02 m |
| Targeted region | Europe · Asia Pacific. · North America. |
| operational temperature range | -40…70 °C · -40…70 °C |
| climatic category | 40/070/21 (21 days) |
| Flame retardance | UL94-V0 |
| Standards | ANSI/TIA-568-C.2 · IEC 60603-7-5 · ISO/IEC 11801:2011 Ed.2.2 · UL 1863 · IEC 60512-99-002 |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 4.200 cm |
| Package 2 Width | 8.200 cm |
| Package 2 Length | 18.200 cm |
| Package 2 Weight | 416.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
