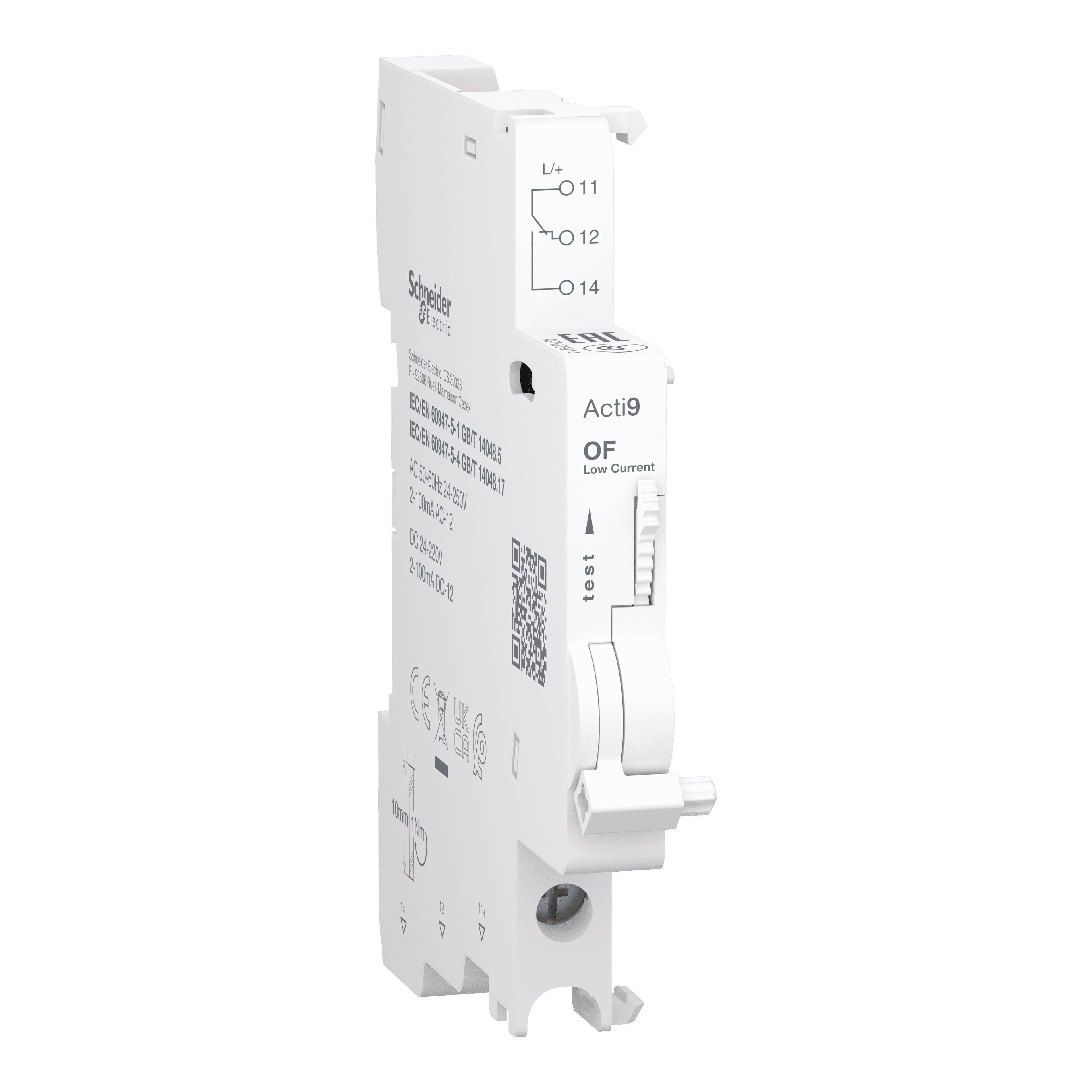

Schneider Electric oc contact. Auxiliary contact, Acti9 A9N, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection.
Auxiliary contact, Acti9 A9N, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection. Genuine Schneider Electric product supplied by United Force.
| range of product | Acti9 |
|---|---|
| Product or component type | OC contact |
| Device short name | OF |
| Signal contacts composition | 1 C/O |
| [In] rated current | 2…100 mA at 24...240 V, AC 50/60 Hz · 2…100 mA at 24 V, DC · 2…100 mA at 48 V, DC · 2…100 mA at 60 V, DC · 2…100 mA at 130 V, DC · 2…100 mA at 220 V, DC |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 · EN/IEC 60947-5-4 · GB/T 14048.5 · GB/T 14048.17 |
| Product certifications | CE · UKCA |
| Quality labels | EAC · CCC |
| Range compatibility | Acti9 C120 · Acti9 C60H-DC · Acti9 SW60-DC · Acti9 C60PV-DC · Acti9 xC60 |
| Operating mode | Daisy chain up to 100 devices |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting mode | Clip-on |
| Mounting location | Left side of circuit-breaker |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 85.3 mm |
| Width | 9 mm |
| Depth | 68 mm |
| Product weight | 30 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² - rigid · Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible · Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m bottom |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 23.500 cm |
| Package 2 Weight | 514.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.779 kg |
| Warranty (in months) | 18 |
