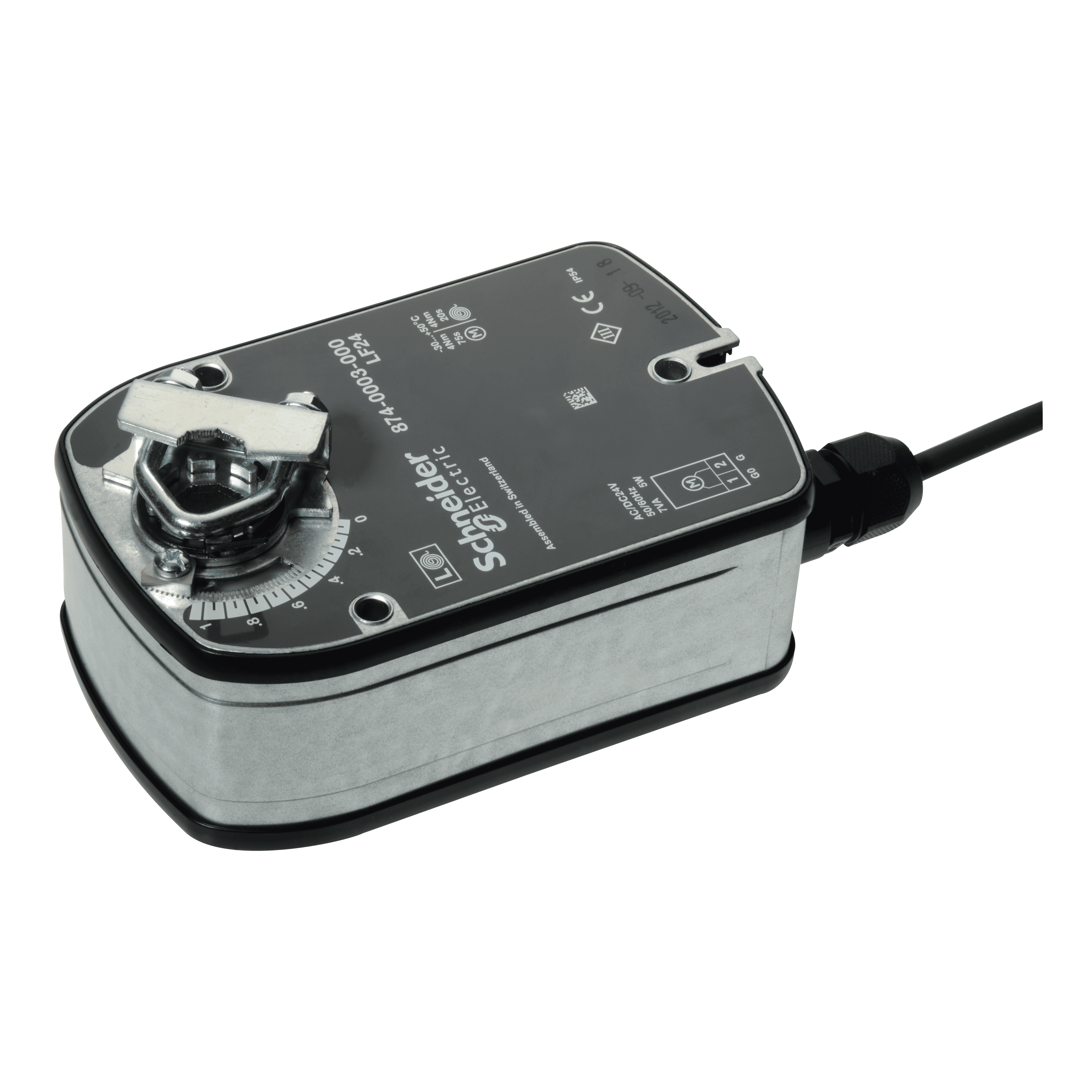

Schneider Electric actuator. LF24 Electric Damper Actuator, 2-Position, Spring Return, 24Vac/dc, 1m Cable, 4Nm, IP54.
LF24 Electric Damper Actuator, 2-Position, Spring Return, 24Vac/dc, 1m Cable, 4Nm, IP54.. Genuine Schneider Electric product supplied by United Force.
| Product or component type | Actuator |
|---|---|
| Actuator type | Electric |
| Actuator product series | LF |
| Actuator model | LF24 |
| Product destination | dampers |
| Actuator | Rotary |
| Control type | Manual override with 5/32 allen wrench |
| rated supply voltage | 24 V AC/DC |
| Transformer rated power in VA | 7 VA |
| Power consumption in W | 5 W |
| Hold-in power consumption in W | 2.5 W |
| Hold-in power consumption in VA | 7 VA AC |
| Control signal | 2-position (on/off) |
| Power loss return | Spring return |
| Stroke auto calibration | False |
| Electrical insulation class | Class III |
| Tightening torque | 35 lb.in · 4 N.m |
| Position indicator | Stroke indicator on bracket |
| Lead length | 1 m |
| Spring return timing | 20 s |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 37...100° |
| Stroke running time | 150 s |
| Stroke running time noload extend | 40 s |
| Stroke running time noload retract | 40 s |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe · Asia Pacific. · Australia. |
| Warranty (in months) | 18 |
