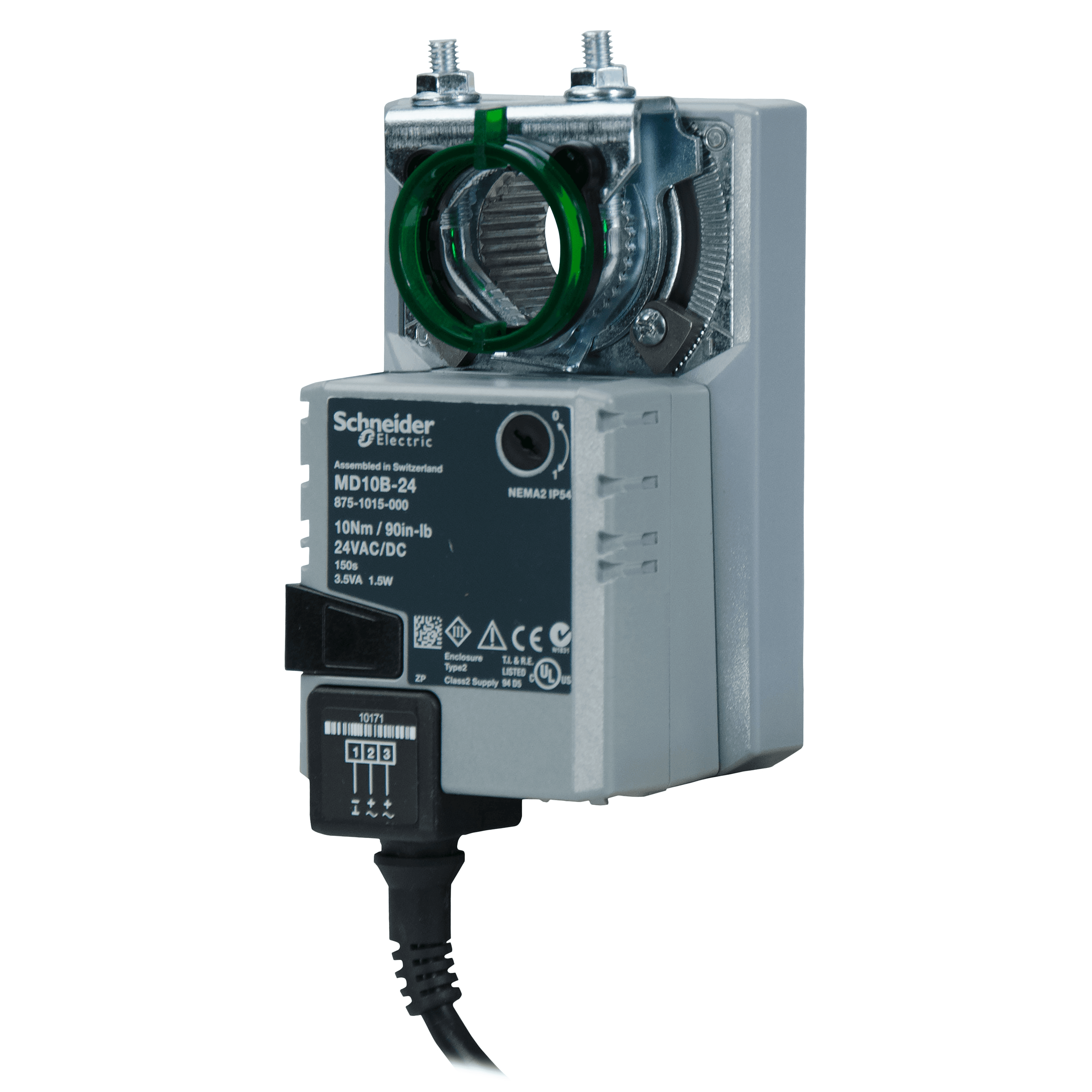

Schneider Electric actuator. MD10B Damper Actuator, 2-Position, Non-Spring Return, 24Vac/Vdc, 1m Cable, 10Nm, IP54.
MD10B Damper Actuator, 2-Position, Non-Spring Return, 24Vac/Vdc, 1m Cable, 10Nm, IP54. Genuine Schneider Electric product supplied by United Force.
| Product or component type | Actuator |
|---|---|
| Actuator type | Electric |
| Actuator product series | MD |
| Actuator model | MD10B-24 |
| Product destination | dampers |
| Actuator | Rotary |
| Control type | Automatic reset |
| rated supply voltage | 24 V AC/DC |
| Transformer rated power in VA | 3.5 VA |
| Power consumption in W | 1.5 W |
| Power consumption in VA | 1.5 VA AC |
| Hold-in power consumption in W | 0.2 W |
| Hold-in power consumption in VA | 3.5 VA AC |
| Control signal | 2-position (on/off) |
| Power loss return | Non-spring return |
| Stroke auto calibration | False |
| Electrical insulation class | Class III |
| Tightening torque | 88 lb.in · 10 N.m |
| Position indicator | Visual indicator with position ring |
| Lead length | 1 m |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
| Stroke running time | 150 s |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe · Asia Pacific. · Australia. |
| Warranty (in months) | 18 |
