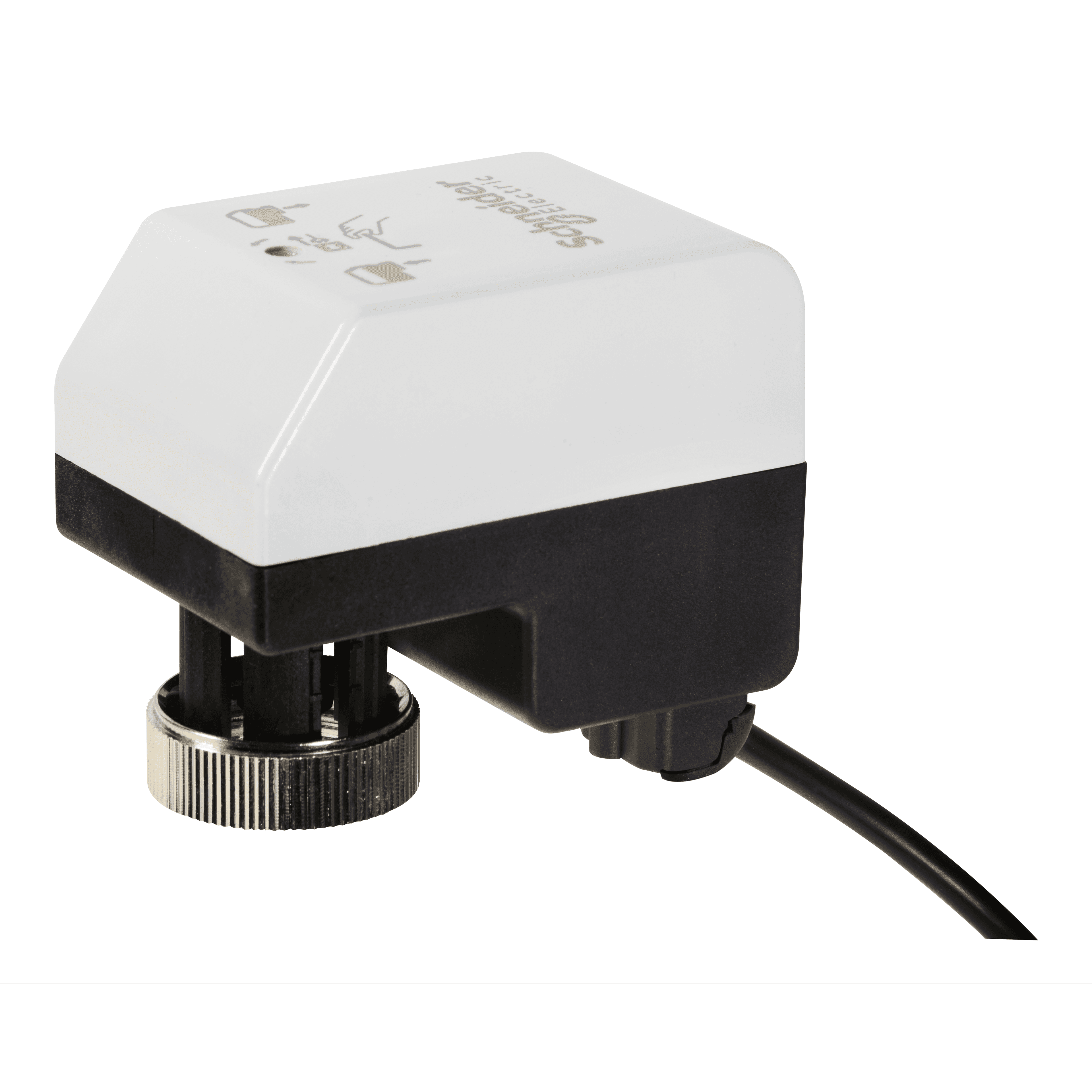

Schneider Electric actuator. MZ20B Electric Zone Valve Actuator, 3-Wire Floating, Non-Spring Return, 24Vac, 200N, IP43.
MZ20B Electric Zone Valve Actuator, 3-Wire Floating, Non-Spring Return, 24Vac, 200N, IP43. Genuine Schneider Electric product supplied by United Force.
| Product or component type | Actuator |
|---|---|
| Actuator type | Electric |
| Actuator product series | MZ20 |
| Actuator model | MZ20 |
| Product destination | zone valves |
| Hold-in power consumption in VA | 0.7 VA AC |
| Power loss return | Non-spring return |
| Control signal | 3-point floating |
| Targeted region | Europe · Asia Pacific. · Australia. |
| Actuator | Linear |
| Control type | Automatic reset |
| rated supply voltage | 24 V AC |
| Stroke length | 5.5 mm |
| Stroke auto calibration | False |
| Force N | 200 N |
| Force lbf | 45 lbf |
| Position indicator | Stem position cut out on yoke |
| Lead length | 1.5 m |
| Connection valve | Coupling ring M30 x 1.5 |
| Stroke running time | 117 s |
| Stroke running time noload extend | 98 s |
| IP degree of protection | IP43 |
| Ambient air temperature for operation | -5…55 °C |
| Relative humidity | 5…95 % non-condensing |
| Ambient air temperature for storage | -25…65 °C |
| Warranty (in months) | 18 |
