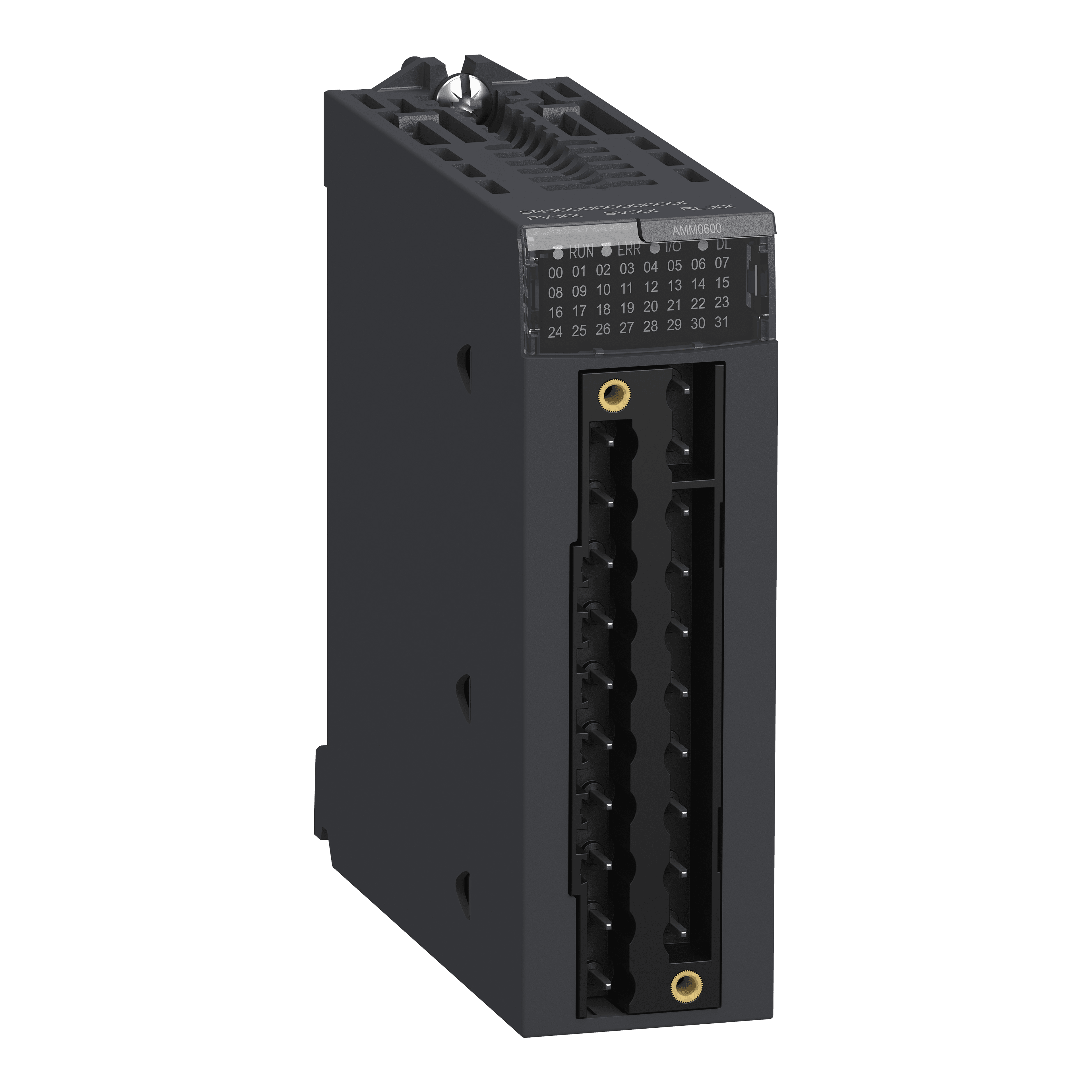

Schneider Electric mixed analog i/o module. analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative.
analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Mixed analog I/O module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Non isolated |
| Input level | High level |
| Analogue input number | 4 |
| Analogue input type | Current 0...20 mA · Current 4...20 mA · Voltage +/- 10 V · Voltage 0...10 V · Voltage 0...5 V · Voltage 1...5 V |
| Analogue input resolution | 12 bits 0...20 mA · 12 bits 0...5 V · 12 bits 1...5 V · 12 bits 4...20 mA · 13 bits 0...10 V · 14 bits +/- 10 V |
| Permitted overload on inputs | +/- 30 mA 0...20 mA · +/- 30 mA 4...20 mA · +/- 30 V +/- 10 V · +/- 30 V 0...10 V · +/- 30 V 0...5 V · +/- 30 V 1...5 V |
| Input impedance | 250 Ohm |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | First order digital filtering by firmware |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 5 ms for 4 channels |
| Measurement error | 0.25 % of full scale 0...20 mA 25 °C output · 0.25 % of full scale 4...20 mA 25 °C output · <= 0.35 % of full scale +/- 10 V 0...60 °C input · <= 0.35 % of full scale 0...10 V 0...60 °C input · <= 0.35 % of full scale 0...5 V 0...60 °C input · <= 0.35 % of full scale 1...5 V 0...60 °C input · <= 0.5 % of full scale 0...20 mA 0...60 °C input · <= 0.5 % of full scale 4...20 mA 0...60 °C input · <= 0.6 % of full scale +/- 10 V 0...60 °C output · <= 0.6 % of full scale 0...20 mA 0...60 °C output · <= 0.6 % of full scale 4...20 mA 0...60 °C output · 0.25 % of full scale +/- 10 V 25 °C output · 0.25 % of full scale +/- 10 V 25 °C input · 0.25 % of full scale 0...10 V 25 °C input · 0.25 % of full scale 0...5 V 25 °C input · 0.25 % of full scale 1...5 V 25 °C input · 0.35 % of full scale 0...20 mA 25 °C input · 0.35 % of full scale 4...20 mA 25 °C |
| Temperature drift | 100 ppm/°C +/- 10 V output · 100 ppm/°C 0...20 mA output · 100 ppm/°C 4...20 mA output · 30 ppm/°C +/- 10 V input · 30 ppm/°C 0...10 V input · 30 ppm/°C 0...5 V input · 30 ppm/°C 1...5 V input · 50 ppm/°C 0...20 mA input · 50 ppm/°C 4...20 mA input |
| Recalibration | Factory calibrated on outputs · Internal on inputs |
| Minimum crosstalk attenuation | 70 dB |
| Common mode rejection | 80 dB |
| Isolation voltage | 1400 V DC between channels and ground · 1400 V DC between channels and bus · 750 V DC between group of I/O channels |
| Output level | High level |
| Analogue output number | 2 |
| Analogue output type | Current: 0...20 mA · Current: 4...20 mA · Voltage: +/- 10 V |
| Analogue output resolution | 11 bits, 0...20 mA · 11 bits, 4...20 mA · 12 bits, +/- 10 V |
| Conversion time | <= 2 ms |
| Maximum conversion value | +/- 11.25 V +/- 10 V output · +/- 11.25 V +/- 10 V input · 0...30 mA 0...20 mA input · 0...30 mA 4...20 mA input · +/- 11.25 V 0...10 V input · +/- 11.25 V 0...5 V input · +/- 11.25 V 1...5 V input · 0...24 mA 0...20 mA output · 0...24 mA 4...20 mA output |
| Fallback mode | Predefined · Configurable |
| MTBF reliability | 1400000 H |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN · 1 LED per channel (green) channel diagnostic · 1 LED (red) ERR · 1 LED (red) I/O |
| Product weight | 0.155 kg |
| Power consumption in W | 2.6 W 24 V DC typical · 3.2 W 24 V DC maximum · 0.35 W 3.3 V DC typical · 0.48 W 3.3 V DC maximum |
| Current consumption | 240 mA at 3.3 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE · RCM · CSA · EAC · Merchant Navy · UL |
| Standards | IEC 61010-2-201 · IEC 61131-2 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
