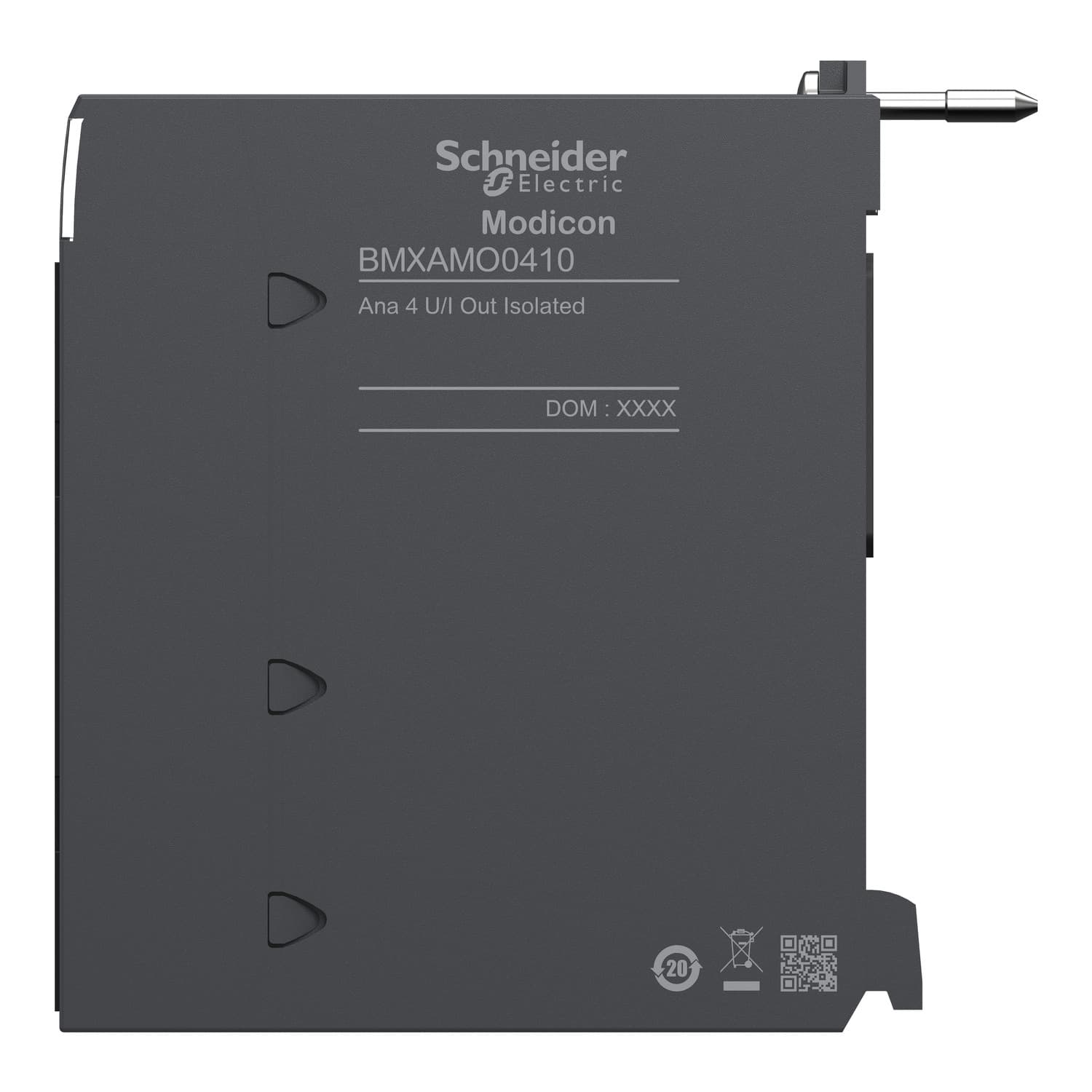

Schneider Electric analog output module. analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative.
analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog output module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Measurement error | <= 0.2 % of full scale 0...60 °C · 0.1 % of full scale 25 °C |
| Temperature drift | 45 ppm/°C +/- 10 V · 45 ppm/°C 0...20 mA · 45 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 100 dB |
| Isolation voltage | 1400 V DC between channels and ground · 1400 V DC between channels and bus · 750 V DC between channels |
| Detection type | Open circuit 0...20 mA · Open circuit 4...20 mA · Short circuit +/- 10 V |
| Load impedance ohmic | >= 1000 Ohm +/- 10 V · <= 500 Ohm 0...20 mA · <= 500 Ohm 4...20 mA |
| Output level | High level |
| Analogue output number | 4 |
| Analogue output type | Current: 0...20 mA · Current: 4...20 mA · Voltage: +/- 10 V |
| Analogue output resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion time | <= 1 ms |
| Maximum conversion value | 0...21 mA 0...20 mA · 0...21 mA 4...20 mA · +/- 10.5 V +/- 10 V |
| Fallback mode | Configurable · Predefined |
| MTBF reliability | 1000000 H |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN · 1 LED per channel (green) channel diagnostic · 1 LED (red) ERR · 1 LED (red) I/O |
| Product weight | 0.15 kg |
| Power consumption in W | 3 W 24 V DC typical · 3.6 W 24 V DC maximum · 0.45 W 3.3 V DC typical · 0.51 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC · 140 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE · RCM · CSA · EAC · Merchant Navy · UL |
| Standards | IEC 61010-2-201 · IEC 61131-2 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.480 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
