Busbar Insulators
Busbar Insulators: Ensuring Safe and Reliable Electrical Isolation in Panels
At United Force Trading Company, a trusted Schneider Retail Partner, Busbar Insulators are essential components designed to electrically isolate busbars within switchgear, distribution boards, and control panels. Schneider’s insulators prevent short circuits, arc faults, and accidental contact with live conductors, ensuring compliance with safety standards and enhancing the reliability of electrical systems.
What are Busbar Insulators?
Busbar Insulators are non-conductive supports or spacers made from high-dielectric materials. They secure busbars (conductive metal bars) in place while isolating them from each other and the panel structure. These components are critical for:
Preventing electrical faults caused by unintended contact or environmental contaminants.
Maintaining proper creepage and clearance distances as per IEC 61439 and UL 891 standards.
Enhancing system longevity by resisting mechanical stress, heat, and chemical exposure.

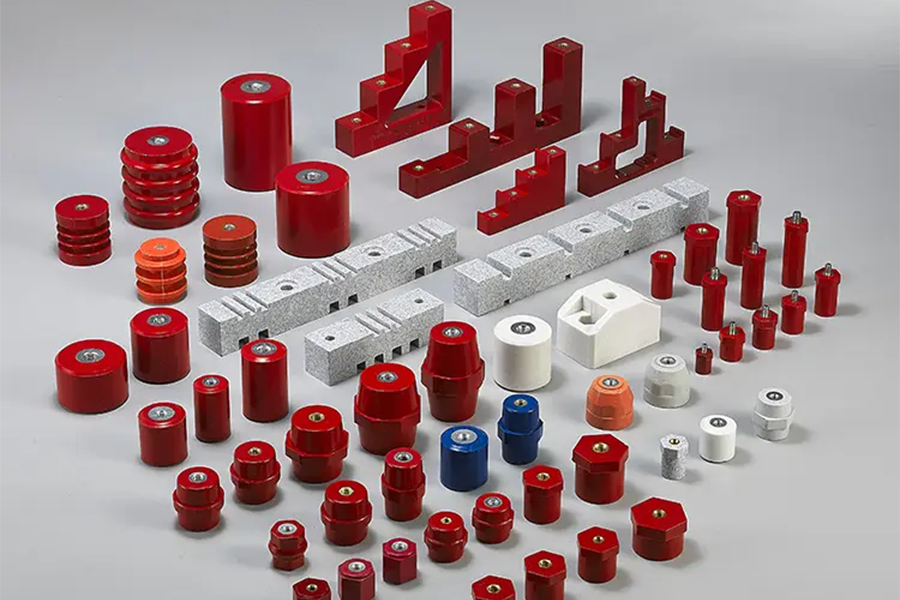

Types of Schneider Busbar Insulators
Spacer Insulators:
Function: Maintain distance between parallel busbars.
Applications: Low-voltage distribution panels and motor control centers (MCCs).
Support Insulators:
Function: Anchor busbars to the panel structure.
Applications: Medium-voltage switchgear and transformer connections.
Barrier Insulators:
Function: Block accidental contact with live busbars.
Applications: Industrial control panels and data center power distribution.
Custom Insulators:
Function: Tailored shapes/sizes for unique panel configurations.
Applications: Renewable energy systems, marine, and mining equipment.
Key Features of Schneider Busbar Insulators
High Dielectric Strength: Withstand voltages up to 1,000V+ to prevent breakdowns.
Thermal Resistance: Operate reliably in temperatures ranging from -40°C to +120°C.
Durable Materials:
Thermoplastics: Lightweight, cost-effective, and resistant to corrosion.
Fiber-Reinforced Composites: High mechanical strength for heavy-duty applications.
Ceramics: Exceptional heat and arc resistance for high-voltage systems.
Modular Design: Compatible with Schneider’s BlokSeT, Okken, and Prisma iPM switchgear systems.
Easy Installation: Snap-on, screw-mount, or clip-in configurations for quick assembly.
Compliance: Meet IEC 60670, UL 94V-0 (flame-retardant), and RoHS standards.
Applications Across Industries
Industrial Automation: Isolate busbars in PLC panels and robotic control systems.
Energy Distribution: Secure busbars in LV/MV switchgear and circuit breaker panels.
Renewable Energy: Protect solar inverter and battery storage systems.
Commercial Buildings: Ensure safety in main distribution boards (MDBs) and subpanels.
Transportation: Isolate busbars in railway traction systems and EV charging stations.
Why Schneider Busbar Insulators?
Safety First: Prevent arc flashes and electrical faults in critical systems.
Interoperability: Designed for seamless integration with Schneider’s panel components.
Sustainabilitay: Recyclable materials and energy-efficient designs.
Global Standards: Certified for use in Schneider’s EcoStruxure-ready panels.
Key Benefits
Enhanced Safety: Mitigate risks of electrical shock and short circuits.
System Reliability: Reduce downtime caused by insulation failures.
Cost Efficiency: Durable materials lower replacement and maintenance costs.
Compliance: Meet international electrical safety and environmental regulations.
Why Partner with United Force Trading Company?
Schneider-Certified Quality: Genuine insulators backed by Schneider warranties and technical support.
Expert Guidance: Assistance in selecting insulators for voltage, current, and environmental needs.
Fast Delivery: Stock availability for urgent project timelines.
End-to-End Support: From design consultation to installation and compliance audits.
Secure Your Electrical Systems with Schneider Busbar Insulators!
Whether isolating busbars in industrial switchgear or safeguarding data center power distribution, United Force Trading Company provides Schneider’s premium insulators to ensure safety, efficiency, and compliance.
At United Force Trading Company, we proudly serve as an authorized Schneider Retail Partner, offering trusted power and control solutions .
