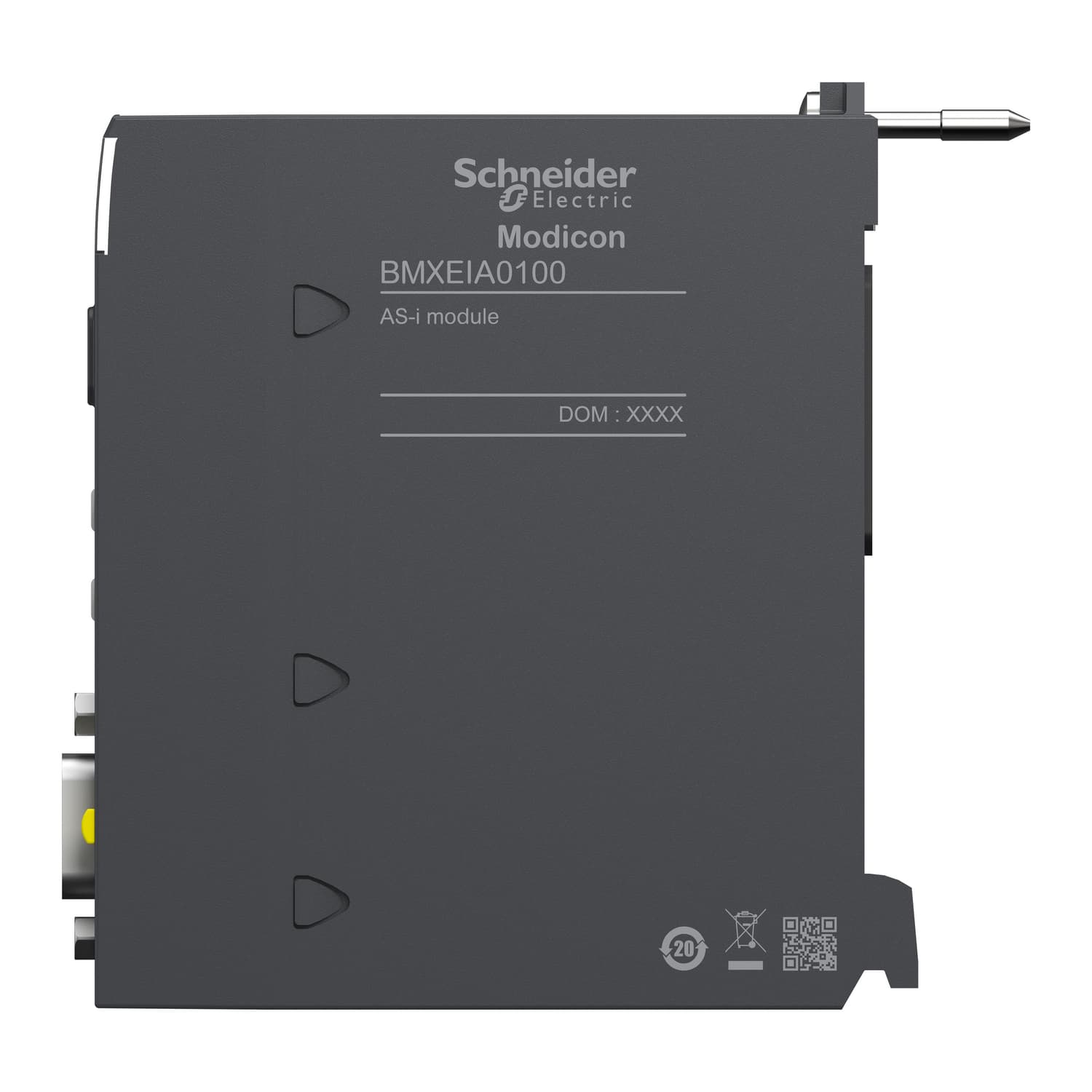

Schneider Electric master module. master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO.
master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Master module |
| Actuator sensor interface profile [AS-i] | M4 master profile · S7.3 slave profile · S7.A.7 slave profile · S7.A.A slave profile · S7.A.8 slave profile · S7.A.9 slave profile · S6.0.X slave profile |
| Addressing | Standard and extended |
| Cycle time | 5 ms for 31 · 10 ms for 62 |
| Electrical connection | 1 male connector SUB-D, 3 pins |
| Number of server device(s) | 124 server device(s) for discrete inputs and outputs - standard · 124 server device(s) for analog inputs and outputs - standard · 496 server device(s) for discrete inputs and outputs - extended · 124 server device(s) for analog inputs and outputs - extended |
| Maximum cable distance between devices | 100 m · 200 m line extension · 300 m 2 repeaters · 500 m 2 repeaters and the master at the middle |
| Local signalling | 1 LED (green) for module active (RUN) · 1 LED (red) for module error (ERR) · 1 LED (green) for displays the group of 31 slaves (A/B) · 1 LED (red) for I/O module fault (I/O) · 32 LEDs for diagnostics of the AS-Interface and each slave · 1 LED (green) for ASI power · 1 LED (red) for fault |
| Current consumption | 160 mA at 3.3 V DC |
| Module format | Standard |
| Product weight | 0.34 kg |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · IEC 61000-6-5, interface type 1 and type 2 · IEC 61850-3, location G · IEC 60079-0 |
| Environmental characteristic | Hazardous location |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP20 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.2 kg |
| Warranty (in months) | 18 |
