Schneider Electric double oc or fault contact, rated 6 A. Auxiliary contact, Acti9 A9N, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection.

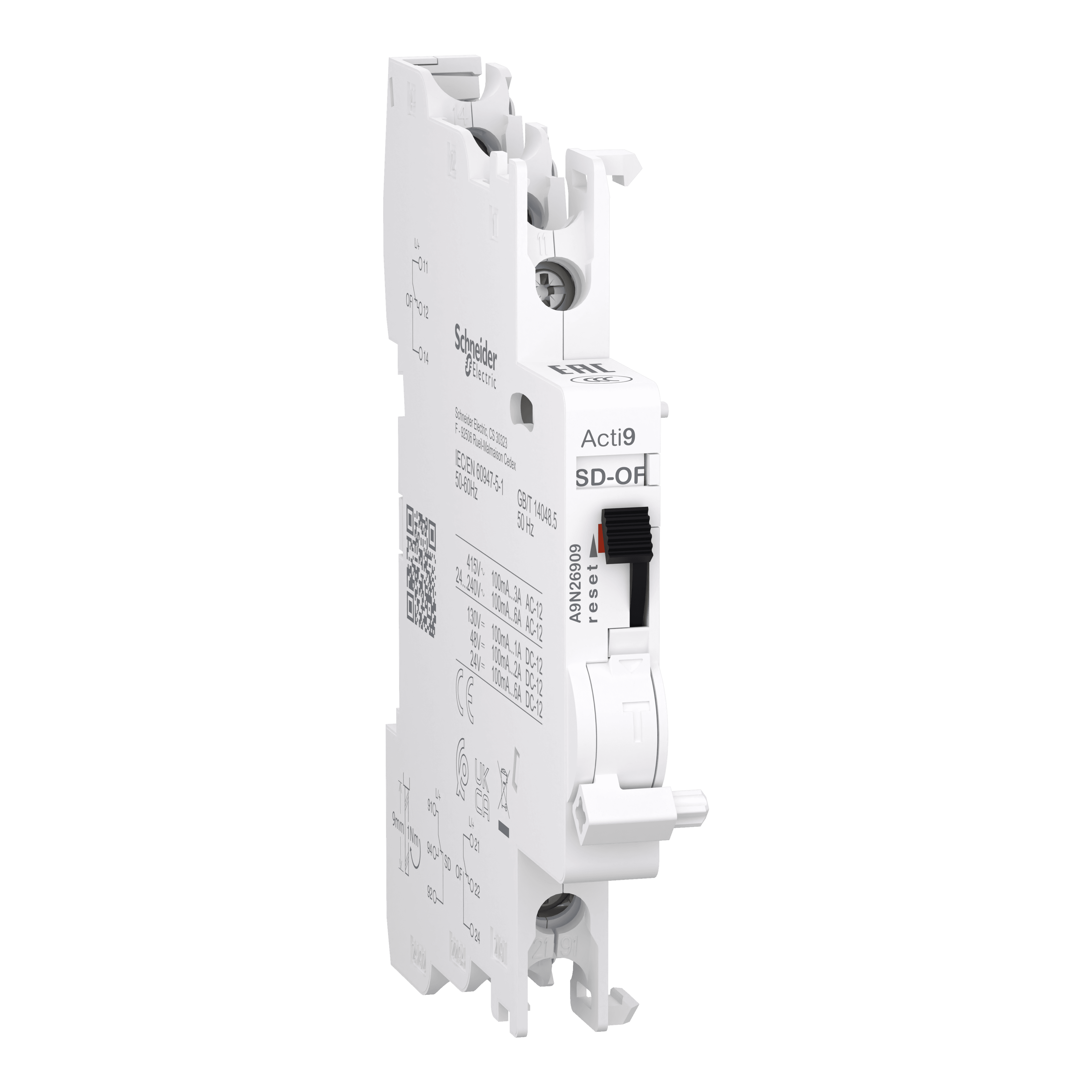

Auxiliary contact, Acti9 A9N, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| range of product | Acti9 |
|---|
| Product or component type | Double OC or fault contact |
|---|
| Device short name | OF and OF or OF and SD |
|---|
| Signal contacts composition | 2 C/O |
|---|
| [In] rated current | 0.1…6 A at 24...250 V, AC 50/60 Hz · 0.1…6 A at 24...240 V, AC 50/60 Hz · 0.1…3 A at 415 V, AC 50/60 Hz · 0.1…6 A at 24 V, DC · 0.1…2 A at 48 V, DC · 0.1…1.5 A at 60 V, DC · 0.1…1 A at 130 V, DC |
|---|
| 9 mm pitches | 1 |
|---|
| Standards | EN/IEC 60947-5-1 · GB/T 14048.5 |
|---|
| Product certifications | CE · UKCA |
|---|
| Quality labels | EAC · CCC |
|---|
| Range compatibility | Acti9 C120 · Acti9 C60H-DC · Acti9 SW60-DC · Acti9 C60PV-DC · Acti9 xC60 |
|---|
| [Ui] rated insulation voltage | 500 V |
|---|
| [Uimp] rated impulse withstand voltage | 4 kV |
|---|
| Local signalling | Mechanical indicator |
|---|
| Mounting mode | Clip-on |
|---|
| Mounting location | Left side of circuit-breaker |
|---|
| Mounting support | DIN rail |
|---|
| Comb busbar and distribution block compatibility | NO |
|---|
| Height | 90 mm |
|---|
| Width | 9 mm |
|---|
| Depth | 68 mm |
|---|
| Product weight | 38 g |
|---|
| Colour | White |
|---|
| Connections - terminals | Screw clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - rigid · Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible · Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule |
|---|
| Wire stripping length | 9 mm |
|---|
| Tightening torque | 1 N.m top and bottom |
|---|
| IP degree of protection | IP20 |
|---|
| Pollution degree | 3 |
|---|
| Tropicalisation | 2 |
|---|
| Ambient air temperature for operation | -25…50 °C |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Unit Type of Package 2 | BB1 |
|---|
| Number of Units in Package 2 | 12 |
|---|
| Package 2 Height | 8.500 cm |
|---|
| Package 2 Width | 10.000 cm |
|---|
| Package 2 Length | 23.500 cm |
|---|
| Package 2 Weight | 597.000 g |
|---|
| Unit Type of Package 3 | S03 |
|---|
| Number of Units in Package 3 | 108 |
|---|
| Package 3 Height | 30.000 cm |
|---|
| Package 3 Width | 30.000 cm |
|---|
| Package 3 Length | 40.000 cm |
|---|
| Package 3 Weight | 5.915 kg |
|---|
| Warranty (in months) | 18 |
|---|
