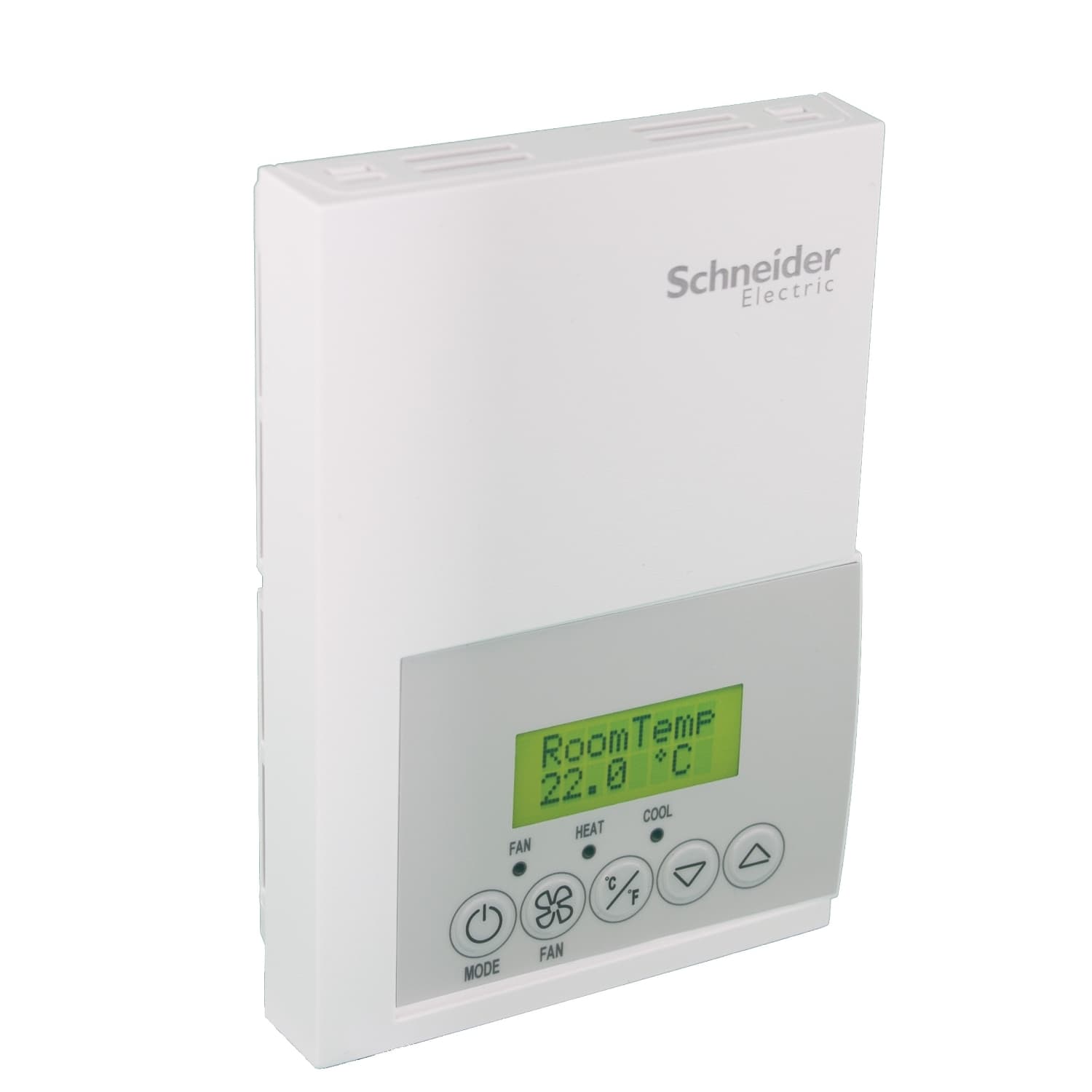

Schneider Electric SE7000 Series room controller. Low-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, Analog 0-10 Vdc, Hotel/Lodging.
Low-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, Analog 0-10 Vdc, Hotel/Lodging. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Device application | Low voltage fan coil |
|---|
| Product weight | 0.34 kg |
|---|
| Product or component type | Room controller |
|---|
| Product name | SE7000 Series |
|---|
| Device short name | SE7305 |
|---|
| Height | 124.97 mm |
|---|
| AWG gauge | 22 AWG...18 AWG |
|---|
| Directives | 89/336/EEC - electromagnetic compatibility |
|---|
| Width | 86.87 mm |
|---|
| Market segment | Lodging/hotel |
|---|
| Ambient air temperature for storage | -30…50 °C |
|---|
| Depth | 29.97 mm |
|---|
| Ambient air temperature for operation | -0…50 °C |
|---|
| Measurement accuracy | Humidity: +/- 5 %, 20...80 % RH (non-condensing) · Temperature: +/- 0.9 °F, (at 70 °F typically calibrated) |
|---|
| Product certifications | CE · C-Tick conforming to AS/NZS CISPR 22 · FCC conforming to CFR 47 part 15 class A · UL listed file E27734 CCN XPAX · UL listed file E27734 CCN XPAX7 |
|---|
| Information displayed | Temperature: - 40...122 °F |
|---|
| Network frequency | 60 Hz · 50 Hz |
|---|
| Communication port protocol | BACnet MS/TP |
|---|
| Temperature setting range | 4…32 °C heating · -17 °C per step · 12…38 °C cooling |
|---|
| Humidity setting range | Humidification: 10…90 % · Dehumidification: 15…95 % |
|---|
| Calibration certificate | 1 pt |
|---|
| Output type | 2 xuniversal · 1 xanalog |
|---|
| Output voltage | 0...10 V DC for universal output · 30 V AC for universal output |
|---|
| Input type | 1.0 x dry contact |
|---|
| Output current | <= 5 mA universal output |
|---|
| Standards | UL 873 · ICES-003 · FCC part 15 Subpart B · CSA C22.2 No 24 |
|---|
| Relative humidity | 0…95 % RH, non-condensing |
|---|
| [Us] rated supply voltage | 10...30 V AC 50/60 Hz |
|---|
| Sensor type | Single point calibrated bulk polymer RH sensor humidity · 10 kOhm T2 NTC thermistor temperature |
|---|
| Range | EcoStruxure Building Expert |
|---|
| Economizer | No |
|---|
| Humidity control | Yes |
|---|
| PIR cover | No |
|---|
| Scheduling | No |
|---|
| Number of steps | 3 |
|---|
| Device presentation | Without cover |
|---|
| Rated operational power in VA | 2 VA |
|---|
| Internal resistance | >= 2 kOhm |
|---|
| Connections - terminals | Screw terminal |
|---|
| Range compatibility | EcoStruxure Building Expert communication card · EcoStruxure Building Expert sensor · EcoStruxure Building Expert temperature sensor · EcoStruxure Building Expert relay · EcoStruxure Building Expert sensor coverplate |
|---|
| Electrical insulation class | Class II |
|---|
| Warranty (in months) | 18 |
|---|
