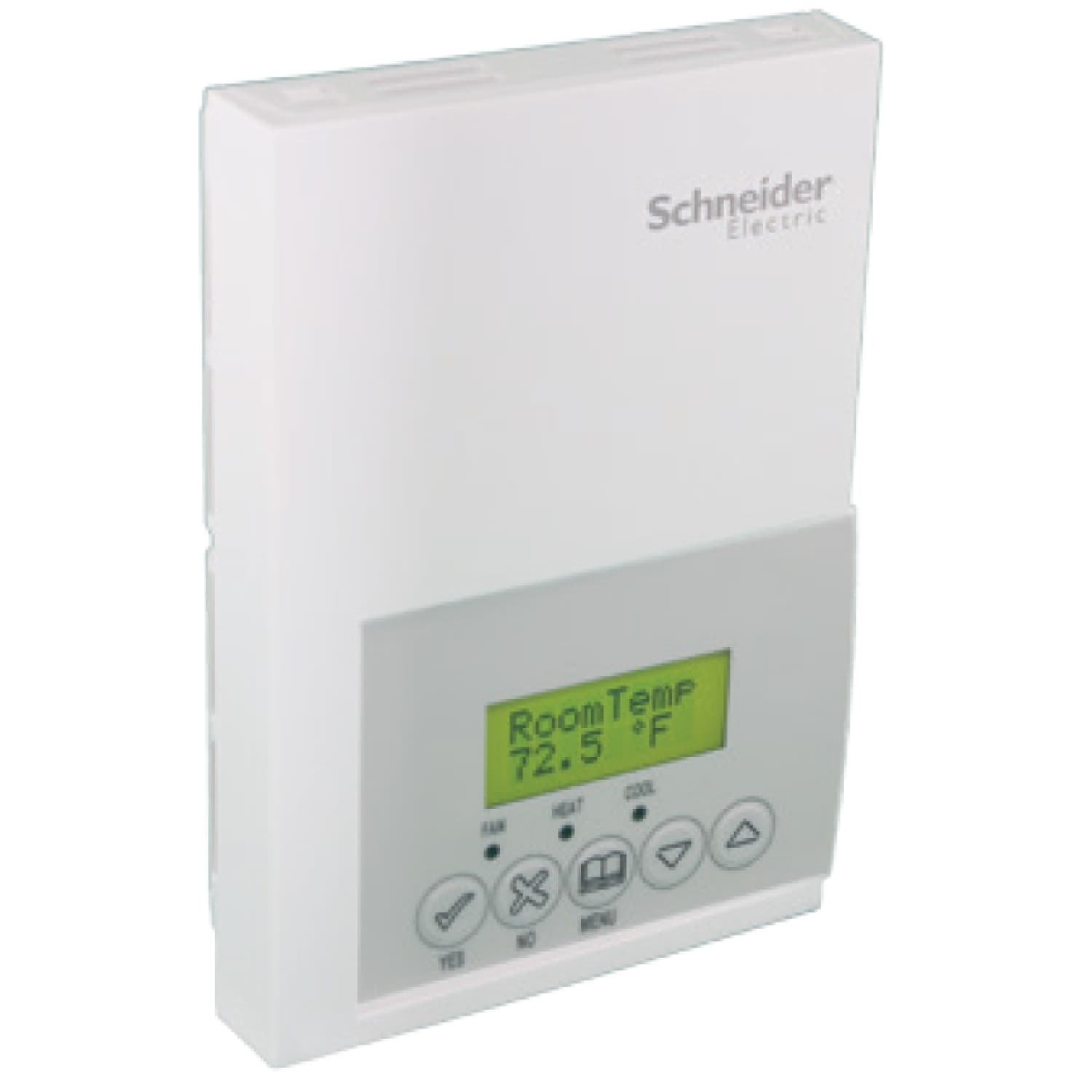

Schneider Electric SE7000 Series room controller. Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling.
Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling. Genuine Schneider Electric product supplied by United Force.
| Device application | Low voltage heat pump · Staging equipment (RTU/HP) |
|---|---|
| Product weight | 0.34 kg |
| Product or component type | Room controller |
| Product name | SE7000 Series |
| Device short name | SE7600H |
| Height | 124.97 mm |
| Product specific application | 3-stage heating · 2-stage cooling |
| AWG gauge | 22 AWG...18 AWG |
| Directives | 89/336/EEC - electromagnetic compatibility |
| Width | 86.87 mm |
| Market segment | Residential |
| Ambient air temperature for storage | -30…50 °C |
| Depth | 29.97 mm |
| Ambient air temperature for operation | -0…50 °C |
| Measurement accuracy | Temperature: +/- 0.9 °F, (at 70 °F typically calibrated) · Humidity: +/- 5 %, 20...80 % RH (non-condensing) |
| Product certifications | FCC conforming to CFR 47 part 15 class A · CE · C-Tick conforming to AS/NZS CISPR 22 · UL listed file E27734 CCN XPAX · UL listed file E27734 CCN XPAX7 |
| Information displayed | Temperature: - 40...122 °F |
| Network frequency | 60 Hz · 50 Hz |
| Communication port protocol | BACnet MS/TP |
| Temperature setting range | 4…32 °C heating · -17 °C per step · 12…38 °C cooling |
| Humidity setting range | Dehumidification: 30…95 % |
| Calibration certificate | 1 pt |
| [Us] rated supply voltage | 10...30 V AC 50/60 Hz |
| Sensor type | 10 kOhm T2 NTC thermistor · Bulk polymer |
| Standards | FCC part 15 Subpart B · UL 873 · CSA C22.2 No 24 · ICES-003 |
| Input type | 2 x dry contact |
| Output current | 1 A at 30 V digital output (maximum) · 3 A at 30 V digital output (inrush) · <= 5 mA analog output · <= 5 mA at 0...10 V analog output |
| Storage Relative Humidity | 0…95 % RH, non-condensing |
| Relative humidity | 0…95 % RH, non-condensing |
| Output voltage | 30 V AC for digital output · 0...10 V DC for analog output |
| Output type | 2 xuniversal |
| Range | EcoStruxure Building Expert |
| Economizer | No |
| Humidity control | No |
| PIR cover | No |
| Scheduling | Yes |
| Device presentation | Without cover |
| Rated operational power in VA | 2 VA |
| Connections - terminals | Screw terminal |
| Contact operation | 5 standard push-button |
| Regulation loop | For heating: adjustable P regulator by -17 °C (factory settting) · For cooling: adjustable P regulator by -17 °C (factory settting) |
| Range compatibility | EcoStruxure Building Expert communication card · EcoStruxure Building Expert sensor · EcoStruxure Building Expert temperature sensor · EcoStruxure Building Expert relay · EcoStruxure Building Expert sensor coverplate |
| Electrical insulation class | Class II |
| Warranty (in months) | 18 |
