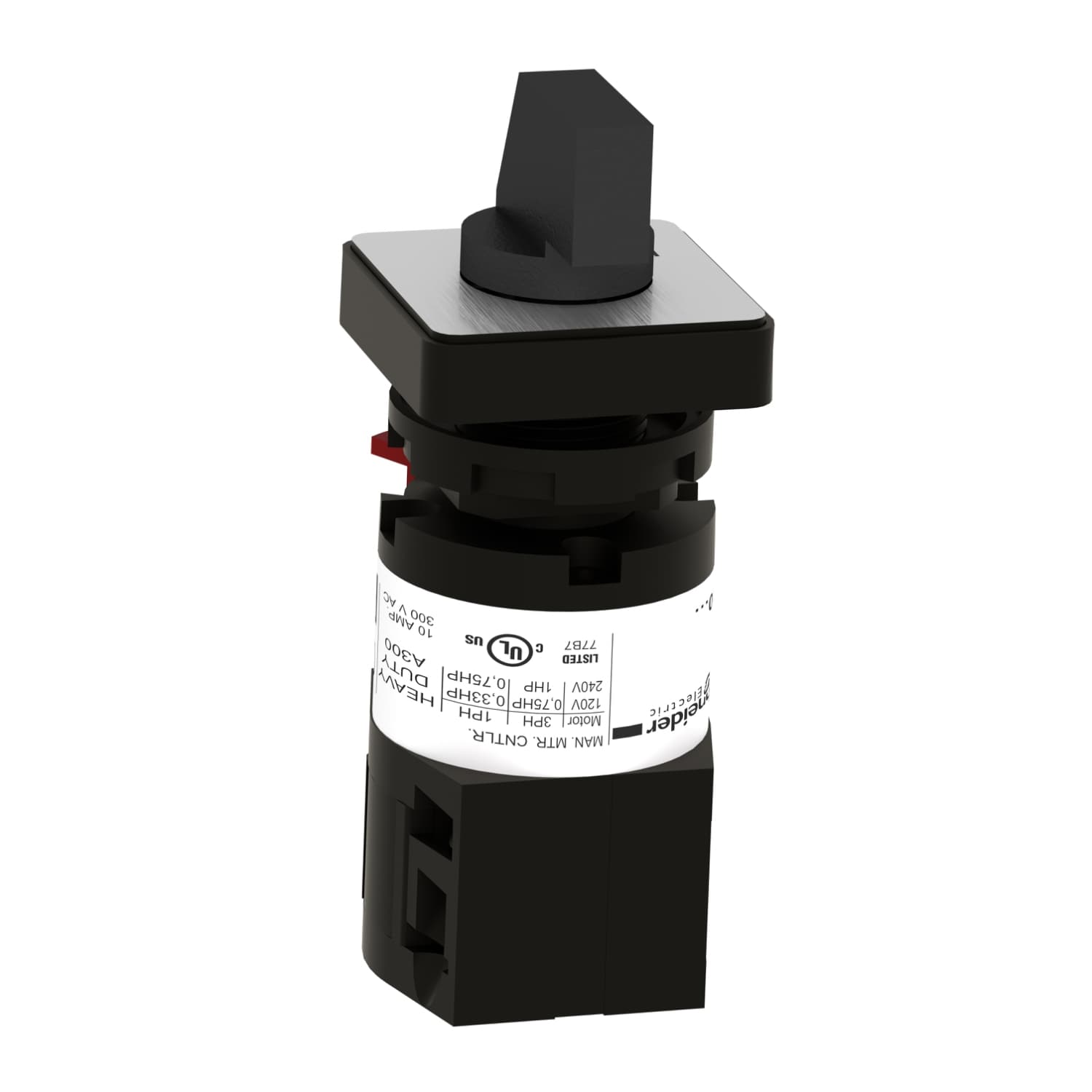

Schneider Electric complete cam switch, rated 10 A. Complete cam switch, Harmony K1, K2, 16mm or 22mm, plastic, 1 pole, 60degrees, 10A, 30x30mm, marked 0 1.
Complete cam switch, Harmony K1, K2, 16mm or 22mm, plastic, 1 pole, 60degrees, 10A, 30x30mm, marked 0 1. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony K |
|---|---|
| Product or component type | Complete cam switch |
| Component name | K10 |
| [Ith] conventional free air thermal current | 10 A |
| Product mounting | Front mounting |
| fixing mode | Ø 16 or 22 mm hole |
| Cam switch head type | With front plate 30 x 30 mm |
| Type of operator | Black handle |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic legend, 0 - 1 black marking |
| Cam switch function | Switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 1P |
| Switching positions | Right: 0° - 60° |
| IP degree of protection | Contact block: IP20 · Operating head: IP65 conforming to IEC 60529 |
| Switching angle | 60 ° |
| [Ui] rated insulation voltage | 440 V (pollution degree 3) conforming to IEC 60947-1 |
| Rated operational power in W | 370 W AC-23A, 110/120 V 1 phase · 750 W AC-23A, 220/240 V 1 phase |
| Rated power in hp | 0.33 hp at 110/120 V AC, 1 phase · 0.75 hp at 220/240 V AC, 1 phase |
| [Ie] rated operational current AC | 10 A at 400 V AC-1 · 10 A at 400 V AC-21A · 3 A at 240 V AC-15 · 6 A at 120 V AC-15 |
| [Ie] rated operational current DC | 10 A at 24 V resistive load · 0.3 A at 220 V resistive load · 0.7 A at 110 V resistive load |
| Electrical durability | 100000000 cycles |
| Short-circuit protection | 10 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Contact operation | Slow-break |
| Electrical connection | Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm² |
| Mechanical durability | 1000000 cycles |
| CAD overall width | 30 mm |
| CAD overall height | 30 mm |
| CAD overall depth | 76 mm |
| Product weight | 0.03 kg |
| Standards | CENELEC EN 50013 · IEC 60947-3 · IEC 60947-5-1 |
| Product certifications | CULus |
| Protective treatment | TC |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.530 kg |
| Warranty (in months) | 18 |
