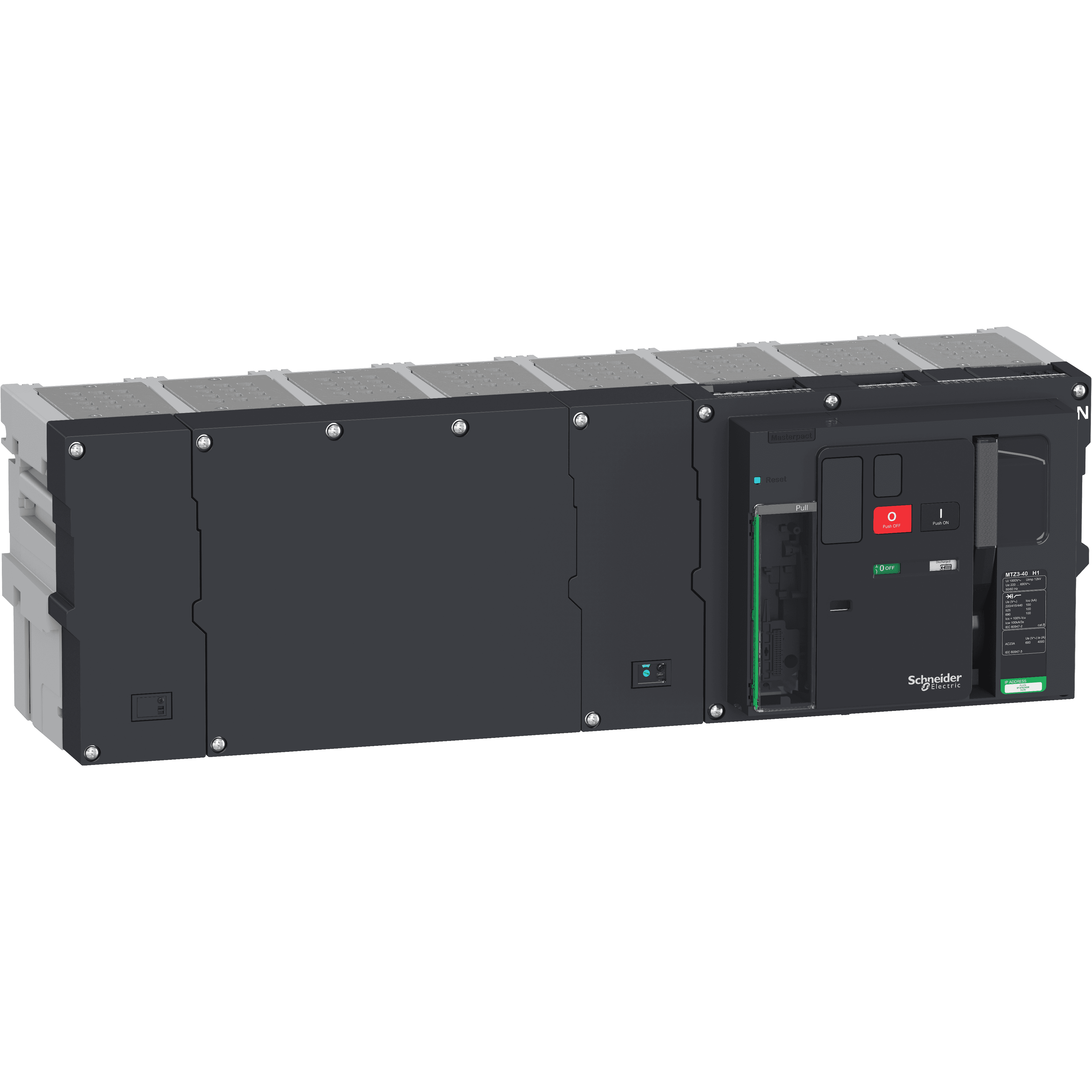

Schneider Electric MasterPact MTZ3 circuit breaker, rated 4000 A. Circuit breaker frame, MasterPact MTZ3 40H1 drawout for MicroLogic X, 4000A, 100kA/415VAC (Icu), 4P right neutral.
Circuit breaker frame, MasterPact MTZ3 40H1 drawout for MicroLogic X, 4000A, 100kA/415VAC (Icu), 4P right neutral. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | MasterPacT |
|---|
| Product name | MasterPact MTZ3 |
|---|
| Device short name | MTZ3 40 H1 |
|---|
| Product or component type | Circuit breaker |
|---|
| Device application | Power distribution protection |
|---|
| Poles description | 4P |
|---|
| Neutral position | Right |
|---|
| Control type | Without control unit |
|---|
| Product compatibility | control unit MicroLogic 2.0 X · control unit MicroLogic 5.0 X · control unit MicroLogic 6.0 X · control unit MicroLogic 7.0 X · control unit MicroLogic 2.0 Xi · control unit MicroLogic 5.0 Xi · control unit MicroLogic 6.0 Xi · control unit MicroLogic 7.0 Xi |
|---|
| [In] rated current | 4000 A at 40 °C |
|---|
| Breaking capacity code | H1 100 kA 415 V AC |
|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
|---|
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
|---|
| Selectivity category | Category B |
|---|
| Mounting mode | Drawout |
|---|
| Breaking capacity | 100 kA at 220/415 V AC 50/60 Hz · 100 kA at 440 V AC 50/60 Hz · 100 kA at 500/525 V AC 50/60 Hz · 100 kA at 660/690 V AC 50/60 Hz |
|---|
| [Ics] rated service breaking capacity | 100 kA at 220/415 V AC 50/60 Hz · 100 kA at 440 V AC 50/60 Hz · 100 kA at 500/525 V AC 50/60 Hz · 100 kA at 660/690 V AC 50/60 Hz |
|---|
| [Icw] rated short-time withstand current | 100 kA 0.5 s · 100 kA 1 s · 100 kA 3 s |
|---|
| [Icm] rated short-circuit making capacity | 220 kA 220/415 V AC at 50/60 Hz · 220 kA 440 V AC at 50/60 Hz · 220 kA 500/525 V AC at 50/60 Hz · 220 kA 660/690 V AC at 50/60 Hz |
|---|
| Sensor rating | 2000 A · 2500 A · 3200 A · 4000 A |
|---|
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
|---|
| [Uimp] rated impulse withstand voltage | 12 kV |
|---|
| Power dissipation in W | 600 W |
|---|
| Maximum breaking time | 25 ms |
|---|
| Maximum closing response time | 80 ms |
|---|
| Mounting support | Rails · Base plate |
|---|
| Upside connection | Rear |
|---|
| Downside connection | Rear |
|---|
| Connection pitch | 230 mm |
|---|
| Mechanical durability | 10000 cycles with periodic preventive maintenance |
|---|
| Electrical durability | AC-3: 6000 cycles 440/690 V AC 50/60 Hz conforming to EN/IEC 60947-3 · 1500 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 · 1500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 · AC-23A: 1500 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3 · AC-23A: 1500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
|---|
| Height | Drawout circuit breaker with chassis: 479 mm · Drawout circuit breaker without chassis: 300 mm |
|---|
| Width | Drawout circuit breaker with chassis: 1016 mm · Drawout circuit breaker without chassis: 838 mm |
|---|
| Depth | Drawout circuit breaker with chassis: 403 mm · Drawout circuit breaker without chassis: 300 mm |
|---|
| Product weight | 300 kg |
|---|
| Standards | EN/IEC 60947-1 · EN/IEC 60947-2 · EN/IEC 60947-2 Annex H · IEC 61557-12 |
|---|
| Product certifications | CE · IECEE CB Scheme |
|---|
| IP degree of protection | IP30 conforming to EN 60529 |
|---|
| Pollution degree | 3 conforming to IEC 60947-1 |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Operating altitude | 0...2000 m without derating · 2000...5000 m with derating |
|---|
| Warranty (in months) | 18 |
|---|
