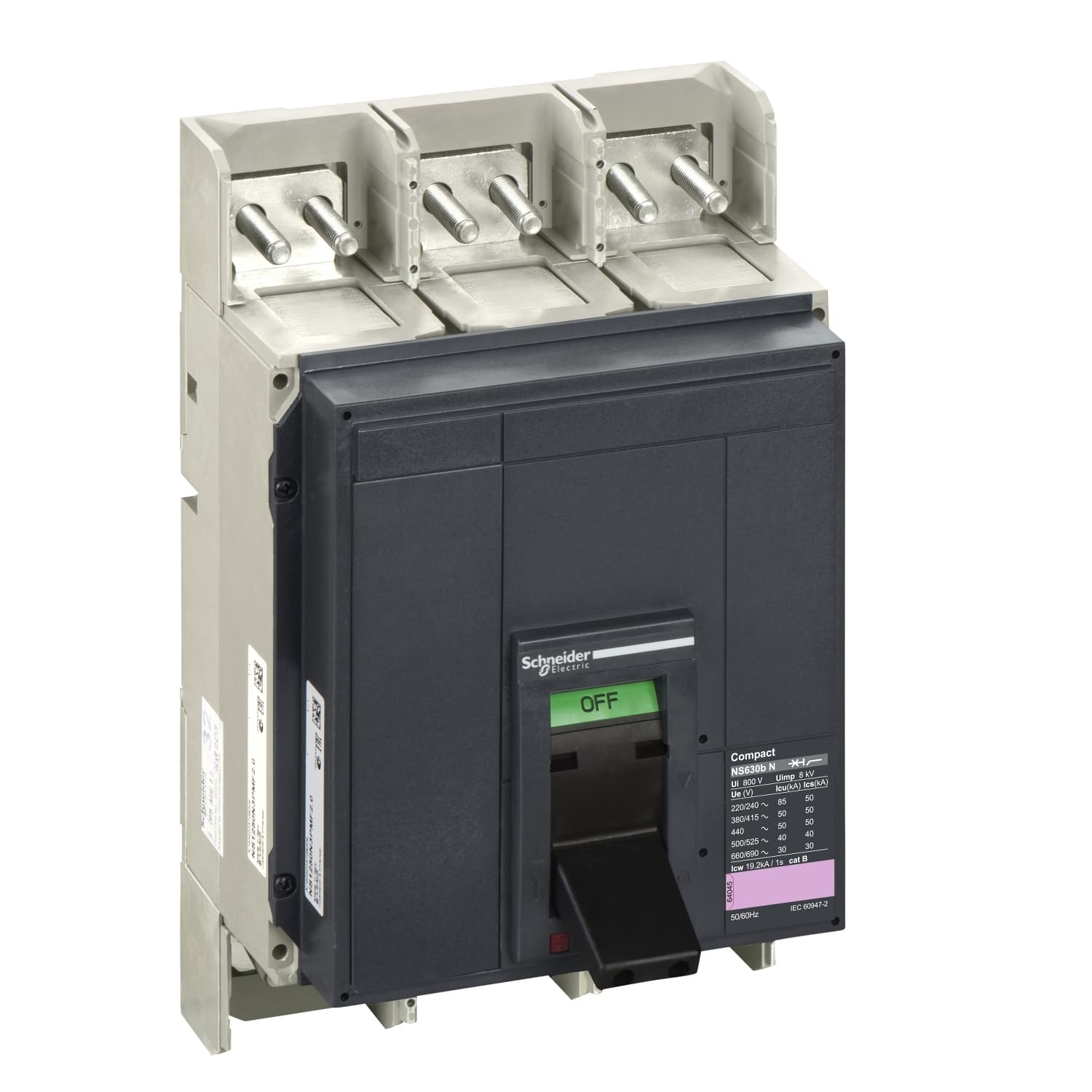

Schneider Electric ComPacT basic frame, rated 630 A. Circuit breaker frame, ComPacT NS630bL, 150kA/415VAC, 630A, fixed, electrically operated, without trip unit, 3P.
Circuit breaker frame, ComPacT NS630bL, 150kA/415VAC, 630A, fixed, electrically operated, without trip unit, 3P. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | ComPacT |
|---|
| Range of product | ComPacT NS630b...1600 new generation |
|---|
| Device short name | Compact NS630bL |
|---|
| Product or component type | Basic frame |
|---|
| Device application | Distribution |
|---|
| Number of poles | 3P |
|---|
| [In] rated current | 630 A at 50 °C |
|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
|---|
| Network type | AC |
|---|
| Network frequency | 50/60 Hz |
|---|
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
|---|
| Utilisation category | Category A |
|---|
| Breaking capacity | 150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 · 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 · 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 · 100 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|
| Breaking capacity code | L 150 kA 415 V AC |
|---|
| Control type | Electrically operated |
|---|
| Mounting mode | Fixed |
|---|
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
|---|
| [Ics] rated service breaking capacity | 150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) · 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) · 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) · 100 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) |
|---|
| Mechanical durability | 10000 cycles conforming to IEC 60947-2 |
|---|
| Electrical durability | 2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 · 3000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 · 3000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 · 4000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
|---|
| Power losses | 15 W |
|---|
| Mounting support | Backplate |
|---|
| Connection pitch | 70 mm |
|---|
| Protection type | Without protection |
|---|
| Height (H) | 224 mm |
|---|
| Width (W) | 210 mm |
|---|
| Depth (D) | 182 mm |
|---|
| Standards | IEC 60947-2 |
|---|
| Product certifications | ASTA · LCIE · ASEFA |
|---|
| Overvoltage category | III |
|---|
| Electrical shock protection class | Class II on front face |
|---|
| Pollution degree | 3 conforming to IEC 60947 |
|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
|---|
| IK degree of protection | IK07 conforming to EN 50102 |
|---|
| Ambient air temperature for storage | -50…85 °C |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Warranty (in months) | 18 |
|---|
