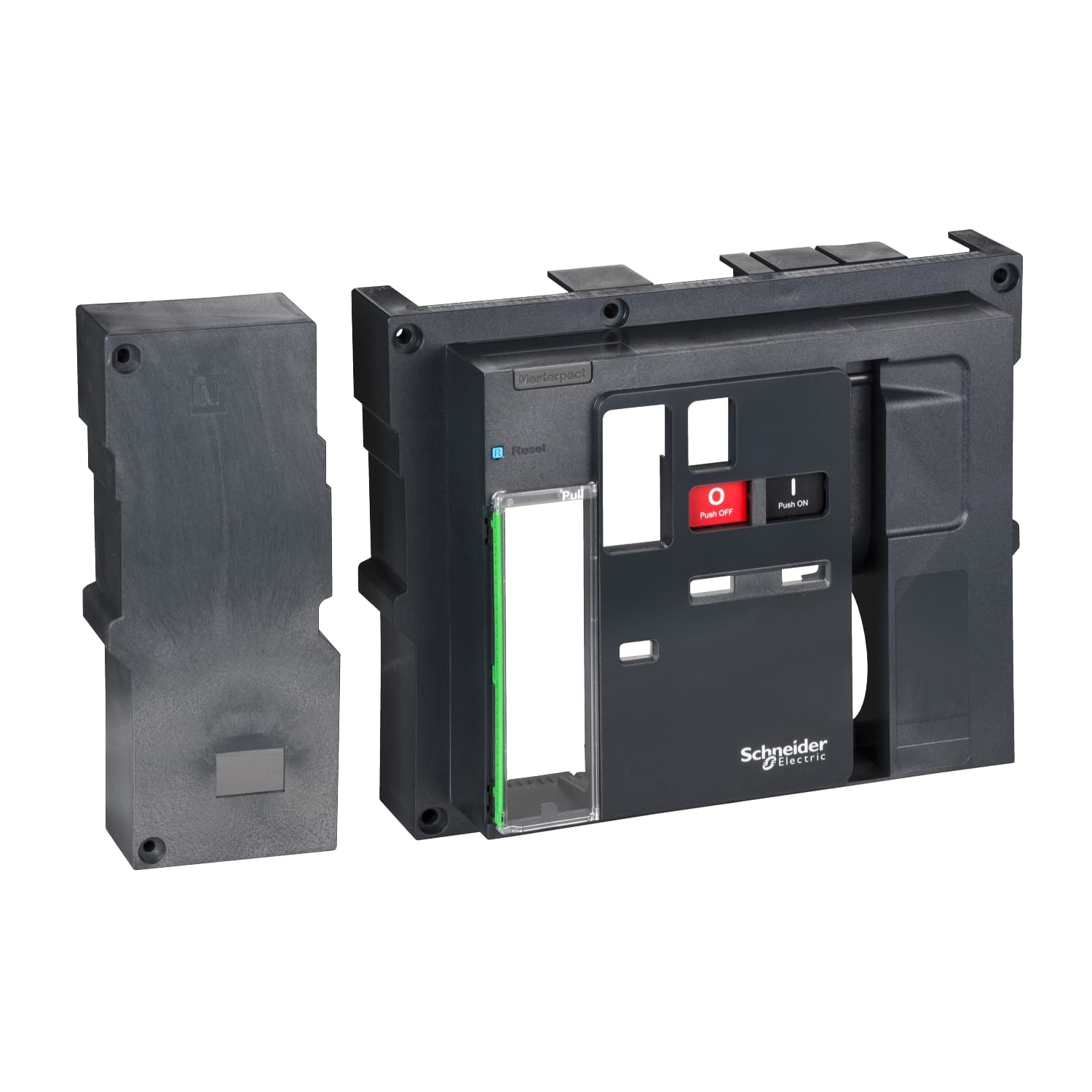

Schneider Electric MasterPacT MTZ2 Active circuit breaker, rated 800 A. Circuit breaker frame, MasterPacT MTZ2 08N1, for MicroLogic Active, 800A, 42kA/440VAC 50/60Hz (Icu), 3P, fixed.
Circuit breaker frame, MasterPacT MTZ2 08N1, for MicroLogic Active, 800A, 42kA/440VAC 50/60Hz (Icu), 3P, fixed. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | MasterPacT |
|---|
| Product name | MasterPacT MTZ2 Active |
|---|
| Product or component type | Circuit breaker |
|---|
| Device short name | MTZ2 08 N1 |
|---|
| Device application | Power distribution protection |
|---|
| Poles description | 3P |
|---|
| Control unit | Without control unit |
|---|
| Product compatibility | control unit MicroLogic Active 1.0 E · control unit MicroLogic Active 1.0 EP · control unit MicroLogic Active 2.0 A · control unit MicroLogic Active 2.0 AP · control unit MicroLogic Active 2.0 E · control unit MicroLogic Active 2.0 EP · control unit MicroLogic Active 5.0 A · control unit MicroLogic Active 5.0 AP · control unit MicroLogic Active 5.0 E · control unit MicroLogic Active 5.0 EP · control unit MicroLogic Active 6.0 A · control unit MicroLogic Active 6.0 AP · control unit MicroLogic Active 6.0 E · control unit MicroLogic Active 6.0 EP |
|---|
| [In] rated current | 800 A at 40 °C |
|---|
| Performance type | N1 42 kA 440 V AC |
|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
|---|
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
|---|
| Selectivity category | Category B |
|---|
| Control type | Push-button |
|---|
| Mounting mode | Fixed |
|---|
| [Icu] rated ultimate short-circuit breaking capacity | 42 kA at 220/415 V AC 50/60 Hz · 42 kA at 440 V AC 50/60 Hz · 42 kA at 525 V AC 50/60 Hz · 42 kA at 690 V AC 50/60 Hz |
|---|
| [Ics] rated service short-circuit breaking capacity | 42 kA at 220/415 V AC 50/60 Hz · 42 kA at 440 V AC 50/60 Hz · 42 kA at 525 V AC 50/60 Hz · 42 kA at 690 V AC 50/60 Hz |
|---|
| [Icw] rated short-time withstand current | 42 kA 0.5 s · 42 kA 1 s · 22 kA 3 s |
|---|
| [Icm] rated short-circuit making capacity | 88 kA 220/415 V AC at 50/60 Hz · 88 kA 440 V AC at 50/60 Hz · 88 kA 525 V AC at 50/60 Hz · 88 kA 690 V AC at 50/60 Hz |
|---|
| Sensor rating | 400 A · 630 A · 800 A |
|---|
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
|---|
| [Uimp] rated impulse withstand voltage | 12 kV |
|---|
| Power dissipation in W | 62 W |
|---|
| Power dissipation per pole | 20.7 W |
|---|
| Maximum breaking time | 25 ms |
|---|
| Maximum closing response time | 70 ms |
|---|
| Mounting support | Base plate · Rails |
|---|
| Upside connection | Front · Rear |
|---|
| Downside connection | Front · Rear |
|---|
| Connection pitch | 115 mm |
|---|
| Mechanical durability | 25000 cycles with maintenance |
|---|
| Electrical durability | 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 · 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
|---|
| Height (H) | 352 mm |
|---|
| Width (W) | 422 mm |
|---|
| Depth (D) | 297 mm |
|---|
| Product weight | 50 kg |
|---|
| Standards | EN/IEC 60947-1 · EN/IEC 60947-2 |
|---|
| Product certifications | CE · CCC · EAC |
|---|
| IP degree of protection | IP3X conforming to EN/IEC 60529 |
|---|
| IK degree of protection | IK07 conforming to EN/IEC 62262 |
|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Temperature derating table | 40 °C ( 800 A ) · 45 °C ( 800 A ) · 50 °C ( 800 A ) · 55 °C ( 800 A ) · 60 °C ( 800 A ) · 65 °C ( 800 A ) · 70 °C ( 800 A ) |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Operating altitude | 0...2000 m without derating · 2000 m...5000 m with derating |
|---|
