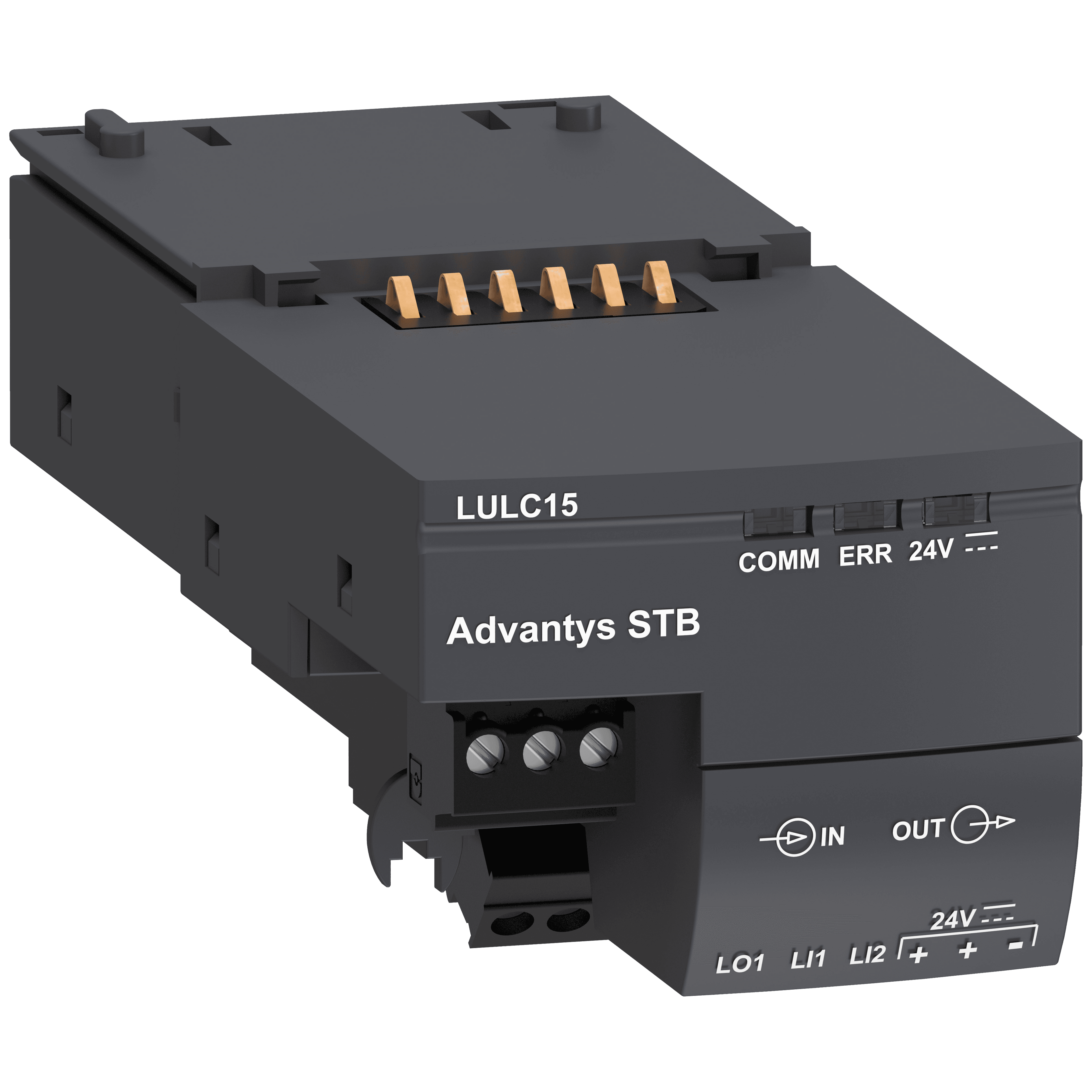

Schneider Electric TeSys communication module. Communication module, TeSys Ultra, 24VDC, 0 to 500mA, Advantys STB, front side.
Communication module, TeSys Ultra, 24VDC, 0 to 500mA, Advantys STB, front side. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys |
|---|---|
| Device short name | LUL |
| Product or component type | Communication module |
| Product compatibility | LUCC · LUCA · LUCL · LUCM · LUCB · LUCD |
| Device application | Communication |
| Range compatibility | TeSys TeSys U LUB non reversing power base · TeSys TeSys U LU2B reversing power base |
| main function available | Communication module |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Physical interface | CAN |
| Bus type | Advantys STB |
| Cable connector type | Fire wire |
| Communication port protocol | CAN2.B · CAN2.0A |
| Addressing | Self-addressing |
| Transmission rate | 800 kbit/s |
| Current consumption | 1.5 mA at 24 V DC 20...28 V |
| Logic input | Positive at 24 V DC - 7 mA |
| Response time | 10 ms +/- 30 % change to state 0 · 10 ms +/- 30 % change to state 1 |
| Input type | Resistive |
| Number of outputs | 2 dedicated to starter-controller coil operation · 1 |
| [Us] rated supply voltage | 24 V DC |
| Output current | <= 500 mA |
| Switching current capacity | 0.5 mA at 24 V |
| Local signalling | 3 LEDs front panel |
| Connection pitch | 3.81 mm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end · Screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end · Screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end · Screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end |
| Associated cable type | AWG 26...AWG 16 |
| Tightening torque | 0.2…0.25 N.m2.5 mm |
| Ambient air temperature for operation | -25…55 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 35 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.065 kg |
| Warranty (in months) | 18 |
