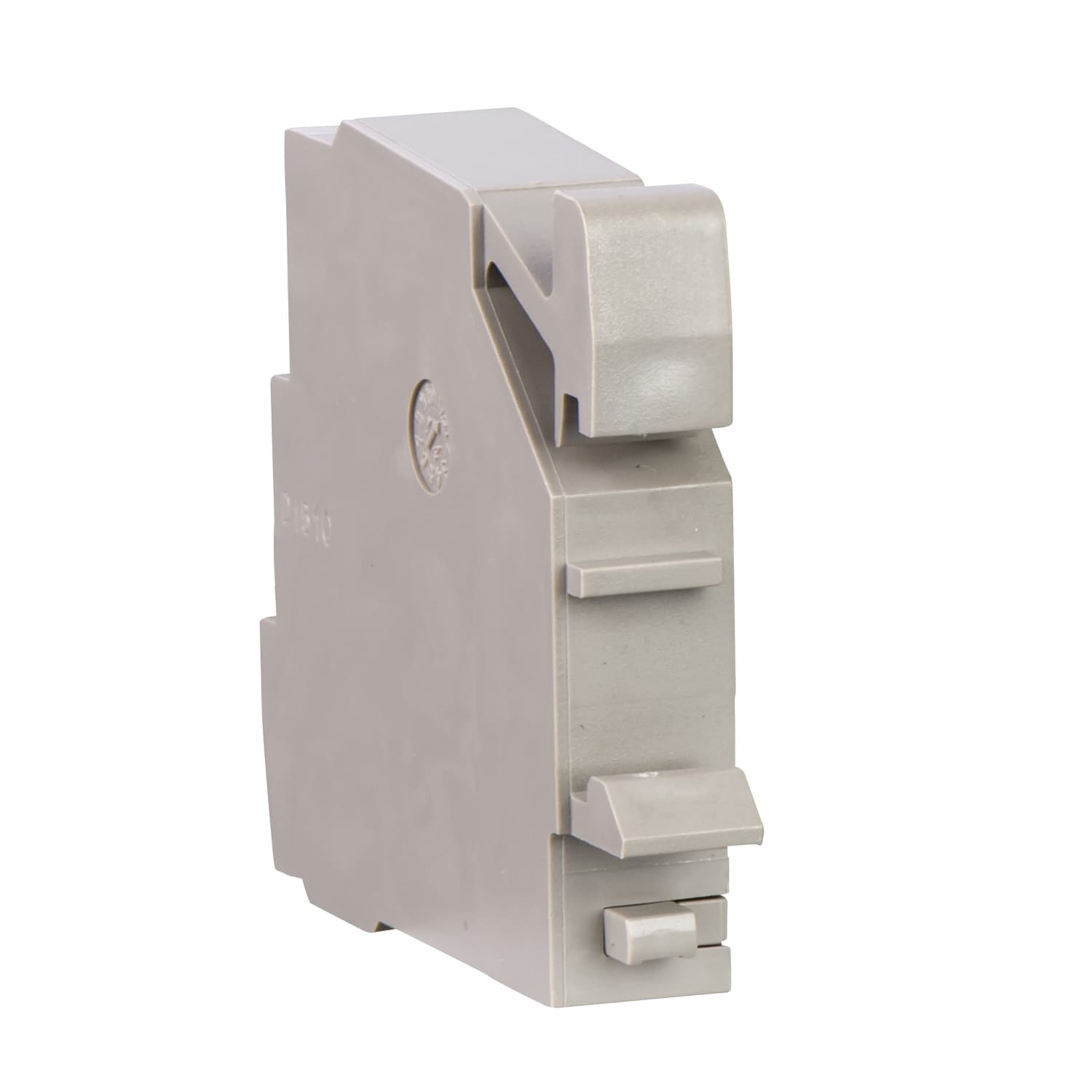

Schneider Electric auxiliary contact, rated 6 A. Carriage switch, MasterPact NT/NW, ComPacT NS, drawout, chassis connected position (CE), 1 NO/NC, standard, 8A/240VAC.
Carriage switch, MasterPact NT/NW, ComPacT NS, drawout, chassis connected position (CE), 1 NO/NC, standard, 8A/240VAC. Genuine Schneider Electric product supplied by United Force.
| Device short name | connected position contact |
|---|---|
| Product or component type | Auxiliary contact |
| Device application | Monitoring |
| Range compatibility | Masterpact MasterPact NT · Masterpact MasterPact NW · Masterpact MasterPact NW DC · ComPact ComPact NS630b...1600 |
| Signal contacts composition | 1 NO/NC |
| Auxiliary contacts type | Standard |
| Auxiliary contacts operation | Connected position |
| Mounting mode | Drawout |
| [Ie] rated operational current | AC-12: 6 A at 690 V AC 50/60 Hz · AC-12: 8 A at 240 V AC 50/60 Hz · AC-12: 8 A at 380 V AC 50/60 Hz · AC-12: 8 A at 480 V AC 50/60 Hz · DC-12: 0.8 A at 125 V DC · DC-12: 2.5 A at 24/48 V DC · DC-12: 0.3 A at 150 V DC |
| Minimum load | 100 mA at 24 V |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.720 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2560 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 63.040 kg |
| Warranty (in months) | 18 |
