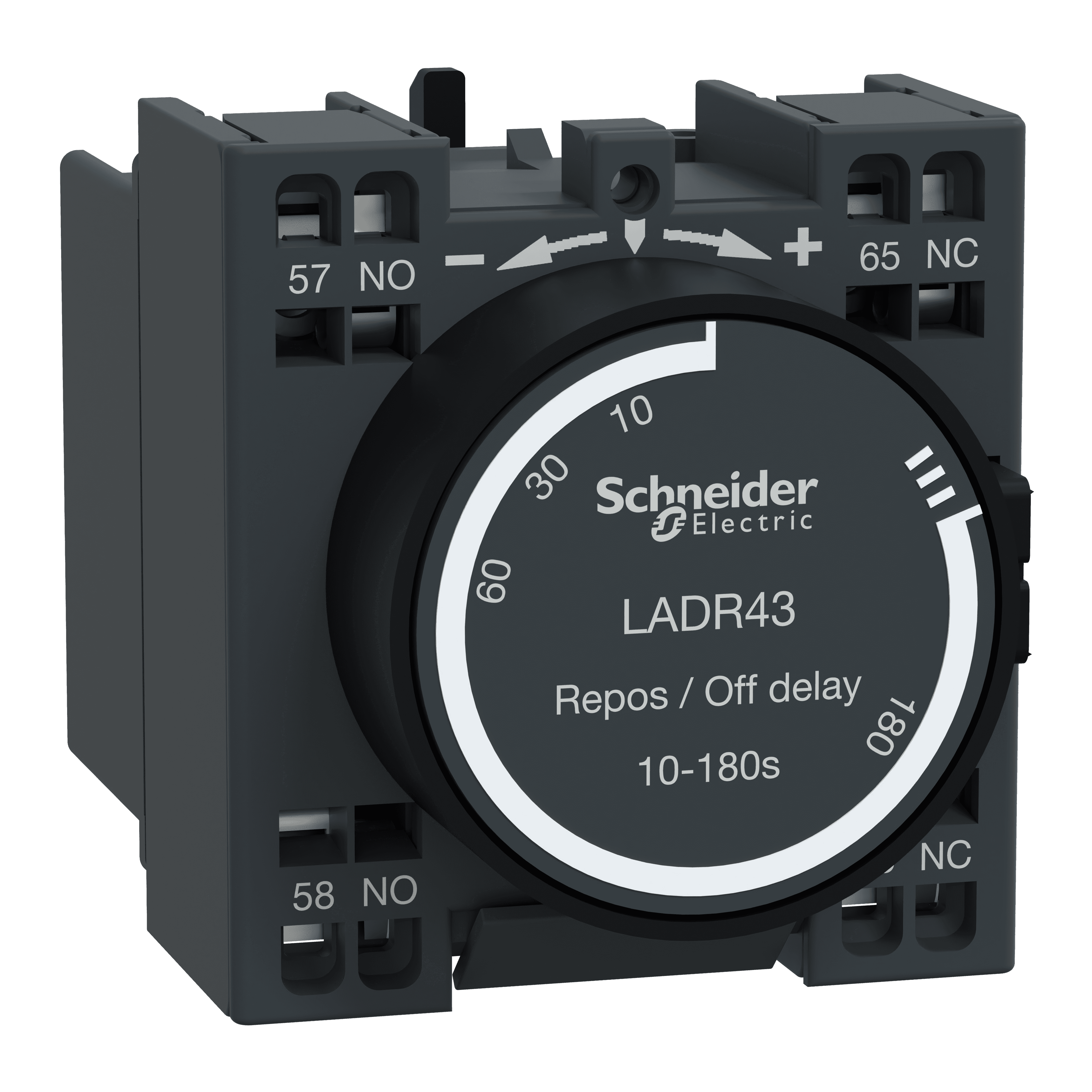

Schneider Electric TeSys Deca time delay auxiliary contact block, rated 6 A. Time delay auxiliary contact block, TeSys Deca, 1NO+1NC, off delay 10-180s, front, spring terminals.
Time delay auxiliary contact block, TeSys Deca, 1NO+1NC, off delay 10-180s, front, spring terminals. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys · TeSys Deca |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Time delay auxiliary contact block |
| Range compatibility | TeSys D CAD · TeSys D LC1D · TeSys Deca CAD · TeSys Deca LC1D |
| Mounting location | Front |
| Pole contact composition | 1 NO + 1 NC |
| Contacts operation | Time delay |
| Timer type | Off delay |
| Time delay range | 10...180 s |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 · 1.04 A at 690 V AC-15 · 0.55 A at 125 V DC-13 · 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 · 600 V conforming to UL 60947-5-1 · 600 V conforming to CSA C22.2 No 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1 · UL 60947-5-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.5 · EN 50012 · IEC 60335-1:Clause 30.2 · IEC 60335-2-40:Annex JJ · UL 60335-2-40:Annex JJ |
| Product certifications | IECEE CB Scheme · UL · CSA · CCC · EAC · UKCA |
| Irms rated making capacity | 140 A AC · 250 A DC |
| Permissible short-time rating | 100 A 60 °C 1 s · 120 A 60 °C 500 ms · 140 A 60 °C 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 5 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact · 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Spring terminals 2 cable(s) 2.5 mm²flexible without cable end · Spring terminals 2 cable(s) 2.5 mm²rigid without cable end |
| Height | 48 mm |
| Width | 44 mm |
| Depth | 61 mm |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60…80 °C |
| Ambient air temperature for operation | -40…70 °C |
| Operating altitude | 3000 m |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.677 kg |
| Warranty (in months) | 18 |
