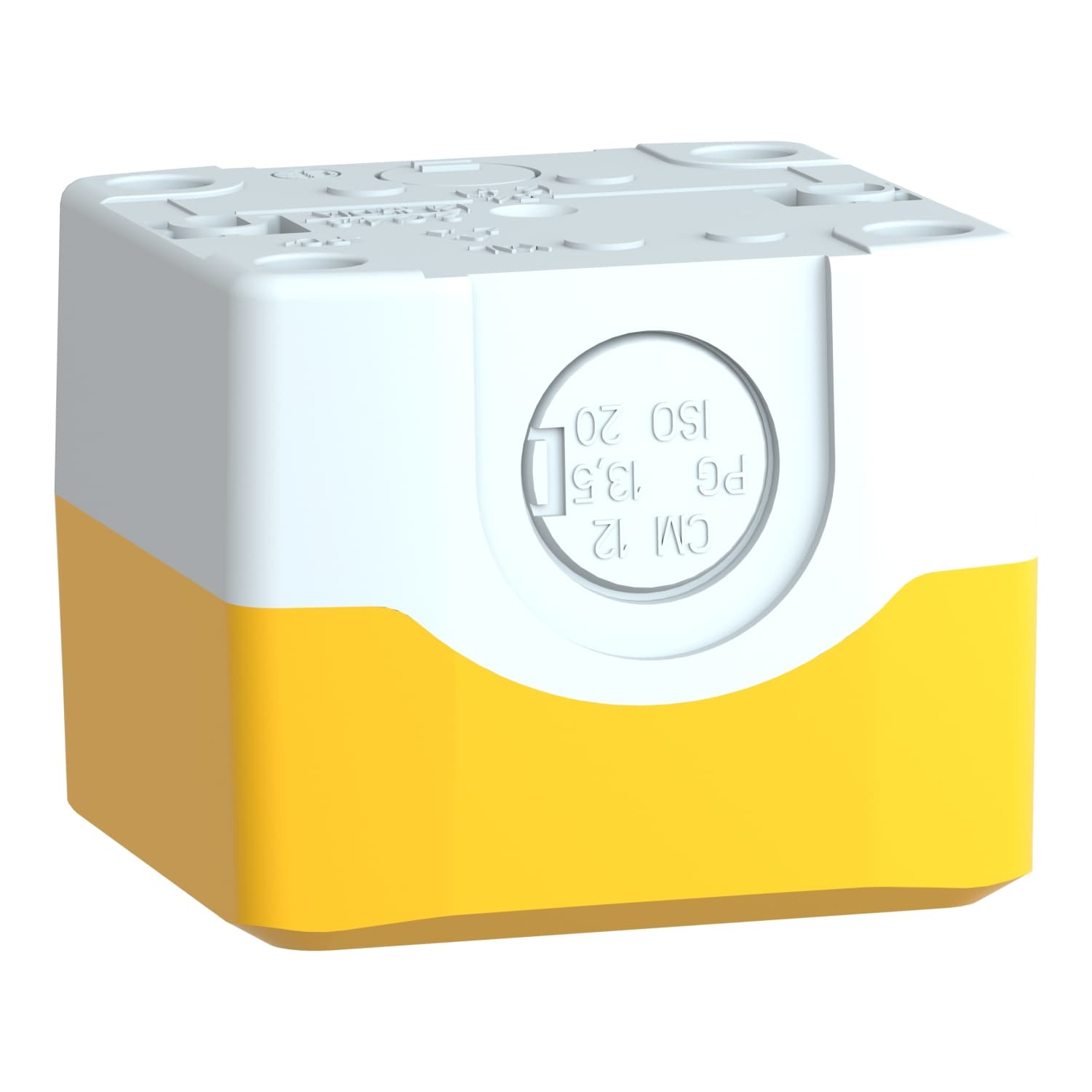

Schneider Electric empty control station. Empty control station, Harmony XALK, XALD, plastic, yellow lid for push button 22mm, 1 cut out.
Empty control station, Harmony XALK, XALD, plastic, yellow lid for push button 22mm, 1 cut out. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XALK |
|---|---|
| Product or component type | Empty control station |
| Device short name | XALK |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Emergency stop function · Emergency switching off function |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Cable entry | 1 knock-out for cable entry, clamping capacity: 14 mm · 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529 · IP67 · IP69 · IP69K |
| Assembly style | For customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 1 |
| Product weight | 0.136 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block | Front mounting · Rear mounting |
| electrical composition code | SR1 · SF1 · MR1 · MF1 |
| Main group | 1 cut-out |
| Group of product | Standard yellow |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 13 · NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60947-5-5 · UL 508 · IEC 60947-5-4 · JIS C8201-5-1 · CSA C22.2 No 14 · IEC 60947-1 · IEC 60947-5-1 · JIS C8201-1 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.308 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 480 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 73.724 kg |
| Warranty (in months) | 18 |
