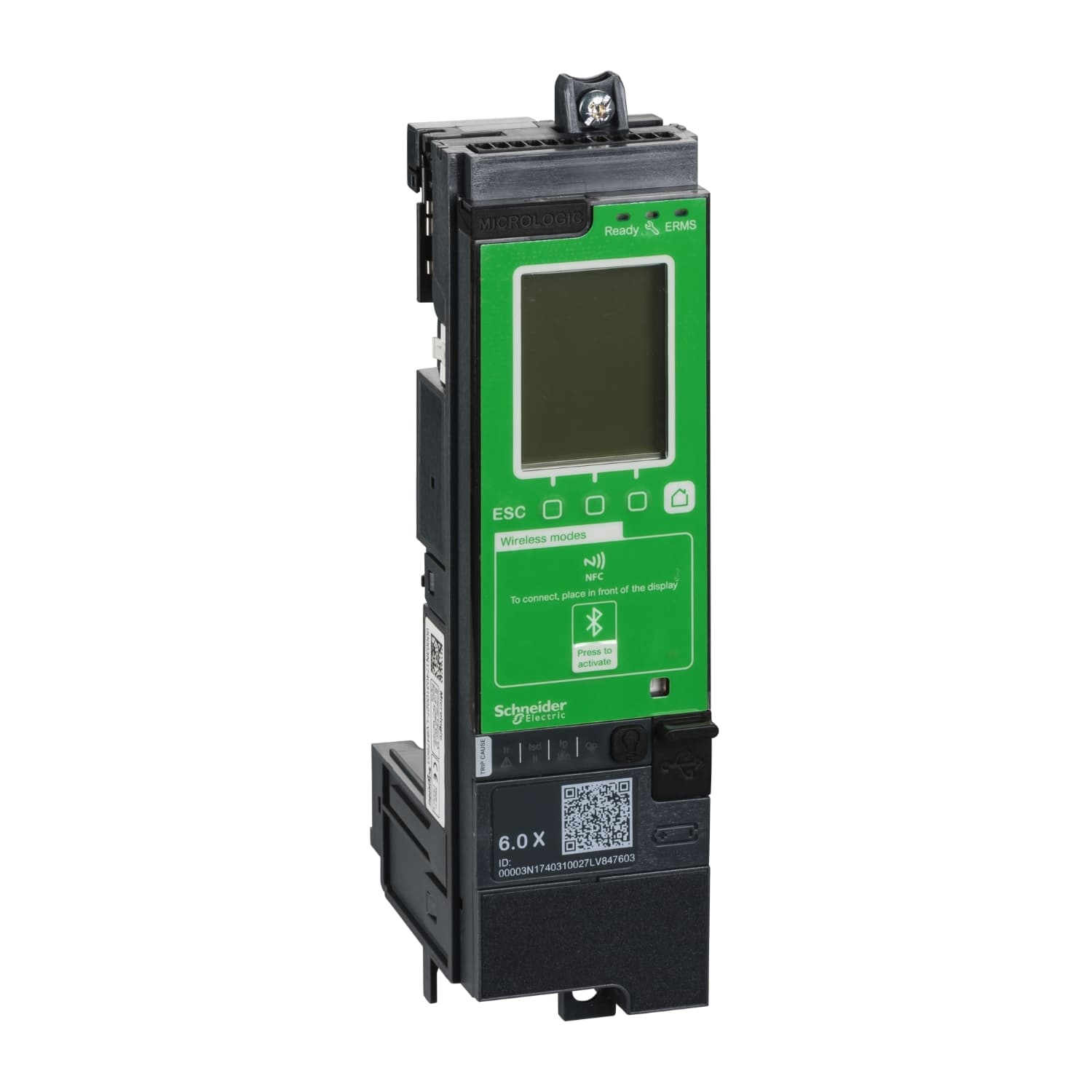

Schneider Electric MasterPacT control unit. MicroLogic 6.0X control unit, MasterPact MTZ2/MTZ3, drawout circuit breakers, LSIG protections.
MicroLogic 6.0X control unit, MasterPact MTZ2/MTZ3, drawout circuit breakers, LSIG protections. Genuine Schneider Electric product supplied by United Force.
| Range | MasterPacT |
|---|---|
| Device short name | MicroLogic 6.0 X |
| Product or component type | Control unit |
| Device application | Equipment protection, monitoring and control |
| Circuit breaker application | Distribution IEC standard |
| Range compatibility | MasterPact MTZ2 circuit breaker · MasterPact MTZ3 circuit breaker |
| Poles | 3P · 4P |
| Protected poles description | 3P 3d · 4P 3d · 4P 3d + N/2 · 4P 4d · 4P 3d + OSN |
| [Ue] rated operational voltage | 690 V AC, +/- 10 % |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSIG |
| Protection type | Overload protection (long time) conforming to ANSI 49 · Instantaneous short-circuit protection conforming to ANSI 50 · Short time short-circuit protection conforming to ANSI 51 · Earth fault conforming to ANSI 51N |
| Trip unit rating | 400 A · 630 A · 800 A · 1000 A · 1250 A · 1600 A · 2000 A · 2500 A · 3200 A · 4000 A · 5000 A · 6300 A |
| Mounting mode | Drawout |
| Neutral protection setting | 1 x Ir (4P 4d) · 0.5 x Ir (4P 3d + N/2) · 1.6 x Ir (4P 3d + OSN) · No protection (4P 3d) |
| [Ir] long time pick-up adjustment range | 0.4...1 x In adjustable in step of 1 A |
| Long time delay adjustment type | Adjustable in step of 0.5 s |
| [tr] long-time delay adjustment range | 12.5…600 s at 1.5 x Ir · 0.5…24 s at 6 x Ir · 0.7…16.6 s at 7.2 x Ir |
| Thermal memory | Yes |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir adjustable in step of 0.5 x Ir with embedded HMI · 1.5...10 x Ir adjustable in step of 0.1 x Ir with Ecoreach software or MasterPact MTZ mobile app |
| Short-time delay adjustment type | Adjustable |
| [tsd] short-time delay adjustment range | 0.1…0.4 s I²t=on · 0…0.4 s I²t=off |
| Instantaneous pick-up adjustment type Ii | Adjustable |
| [Ii] instantaneous pick-up adjustment range | 2...15 x In adjustable in step of 0.5 x In with embedded HMI · 2...15 x In adjustable in step of 0.1 x In with Ecoreach software or MasterPact MTZ mobile app · Ii enable on/off |
| [li mode] instantaneous delay adjustment range | 0 ms in fast · 20 ms in standard |
| Ground-fault pick-up adjustment type | Adjustable |
| [Ig] ground-fault pick-up adjustment range | with In > 400 A 0.2...1 x In adjustable in step of 1 or 10 A · with In <= 400 A 0.3...1 x In adjustable in step of 1 or 10 A · Ig enable on/off |
| ground-fault time delay adjustment type | Adjustable |
| [tg] Ground-fault time delay adjustment range | 0.1…0.4 s I²t=on · 0…0.4 s I²t=off |
| Zone selective interlocking ZSI | With |
| Network and machine diagnosis type | System (HMI) health state overview: circuit breaker health state · Contacts state: circuit breaker health state · MicroLogic service life: circuit breaker health state · Tripping cause indication: circuit breaker tripping cause · Identification card: diagnostic data · Configured alarms synthesis: diagnostic data · Monitored function: diagnostic data · Operation: diagnostic data · MicroLogic test: test · Protection test: test · Selectivity test: test · Trip context information: crisis management · Operation: advanced diagnostic · Breaker service life: circuit breaker health state |
| Type of measurement | Power meter |
| Energy management | Measurement ,active, reactive and apparent energy · Measurement ,electrical network · Measurement ,energy |
| Metering type | Current I1, I2, I3, Iavg RMS · Neutral current IN RMS · Ground fault current Ig RMS · Voltage V12, V23, V31, VLLavg RMS · Voltage V1N, V2N, V3N, VLNavg RMS · Active power P, P1, P2, P3 total · Reactive power Q, Q1, Q2, Q3 total · Apparent power S, S1, S2, S3 total · Power factor · Active energy Ep IN/OUT/tot · Reactive energy Eq IN/OUT/tot · Apparent energy Es IN/OUT/tot · Demand current I1, I2, I3, In, Iavg · Demand power P, Q, S · Frequency · Phase sequence · Earth leakage current · Total current harmonic distortion THD (I) · Total voltage harmonic distortion THD (V) · Unbalance current · Unbalance voltage |
| Measurement voltage | 208…828 V AC 50/60 Hz phase to phase · 120…480 V AC 50/60 Hz phase to neutral |
| Frequency measurement range | 40…70 Hz |
| Measurement accuracy | Current I1, I2, I3, Iavg, Idemand for MTZ1: +/- 0.5 % 40...1600 x 1.2 A · Current I1, I2, I3, Iavg, Idemand for MTZ2: +/- 0.5 % 40...4000 x 1.2 A · Current I1, I2, I3, Iavg, Idemand for MTZ3: +/- 0.5 % 80...6300 x 1.2 A · Neutral current IN: +/- 1 % · Ground fault current Ig: +/- 5 % · Voltage V12, V23, V31, VLLavg: +/- 0.5 % 208...690 x 1.2 V · Voltage V1N, V2N, V3N, VLNavg: +/- 0.5 % 120...400 x 1.2 V · Active power P, P1, P2, P3, Pdemand: +/- 1 % · Reactive power Q, Q1, Q2, Q3, Qdemand: +/- 2 % · Apparent power S, S1, S2, S3, Sdemand: +/- 1 % · Power factor: +/- 2 % · Active energy Ep IN/OUT/tot: +/- 1 % · Reactive energy Ep IN/OUT/tot: +/- 2 % · Apparent energy Es IN/OUT/tot: +/- 1 % · Frequency: +/- 0.005 Hz · Earth leakage current: +/- 10 % · Unbalance current: +/- 0.5 % |
| Accuracy class | Class 5: total current harmonic distortion THD (I) · Class 0.5: unbalance voltage · Class 1: active and reactive energy by pulse counting (+/- W.h, +/- VAR.h) · Class 2: total voltage harmonic distortion THD (V) |
| Display type | LCD display - 128 x 96 pixels |
| Communication port protocol | Bluetooth 4.0 LE peer to peer 30 kbit/s · NFC peer to peer conforming to ISO 15963 · USB peer to peer 115 kbauds |
| Data recording | Min/max of instantaneous values · Maintenance logs · Alarm logs · Time stamping · Event logs · Data logs |
| Standards | EN/IEC 60947-1 · EN/IEC 60092-202 · EN/IEC 60947-2 · EN/IEC 60255-1 · EN/IEC 61010-1 |
| Mounting location | Indoor use only |
