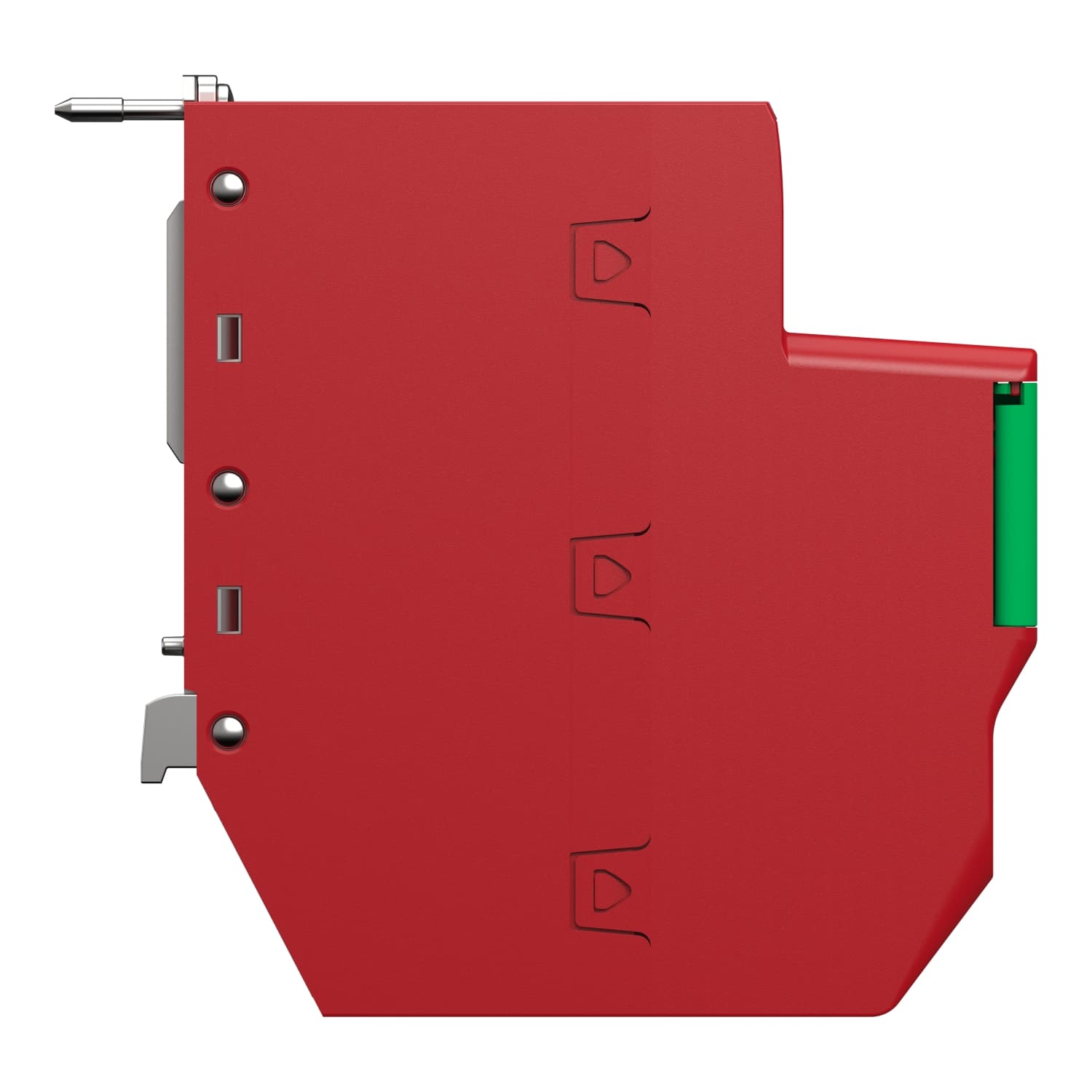

Schneider Electric redundant processor module. redundant safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 & Quantum IO.
redundant safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 & Quantum IO. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon M580 |
|---|---|
| Product or component type | Redundant processor module |
| Impregnation material | Conformal coated |
| Number of racks | 1 |
| Application specific I/O | Counter · Motion control · SSI encoder · Accurate time stamping · Serial link · HART |
| Checks | Process control · Safety control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port · 2 Ethernet TCP/IP for device network · USB type mini B · 1 Ethernet for HSBY port |
| Number of remote I/O station | 16.0 - 2 rack(s) per X80 and Quantum drops |
| Number of distributed equipment | 61.0 |
| Communication module processor capacity | 4.0 Ethernet communication module · 16 AS-Interface module |
| Communication service | DIO scanner · RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage · Integrated RAM, 10 kB for system memory · Integrated RAM, 16 MB for program process · Integrated RAM, 2048 kB for data process · Integrated RAM, 4 MB for program safety · Integrated RAM, 1024 kB for data safety |
| Application structure | 1 master task · 1 periodic fast task · 1 periodic safe task |
| Cybersecurity | Achilles certified · DoS prevention · IPSec · SNMP logging · Syslog protocol support · Audit trail · Embedded firewall · Firmware signature · Password protection · Port hardening · Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic · 40 Kinst/ms 100 % Boolean |
| Current consumption | 360 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility · 2006/42/EC - machinery · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 · TÜV |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · EN/IEC 61000-6-5, interface type 1 and type 2 · EN/IEC 61850-3, location G · IEC 60079-0 · EN 50155 · EN 50121-3-2 · EN 50121-4 · EN 50121-5 · EN 45545-2 · IEC 60571 · IEC 62236-3-2 · IEC 62234-4 · IEC 62234-5 |
| Environmental characteristic | Hazardous location class I division 2 · Gas resistant class Gx conforming to ISA S71.04 · Gas resistant class 3C4 conforming to IEC 60721-3-3 · Dust resistant class 3S4 conforming to IEC 60721-3-3 · Sand resistant class 3S4 conforming to IEC 60721-3-3 · Salt resistant level 2 conforming to IEC 68252 · Mold growth resistant class 3B2 conforming to IEC 60721-3-3 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Protective treatment | Conformal coating |
| Safety level | SIL 3 conforming to IEC 61508 · SIL 3 conforming to IEC 61511 · SILCL 3 conforming to IEC 62061 · PL = e conforming to ISO 13849-1 category 4 · SIL 4 conforming to EN 50126 · SIL 4 conforming to EN 50128 · SIL 4 conforming to EN 50129 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) · 1 LED (red) processor or system fault (ERR) · 1 LED (red) I/O module fault (I/O) · 1 LED (green) download in progress (DL) · 1 LED (red) memory card or CPU flash fault (BACKUP) · 1 LED (green/red) ETH MS (Ethernet port configuration status) · 1 LED (green/red) Eth NS (Ethernet network status) · 1 LED (green) peer processor running (REMOTE RUN) · 1 LED (green) processor ID set to A (A) · 1 LED (green) processor ID set to B (B) · 1 LED (green) processor acting as Primary (PRIM) · 1 LED (green) processor acting as Standby (STBY) · 1 LED (red) I/O values overrided by user (FORCED IO) · 1 LED (green) processor in safety mode (SRUN) · 1 LED (green) processor in maintenance mode (SMOD) · 1 LED (green) Hot standby link status (Hsby Diag) |
| Product weight | 0.849 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.846 kg |
| Warranty (in months) | 18 |
