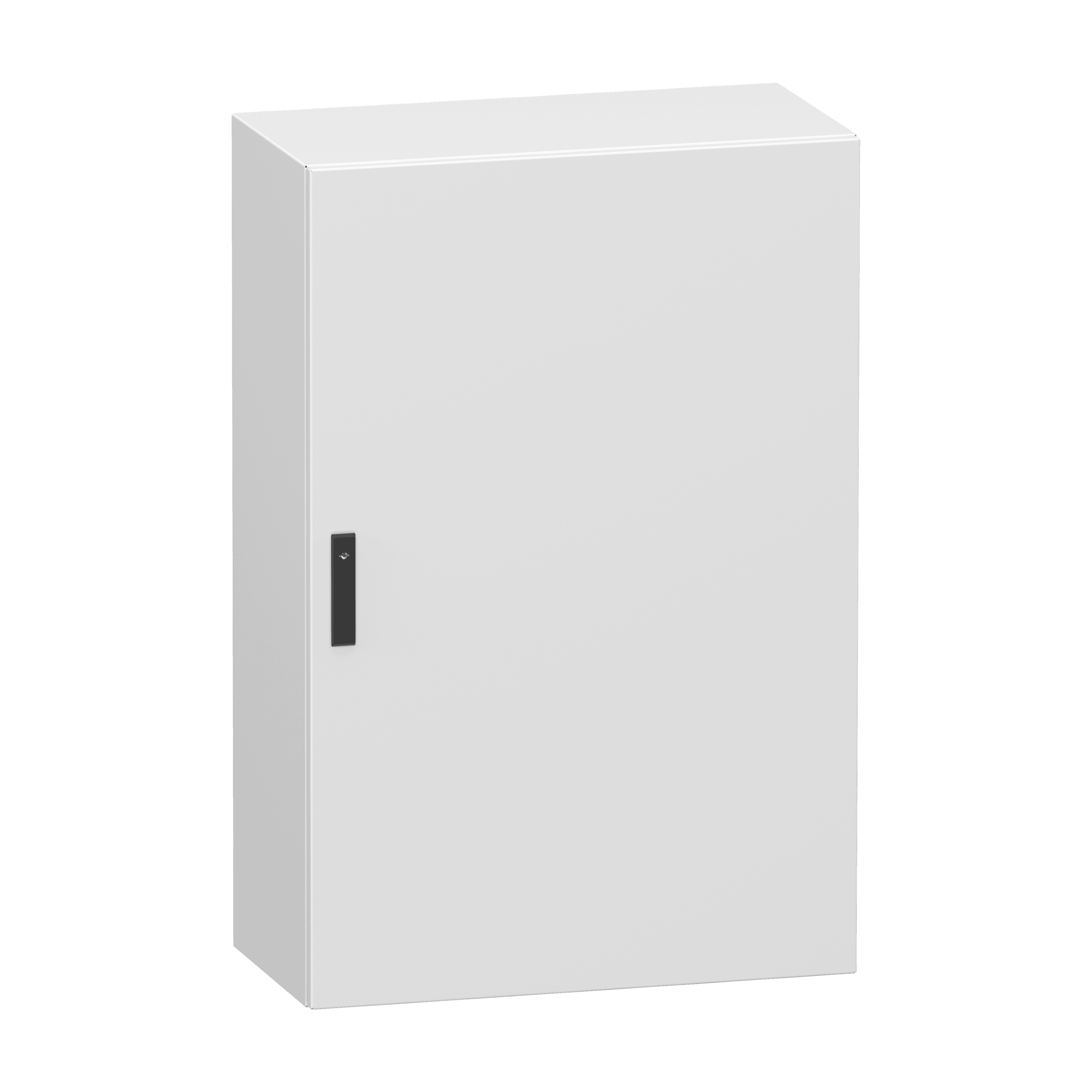

Schneider Electric PanelSeT CRN. Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035.
Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035. Genuine Schneider Electric product supplied by United Force.
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 400 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body · 1 door · 1 lock · 2 cable gland plate: bottom |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 5 mm double-bar |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges · Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 · UL · CUL |
| Product certifications | cUL · UL |
| Product weight | 52.7 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Warranty (in months) | 18 |
