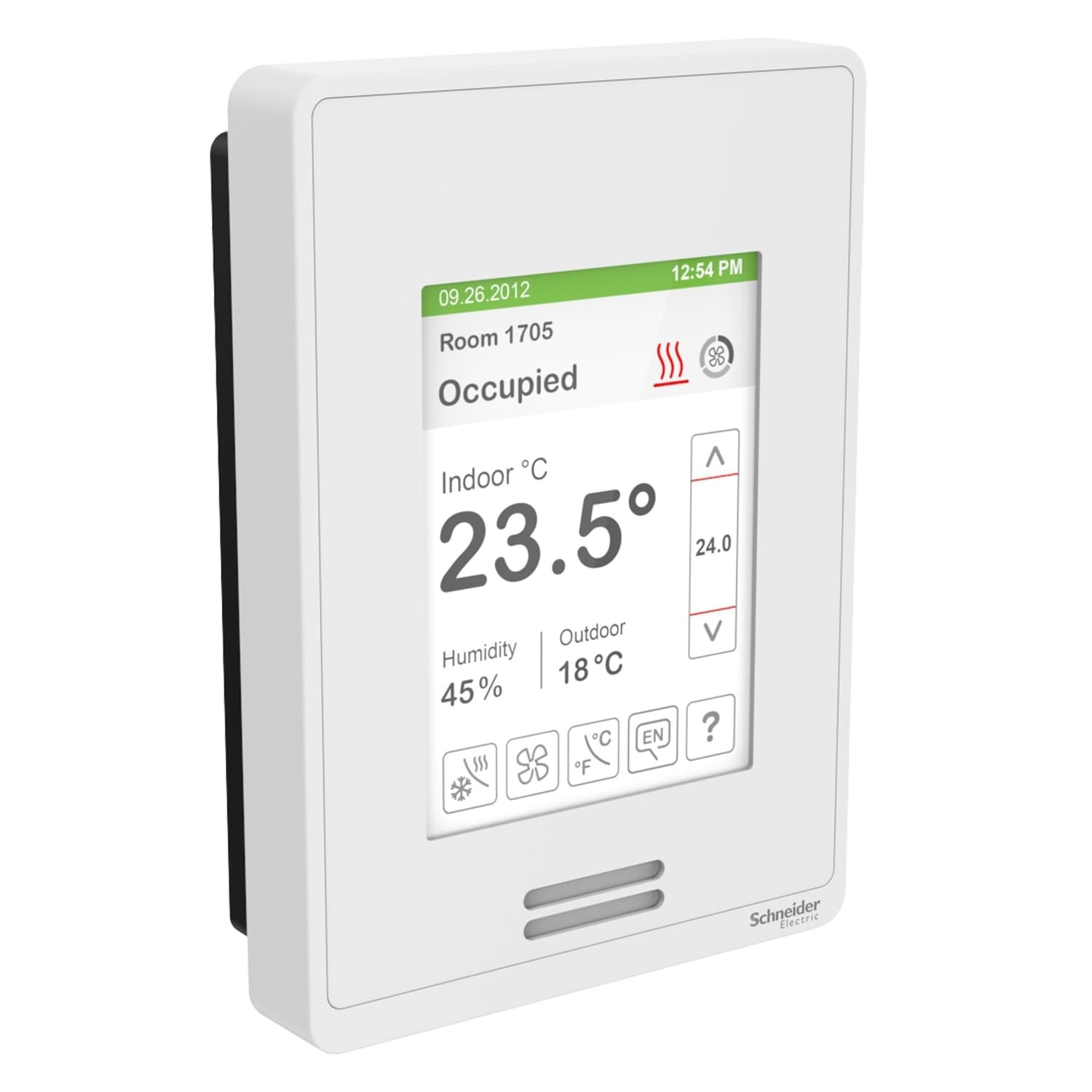

Schneider Electric SE8000 Series room controller, rated 4 A. Hotel Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia.
Hotel Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia. Genuine Schneider Electric product supplied by United Force.
| AWG gauge | 24 AWG...18 AWG |
|---|---|
| Humidity measurement drift | Less than 1 % yearly |
| Width | 86 mm |
| Market segment | Lodging/hotel · Small commercial · Buildings · Healthcare · Non-critical buildings · Office · Residential · School |
| Device application | Line voltage fan coil |
| Product weight | 340 g |
| Product or component type | Room controller |
| Product name | SE8000 Series |
| Device short name | SER8300 |
| Height | 120 mm |
| Directives | 2014/30/EU - electromagnetic compatibility · 2014/35/EU - low voltage directive · 2014/53/EU - radio equipment directive |
| [In] rated current | 4 A |
| Temperature resolution | 0.1 °C |
| Housing colour | White |
| Ambient air temperature for storage | -30…50 °C |
| Depth | 25 mm |
| Ambient air temperature for operation | 0…50 °C |
| Measurement accuracy | Temperature: +/- 0.5 °C, · Humidity: +/- 5 %, 20...80 % RH (non-condensing) · Humidity: +/- 10 %, 10...20 % (non-condensing) · Humidity: +/- 10 %, 80...90 % (non-condensing) |
| Information displayed | Temperature: - 40...122 °F |
| Network frequency | 50 Hz · 60 Hz |
| Communication port protocol | BACnet MS/TP · Modbus RTU |
| Relative humidity | 0…95 % |
| Temperature setting range | 12…37.5 °C cooling · 4.5…32 °C heating |
| Calibration certificate | 1 pt |
| Sensor type | 10 kOhm T2 NTC thermistor temperature · Space RH sensor humidity · Bulk polymer humidity |
| Output current | 1 A relay output |
| [Us] rated supply voltage | 7 V DC 50/60 Hz +/- 10 % |
| Input type | 2 x dry contact · 5 x analog |
| Output voltage | 24 V AC for relay output · 0...10 V DC for analog output |
| Output type | 5 xrelay output · 4 xuniversal |
| Standards | EN/IEC 60730-1 · FCC part 15 Subpart B · ICES-003 · ETSI EN 300 328 · ETSI EN 301 489-1:v1.9.2 · FCC part 15 Subpart C · UL 60730-2-9 · ETSI EN 301 489-17:v2.2.1, 2012 |
| Humidity setting range | 30…95 % |
| Input voltage | 0...10 V DC |
| Range | SpaceLogic |
| Economizer | Yes |
| Humidity control | Yes |
| PIR cover | No |
| Scheduling | No |
| surface treatment | Untreated |
| Surface finish | Matt |
| Function available | Fan control · HVAC control · Available with CO2/RH/T · Brightness sensor · Changes can be made directly over display · Code lock function · Easily configurable · Firmware update by USB |
| Warranty (in months) | 18 |
