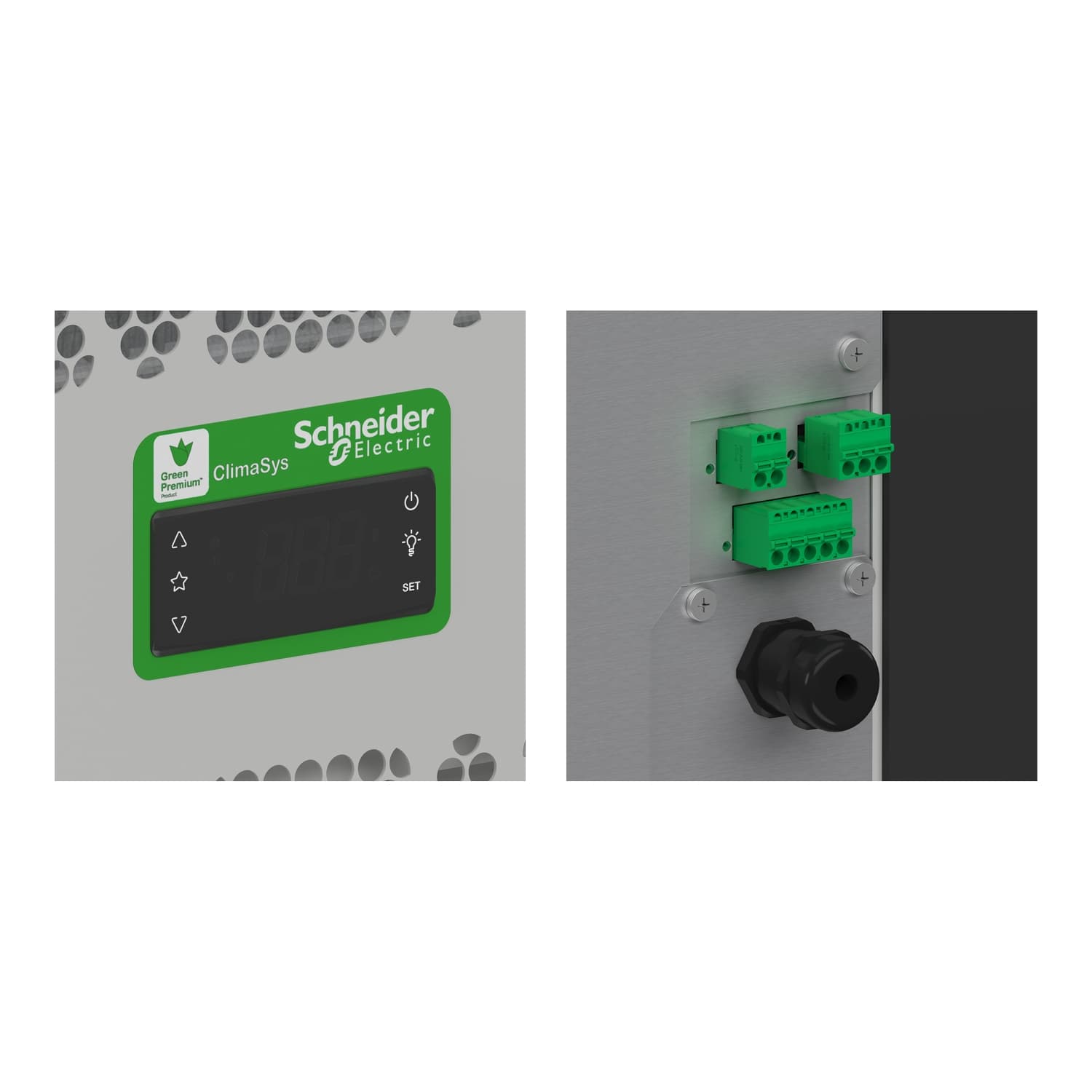

Schneider Electric CU cooling unit, rated 1.8 A. Side Connected Cooling Unit, Climasys CU, 600W, 230V, 50/60Hz, IP55.
Side Connected Cooling Unit, Climasys CU, 600W, 230V, 50/60Hz, IP55. Genuine Schneider Electric product supplied by United Force.
| Range | ClimaSys |
|---|---|
| Product name | CU |
| mounting type | Side |
| Product or component type | Cooling unit |
| Installation | Indoor side |
| Product destination | For enclosure |
| Mounting mode | By screws |
| Supply Voltage | 220...240 V 1 phase 50 Hz EN/IEC · 230 V +/- 6 % 1 phase 60 Hz UL |
| Rated Power | 620 W |
| Cooling power | 620 W 50/60 Hz L35-L35 · 470 W 50/60 Hz L35-L50 |
| Height | 460 mm |
| Width | 290 mm |
| Depth | 190 mm |
| [In] rated current | 1.8 A |
| Inrush current | 6 A |
| Power consumption in W | 370 W at 50/60 Hz, L35-L35 · 420 W at 50/60 Hz, L35-L50 |
| Energy efficiency ratio | 1.7 |
| Control type | Electronic controller |
| Temperature setting range | 20…50 °C at 50/60 Hz |
| Ambient air temperature for operation | 20…50 °C at 50/60 Hz inside the enclosure: · 5…55 °C at 50/60 Hz outside the enclosure: |
| Noise level | 62 dB |
| Pressure | 28 bar |
| Flow rate | Internal circuit: 117 m3/h at 50/60 Hz · External circuit: 174 m3/h at 50/60 Hz |
| Product weight | 13.2 kg |
| Cooling gas type | R513a (0.115 kg) |
| Type of filter | Optional external circuit filter |
| Recommended circuit breaker protection | M9F23116 |
| Thermal protection Recommended (fuse) | 15 A (T) |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Product certifications | UL · IEC · EN |
| Directives | 2006/42/EC - machinery · 2014/30/EU - electromagnetic compatibility · 2011/65/EU - RoHS |
| Standards | EN/ISO 12100 · EN 60335-1 · EN 60335-2-40 · EN 61000-3-2 · EN 61000-3-3 · EN 61000-6-2 · EN 61000-6-3 · EN/IEC 63000:2018 · EN 14511 |
| IP degree of protection | IP55 conforming to IEC 60529 (on the internal circuit) · IP24 conforming to IEC 60529 (on the external circuit) |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 118.400 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 285.000 kg |
| Warranty (in months) | 18 |
