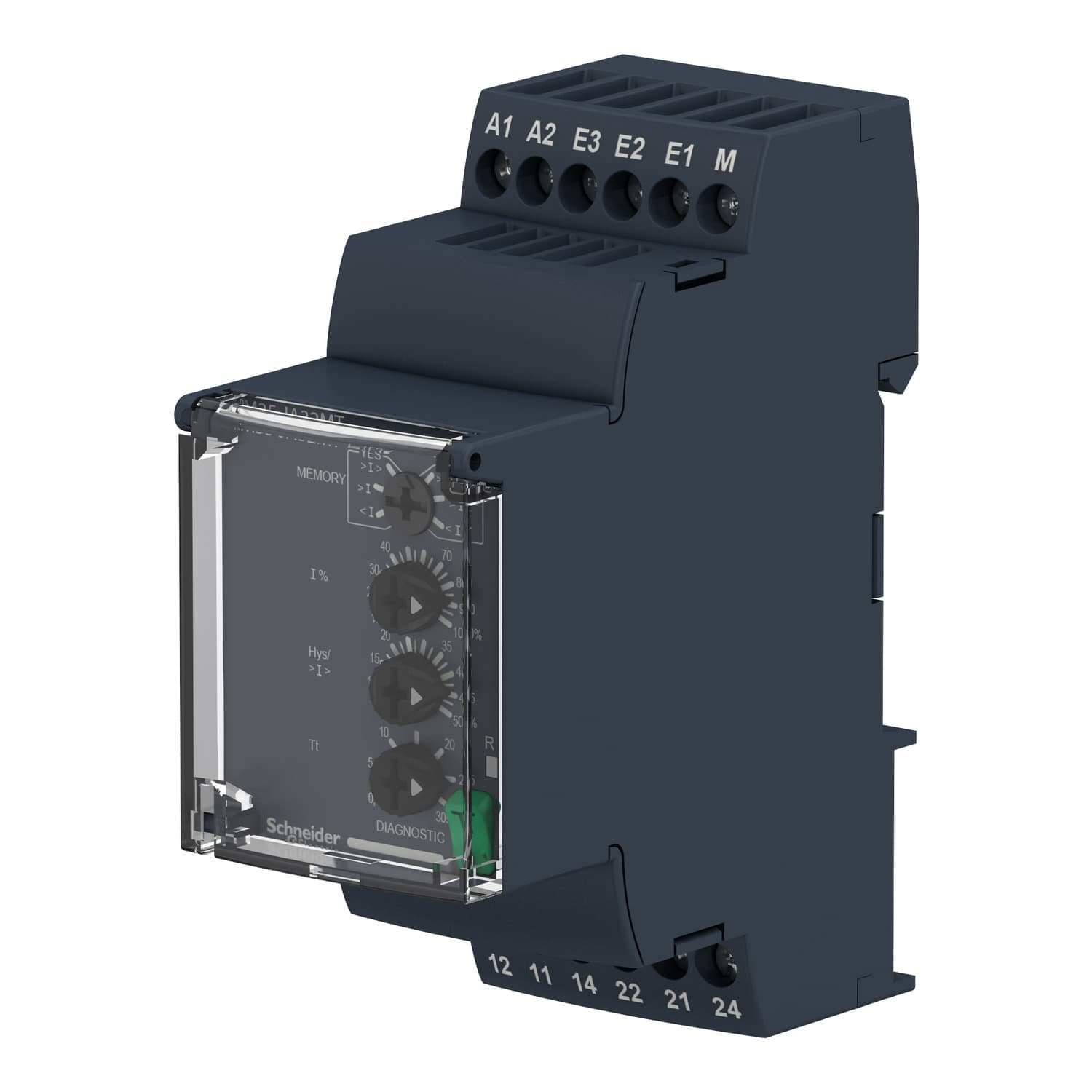

Schneider Electric current control relay. current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC.
current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Current control relay |
| Product or component type | Current control relay |
| Relay name | RM35JA |
| Relay monitored parameters | Overcurrent or undercurrent detection · Overcurrent or undercurrent in window mode |
| Time delay type | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| Maximum power consumption in VA | 8 VA |
| Measurement range | 150 mA...15 A AC 50/60 Hz |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 · DC-13 conforming to IEC 60947-5-1 · AC-1 conforming to IEC 60947-4-1 · DC-1 conforming to IEC 60947-4-1 |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms at maximum voltage |
| Maximum switching voltage | 250 V AC |
| Supply voltage limits | 323…456.5 V AC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Resistance across terminals | 0.005 Ohm at E3-M terminals · 0.015 Ohm at E2-M terminals · 0.05 Ohm at E1-M terminals |
| Output contacts | 2 C/O |
| nominal output current | 8 A |
| Maximum measuring cycle | 100 ms measurement cycle as true rms value |
| Internal input resistance | 0.005 Ohm · 0.015 Ohm · 0.05 Ohm |
| Setting accuracy of the switching threshold | +/- 10 % of the full scale · +/- 20 % of the full scale |
| Switching threshold drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature · <= 1 % within the supply voltage range |
| Setting accuracy of time delay | 10 P |
| Time delay drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature · <= 1 % within the supply voltage range |
| Hysteresis | 5…50 % adjustable of threshold setting · 3 % fixed of full scale for window mode |
| delay at power up | 0.3 s |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit · +/- 2 % for time delay |
| Measurement error | < 1 % over the whole range with voltage variation · 0.05 %/°C with temperature variation |
| Response time | <= 500 ms (on crossing the threshold) |
| Threshold setting | 10...100 % |
| Overvoltage category | III conforming to IEC 60664-1 · III conforming to UL 508 |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| Insulation | Between supply and measurement |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end · Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Local signalling | LED (yellow) for relay ON · LED (green) for power ON |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| [Us] rated supply voltage | 380...415 V AC 50/60 Hz, non self-powered |
| Safety reliability data | MTTFd = 296.8 years · B10d = 270000 |
| Contacts material | Cadmium free |
