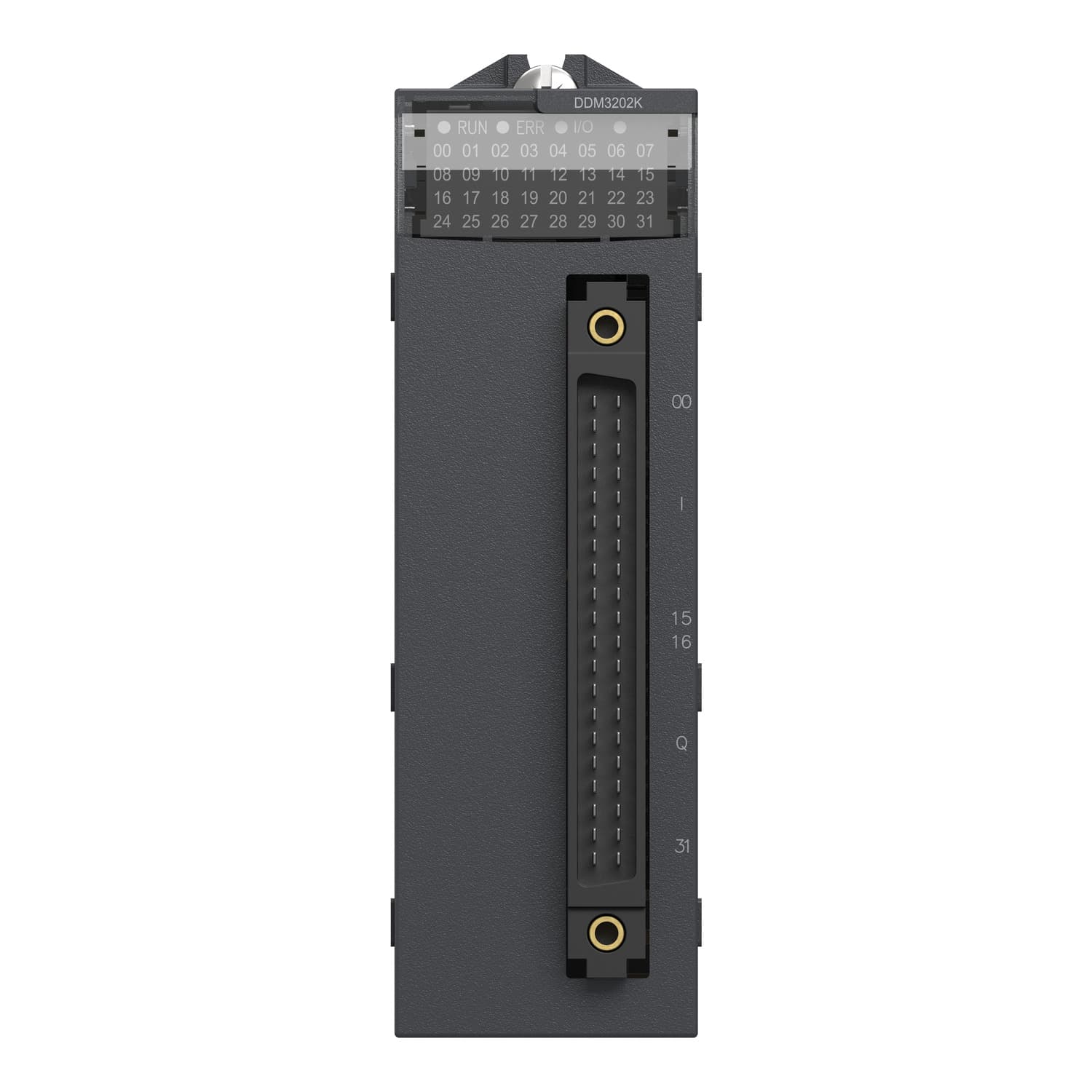

Schneider Electric discrete i/o module. discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive.
discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete I/O module |
| Discrete input number | 16 |
| Input impedance | 9600 Ohm |
| Response time on output | 1.2 ms |
| Maximum voltage drop | <1.5 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Current per channel | 0.125 A |
| Maximum current per module | 3.2 A |
| Paralleling of outputs | Yes : 3 maximum |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | <= 220 Ohm |
| Reverse polarity protection | Reverse mounted diode |
| Current consumption | <= 104 mA at 24 V DC · <= 166 mA at 3.3 V DC |
| MTBF reliability | 430000 H |
| Protection type | 1 external fuse per group of input channel0.5 A fast blow · overvoltage protection on output · reverse polarity protection on input · reverse polarity protection on output |
| Voltage detection threshold | 18 V DC preactuator OK · > 18 V DC sensor OK |
| Product weight | 0.11 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground · 1500 V AC at 50/60 Hz 1 minute, output/internal logic · 1500 V AC at 50/60 Hz 1 minute, primary/secondary · 500 V DC 1 minute, between group of inputs and outputs |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.355 kg |
| Warranty (in months) | 18 |
