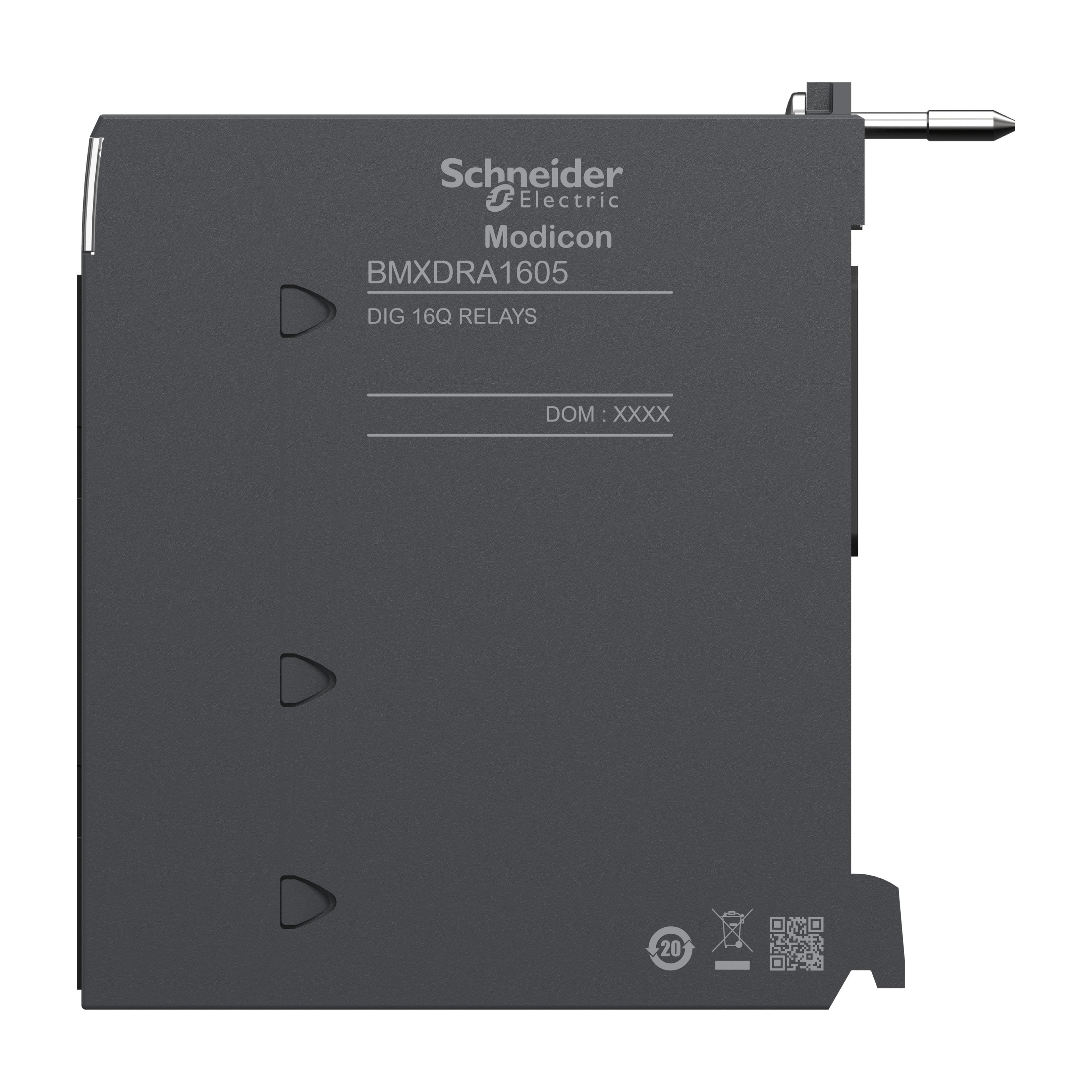

Schneider Electric discrete output module. discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC.
discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
| Minimum switching current | 1 mA 5 V DC |
| Response time on output | < 8 ms activation · < 10 ms deactivation |
| Insulation resistance | > 10 MOhm 500 V DC |
| MTBF reliability | 2100000 H |
| Product weight | 0.15 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.960 kg |
| Warranty (in months) | 18 |
