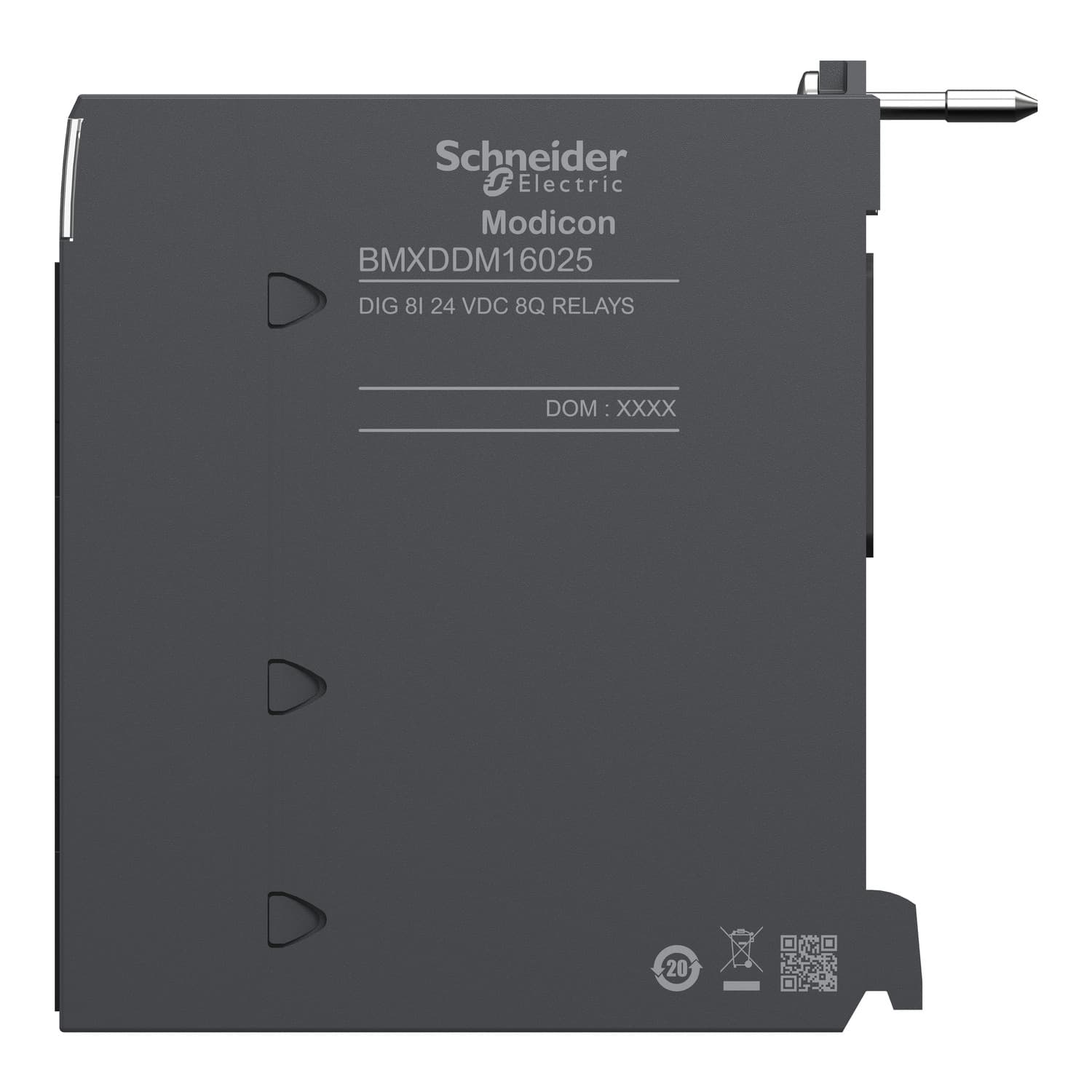

Schneider Electric discrete i/o module. discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive.
discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete I/O module |
| Discrete input number | 8 |
| Input impedance | 6800 Ohm |
| Paralleling of inputs | No |
| Minimum switching current | 1 mA 5 V DC |
| Response time on output | <= 8 ms deactivation · <= 10 ms activation |
| Insulation resistance | > 10 MOhm 500 V DC |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Switching frequency | 1 Hz |
| Maximum switching voltage | 125 V DC · 264 V AC |
| MTBF reliability | 940000 H |
| Protection type | 1 external fuse per group of input channel0.5 A fast blow · reverse polarity protection on input · 1 external fuse per output channel or group of output channel fast blow |
| Voltage detection threshold | 18 V DC sensor OK |
| Product weight | 0.135 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary · 2830 V AC at 50/60 Hz 1 minute, output relay · 500 V DC 1 minute, between group of I/O |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.760 kg |
| Warranty (in months) | 18 |
