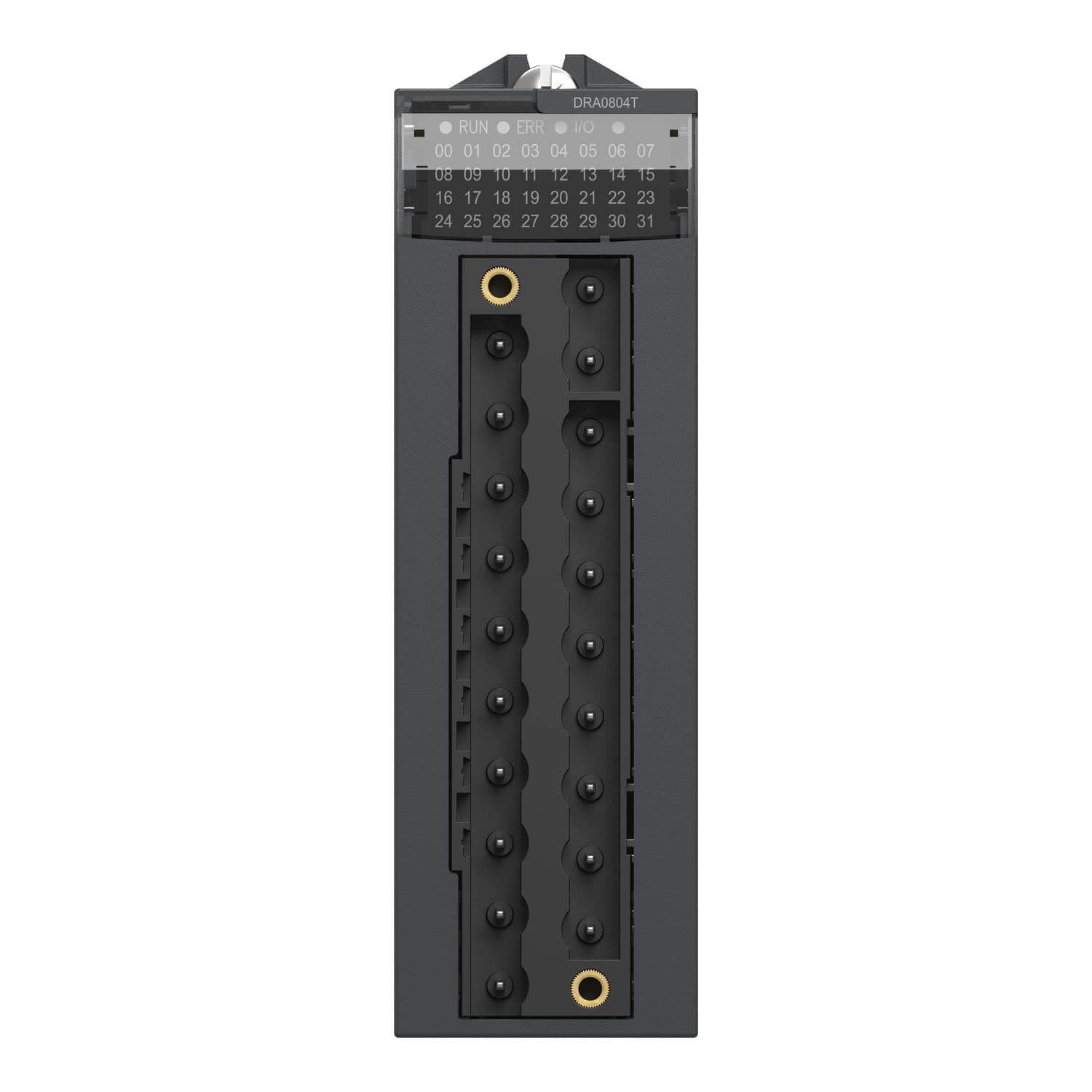

Schneider Electric discrete output module. discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature.
discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
| Minimum switching current | 100 mA 5 V DC |
| Response time on output | < 10 ms activation · < 10 ms deactivation |
| Insulation resistance | > 10 MOhm 500 V DC |
| Maximum switching current | 0.3 A |
| Current consumption | <= 112 mA at 3.3 V DC · <= 117 mA at 24 V DC |
| MTBF reliability | 2800000 H |
| Product weight | 0.145 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Environmental characteristic | Gas resistant class Gx · Gas resistant class 3C4 · Dust resistant class 3S4 · Sand resistant class 3S4 · Salt resistant level 2 · Mold growth resistant class 3B2 · Fungal spore resistant class 3B2 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.307 kg |
| Warranty (in months) | 18 |
