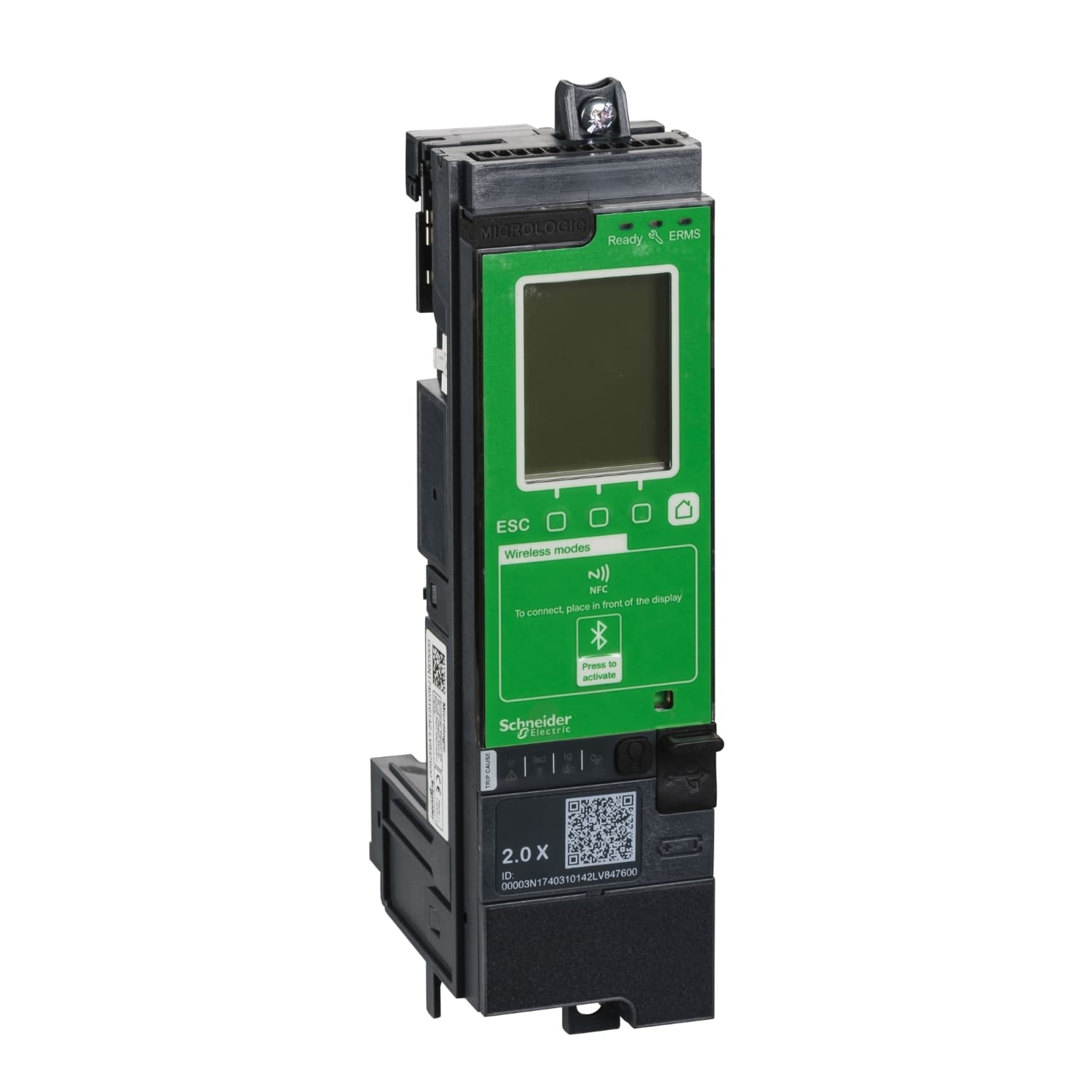

Schneider Electric MasterPact. Digital module, MasterPact MTZ, individual harmonics analysis, MicroLogic X control unit.
Digital module, MasterPact MTZ, individual harmonics analysis, MicroLogic X control unit. Genuine Schneider Electric product supplied by United Force.
| Range | MasterPact |
|---|---|
| Application description | Individual harmonics analysis |
| Range compatibility | MasterPact MTZ1 circuit breaker · MasterPact MTZ2 circuit breaker · MasterPact MTZ3 circuit breaker |
| Product compatibility | control unit MicroLogic 2.0 X · control unit MicroLogic 3.0 X · control unit MicroLogic 5.0 X · control unit MicroLogic 6.0 X · control unit MicroLogic 7.0 X · control unit MicroLogic 3.0 Xi · control unit MicroLogic 5.0 Xi · control unit MicroLogic 6.0 Xi |
| Function of module | Metering |
| Service description | Individual harmonics of voltages and currents are available up to rank 40 · Calculation of individual harmonics performed every 200 ms · MicroLogic X provides the aggregated values calculated on a time period of 3 s · Calculation according to the measurements methods (IEC61000-4-30) |
| Service benefits | Individual harmonics at a glance on your smartphone · Easy share with a remote expert thanks to the share function on the smartphone · Remote individual harmonics analysis thanks to EcoStruxure Power platform |
| Energy management | Measurement ,individual harmonics (option) |
| Measurement accuracy | Current and voltage +/- 4 % of the measuring range |
| Software name | EcoStruxure Power Commission |
| Warranty (in months) | 18 |
