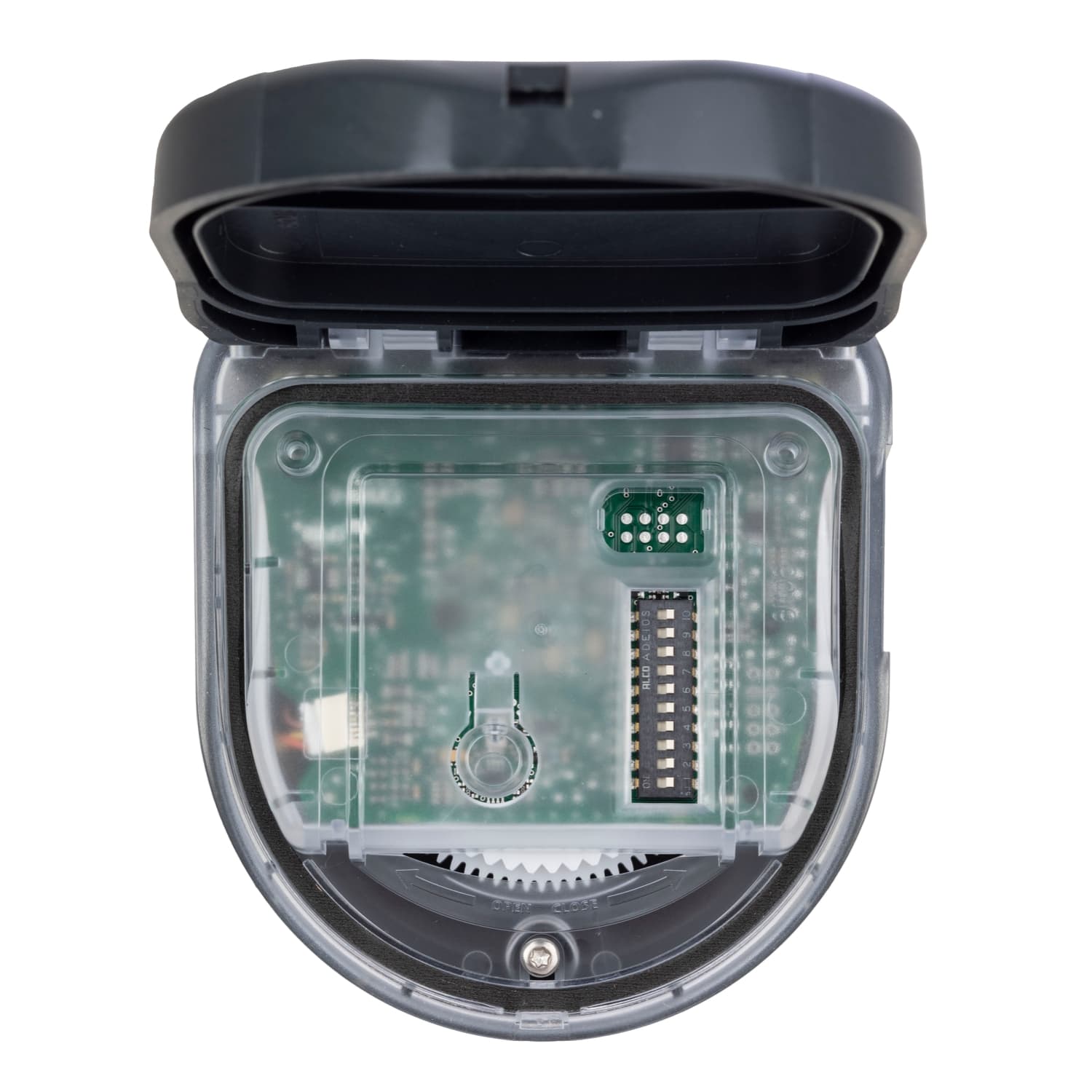

Schneider Electric actuator. SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).
SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).. Genuine Schneider Electric product supplied by United Force.
| Actuator product range | SpaceLogic |
|---|---|
| Product or component type | Actuator |
| Actuator type | Electric |
| Product destination | pressure independent control valves |
| Motor type | Brushless DC motor |
| Power consumption in VA | 2.7 VA AC |
| Hold-in power consumption in W | 0.7 W |
| Hold-in power consumption in VA | 1.8 VA AC |
| Power loss return | Non-spring return |
| Control signal | Proportional/modulating · BACnet · Modbus |
| Targeted region | Europe · Asia Pacific. · Australia. · North America. |
| Actuator | Linear |
| Control type | Manual override |
| rated supply voltage | 24 V AC/DC |
| Stroke auto calibration | True |
| Electrical insulation class | Class III |
| Force N | 90 N |
| Force lbf | 21 lbf |
| Stroke running time | 24 s |
| Material | Polycarbonate: housing |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -10…50 °C |
| Relative humidity | 0…90 % RH, non-condensing |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 39.6 cm |
| Package 2 Width | 28.4 cm |
| Package 2 Length | 21.5 cm |
| Package 2 Weight | 7.60 kg |
| Warranty (in months) | 18 |
