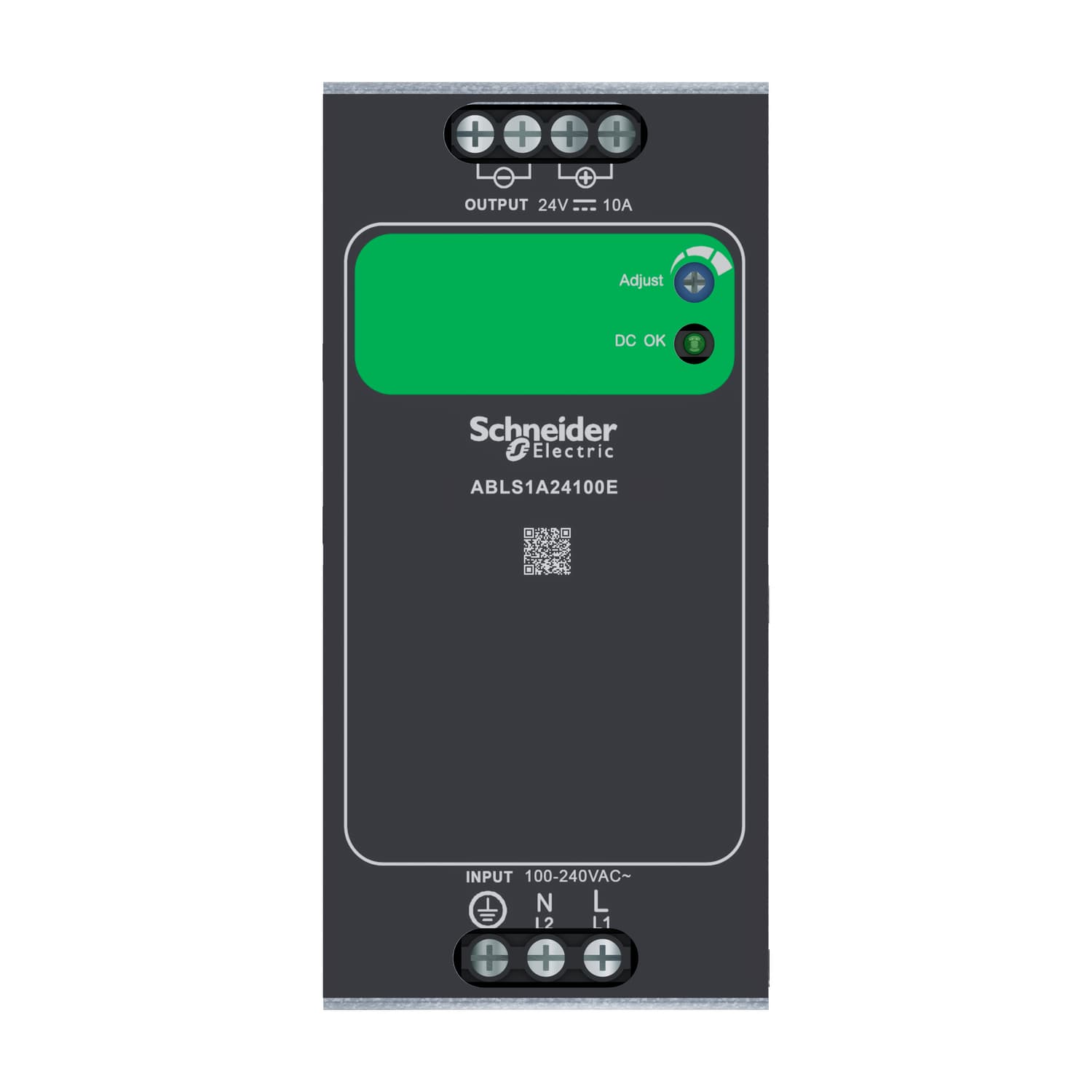

Schneider Electric power supply. single phase power supply, 100 to 240V AC input, 24V DC output, 240W, Din-rail, IP20.
single phase power supply, 100 to 240V AC input, 24V DC output, 240W, Din-rail, IP20. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon ABL2 |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Rated power in W | 240 W |
| Main Input Voltage | 100...240 V AC single phase · 140...340 V DC |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Operating position | Vertical |
| Vibration resistance | 2 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Name of test | Radiated electromagnetic field conforming to EN 61000-4-3 level 3A · Electrostatic discharges conforming to EN 61000-4-2 level 3B · Electrical fast transients/bursts conforming to EN 61000-4-4 level 3B · Surge conforming to EN 61000-4-5 level 3B · Conducted conforming to EN 61000-4-6 level 3A · Emission conforming to EN 55032 · conforming to EN 61000-3-2 |
| Input voltage limits | 90...264 V AC · 127...370 V DC |
| Network frequency | 47...63 Hz |
| Inrush current | 20 A at 115 V AC · 35 A at 230 V AC |
| Cos phi | 0.9…0.98 |
| Efficiency | 88 % |
| Power dissipation in W | 25 W |
| Current consumption | 1.18 A at 240 V · 2.91 A at 100 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 21.6...27.6 V |
| Line and load regulation | +/- 1 % |
| Holding time | >= 16 ms at 115 V |
| Output protection type | Against overload, protection technology: 1.1...1.3 x In overload protection · Against overvoltage, protection technology: tripping if U between 29...33 V · Against short-circuits, protection technology: automatic reset · Thermal, protection technology: auto reset |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² 12 AWG · For input connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG · For output connection: screw type terminals, connection capacity: 4 x 4 mm² 12 AWG |
| Marking | CE · UL |
| Operating altitude | 2000 m · 5000 m |
| Overvoltage category | II |
| Meantime between failure [MTBF] | 100000 h at 40 °C |
| Status LED | 1 LED (green) output voltage |
| Width | 60 mm |
| Height | 125 mm |
| Depth | 113 mm |
| Product weight | 0.935 kg |
| Product certifications | CE · RoHS · RoHS (china) · UKCA · UL 508 · REACH |
| Environmental characteristic | Safety conforming to EN 62368-1 · EMC conforming to BS EN/EN 61000-4-2/3/4/5/6/8/11 · EMC conforming to EN 55032 · EMC conforming to EN 61000-3-2 |
| IP degree of protection | IP20 conforming to EN 62368-1 |
| Ambient air temperature for operation | 20…50 °C (without derating) · 50…70 °C (with derating factor) |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 10…95 % |
| Pollution degree | 2 |
| Dielectric strength | 2000 V between input and ground · 3000 V between input and output · 500 V between output and ground |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
