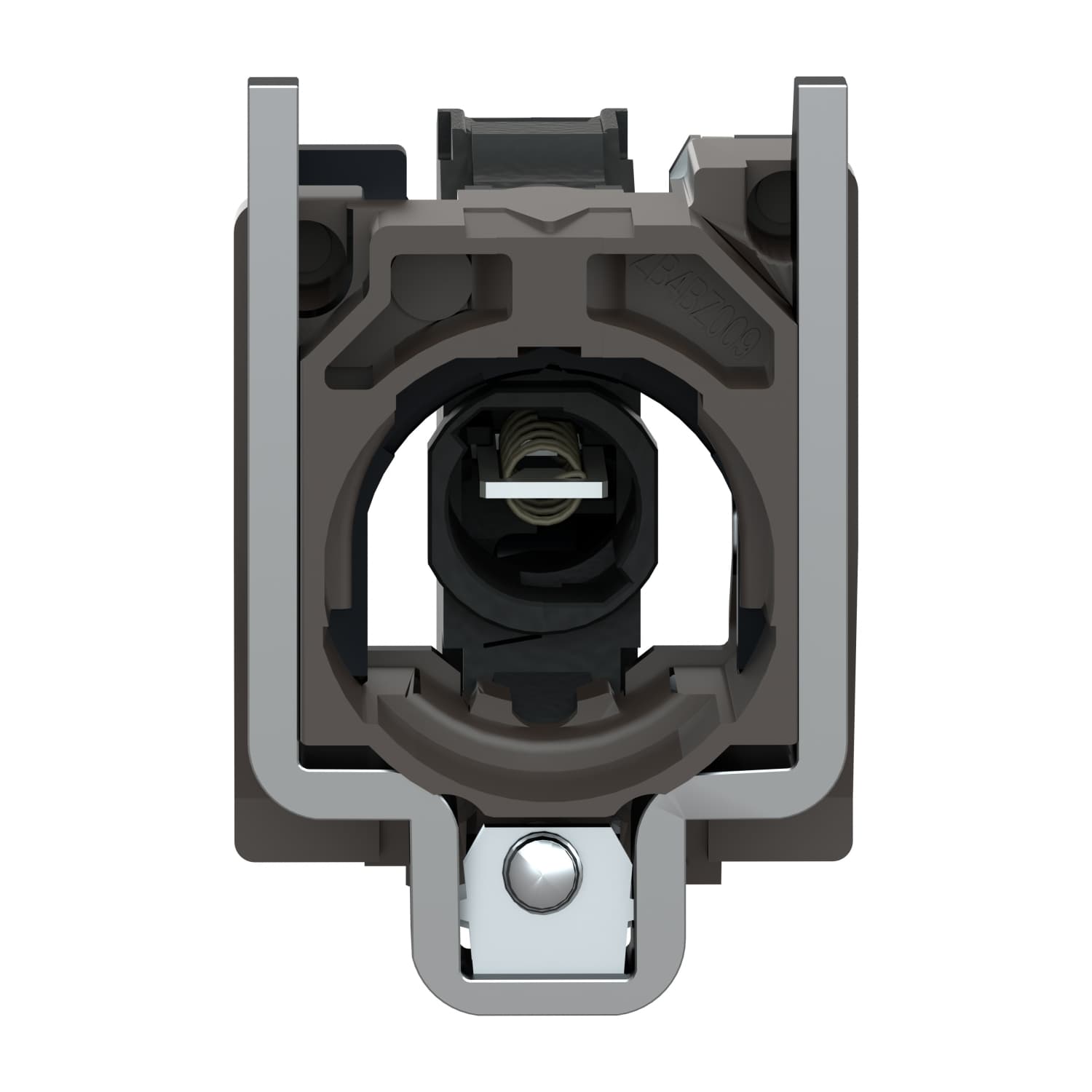

Schneider Electric complete body/light block assembly. Light block with body fixing collar, Harmony XB4, metal, for BA9s bulb, lt 250V.
Light block with body fixing collar, Harmony XB4, metal, for BA9s bulb, lt 250V. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Complete body/light block assembly |
| Device short name | ZB4 |
| Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 |
| Connections - terminals | Screw clamp terminals, = 1 x 0.22 mm² without cable end |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
| CAD overall width | 30 mm |
| CAD overall height | 47 mm |
| CAD overall depth | 37 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Product weight | 0.052 kg |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Basic sub-assemblies |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| Standards | IEC 60947-5-5 · IEC 60947-5-4 · IEC 60947-1 · IEC 60947-5-1 · UL 508 · CSA C22.2 No 14 · JIS C8201-5-1 · JIS C8201-1 |
| Product certifications | DNV · UL listed · LROS (Lloyds register of shipping) · BV · CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 4.500 cm |
| Package 2 Width | 3.400 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 258.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 15.942 kg |
| Warranty (in months) | 18 |
