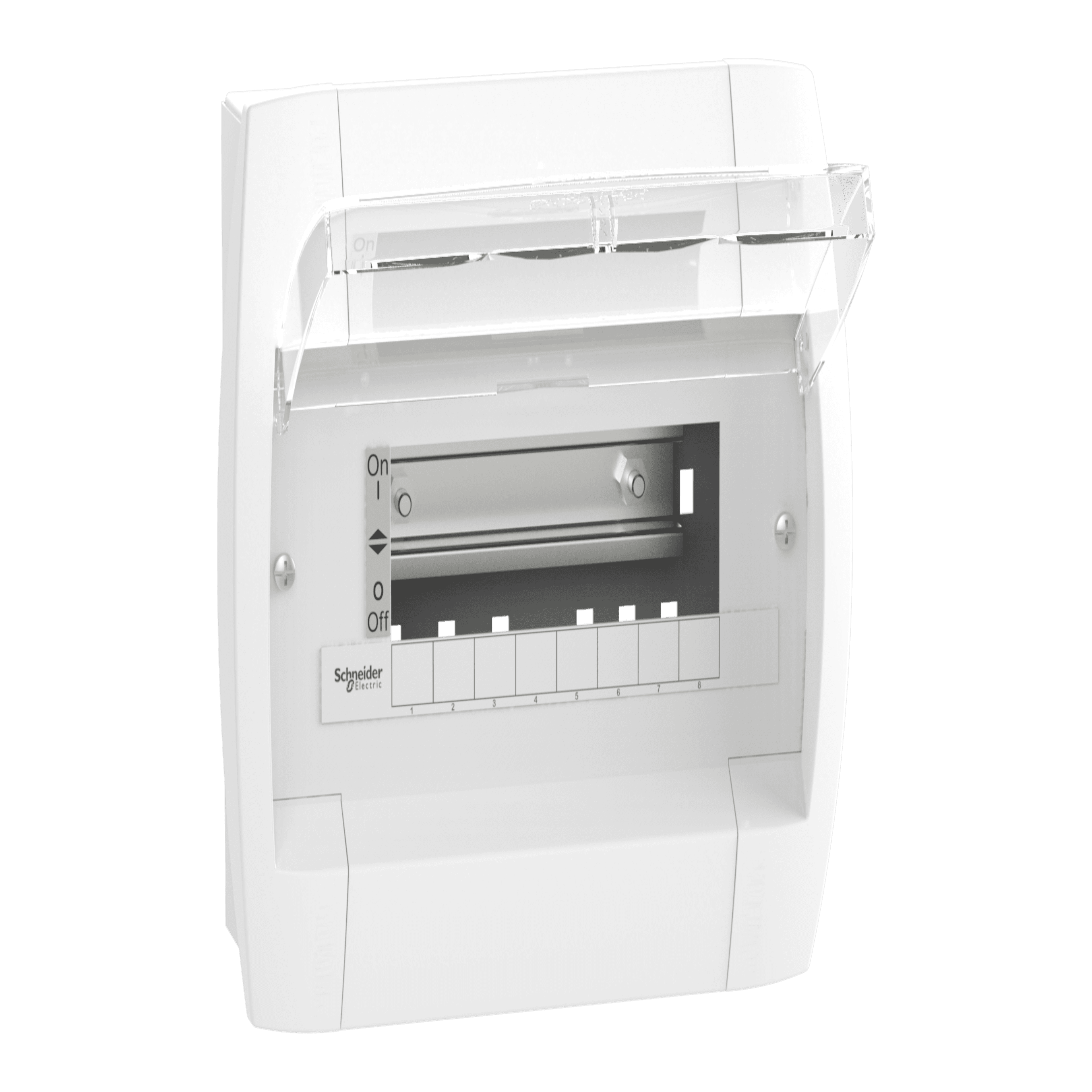

Schneider Electric distribution board, rated 100 A. Single phase distribution board, Acti9 Disbo, row type, 8 ways, flush mount.
Single phase distribution board, Acti9 Disbo, row type, 8 ways, flush mount. Genuine Schneider Electric product supplied by United Force.
| Range of the product | Acti9 Disbo |
|---|---|
| Product or component type | Distribution board |
| Device application | Low voltage electrical distribution |
| Number of ways | 8 ways |
| Provided equipment | enclosure · neutral bar · earthing bar · pan assembly · DIN rail |
| [In] rated current | 100 A |
| Rated voltage | 220 V AC 50/60 Hz |
| Network number of phases | 1 phase |
| Protection device options | Miniature circuit breaker (MCB) 100 A max as incomer · Residual current circuit breaker (RCCB) 100 A max as incomer · Residual current circuit breaker with overcurrent protection (RCBO) 63 A max as outgoer · Miniature circuit breaker (MCB) 63 A max as outgoer |
| Enclosure mounting | Flush |
| Door type | Plain curved door |
| Cable entry | Removable gland plate at top and bottom of the enclosure |
| Enclosure material | electro galvanised steel |
| Colour | White (RAL 9003) |
| Width | Outside: 239 mm |
| Height | Outside: 73 mm |
| Depth | Outside : 208 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | IEC 61439-3 |
| Warranty (in months) | 18 |
