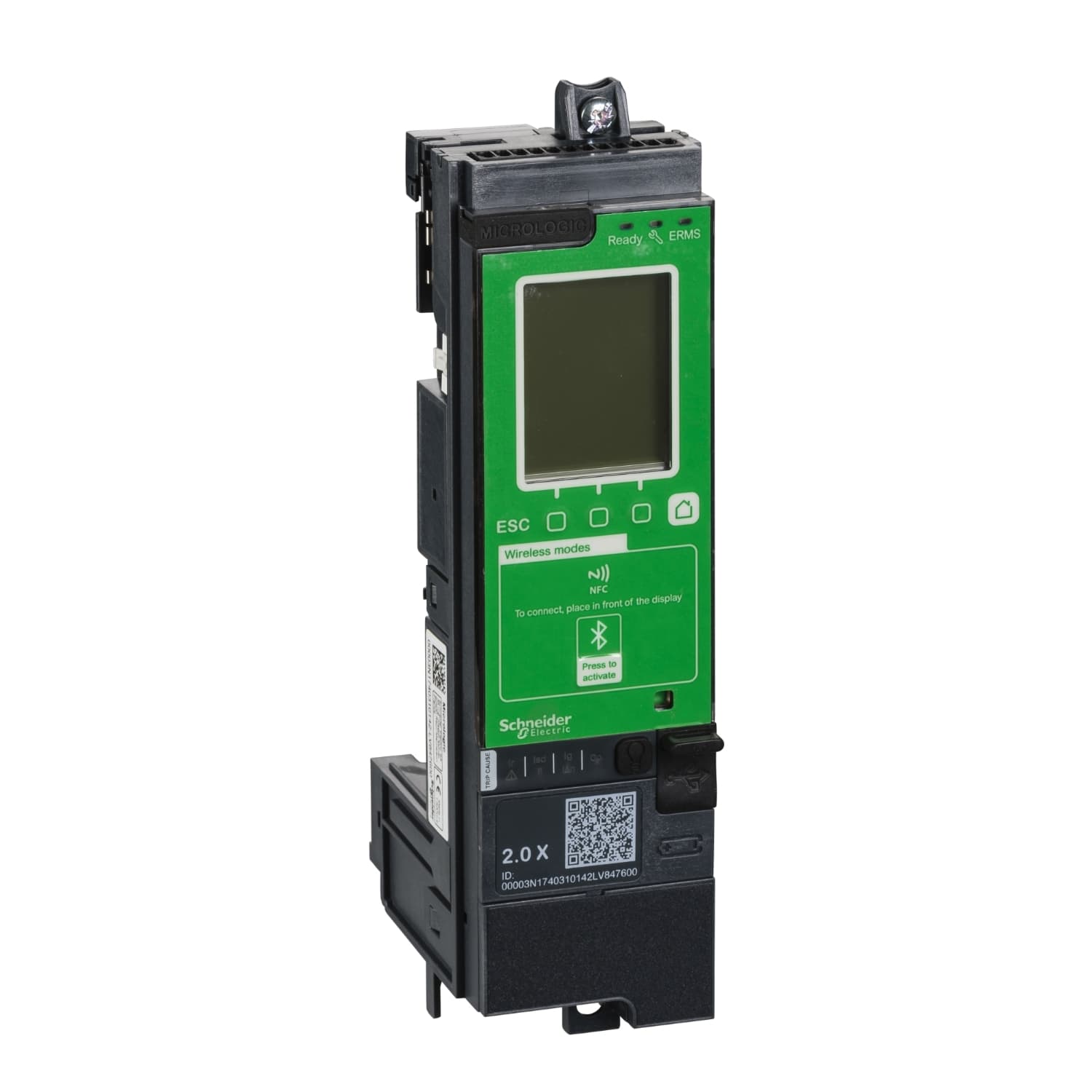

Schneider Electric MasterPact. Digital module, MasterPact MTZ, waveform capture on trip event, MicroLogic X control unit.
Digital module, MasterPact MTZ, waveform capture on trip event, MicroLogic X control unit. Genuine Schneider Electric product supplied by United Force.
| Range | MasterPact |
|---|---|
| Application description | Trip fault WFC |
| Range compatibility | MasterPact MTZ1 circuit breaker · MasterPact MTZ2 circuit breaker · MasterPact MTZ3 circuit breaker |
| Product compatibility | control unit MicroLogic 2.0 X · control unit MicroLogic 3.0 X · control unit MicroLogic 5.0 X · control unit MicroLogic 6.0 X · control unit MicroLogic 7.0 X · control unit MicroLogic 3.0 Xi · control unit MicroLogic 5.0 Xi · control unit MicroLogic 6.0 Xi |
| Service description | Sampling period of 512 micro seconds in case of trip of LSI or G protection · Allows to log automatically five cycles of phase and neutral currents · Records the following status: circuit breaker open/closed/trip and ZSI signals · Display one cycle before the fault and 4 cycles after |
| Service benefits | Help to understand the potential damage on the installation · Support analysis of global behaviour of the circuit breaker in the power system · Help to understand the nature and gravity of the fault (amplitude and duration) |
| Energy management | Diagnostics and maintenance ,crisis management (option) |
| Software name | EcoStruxure Power Commission |
| Warranty (in months) | 18 |
