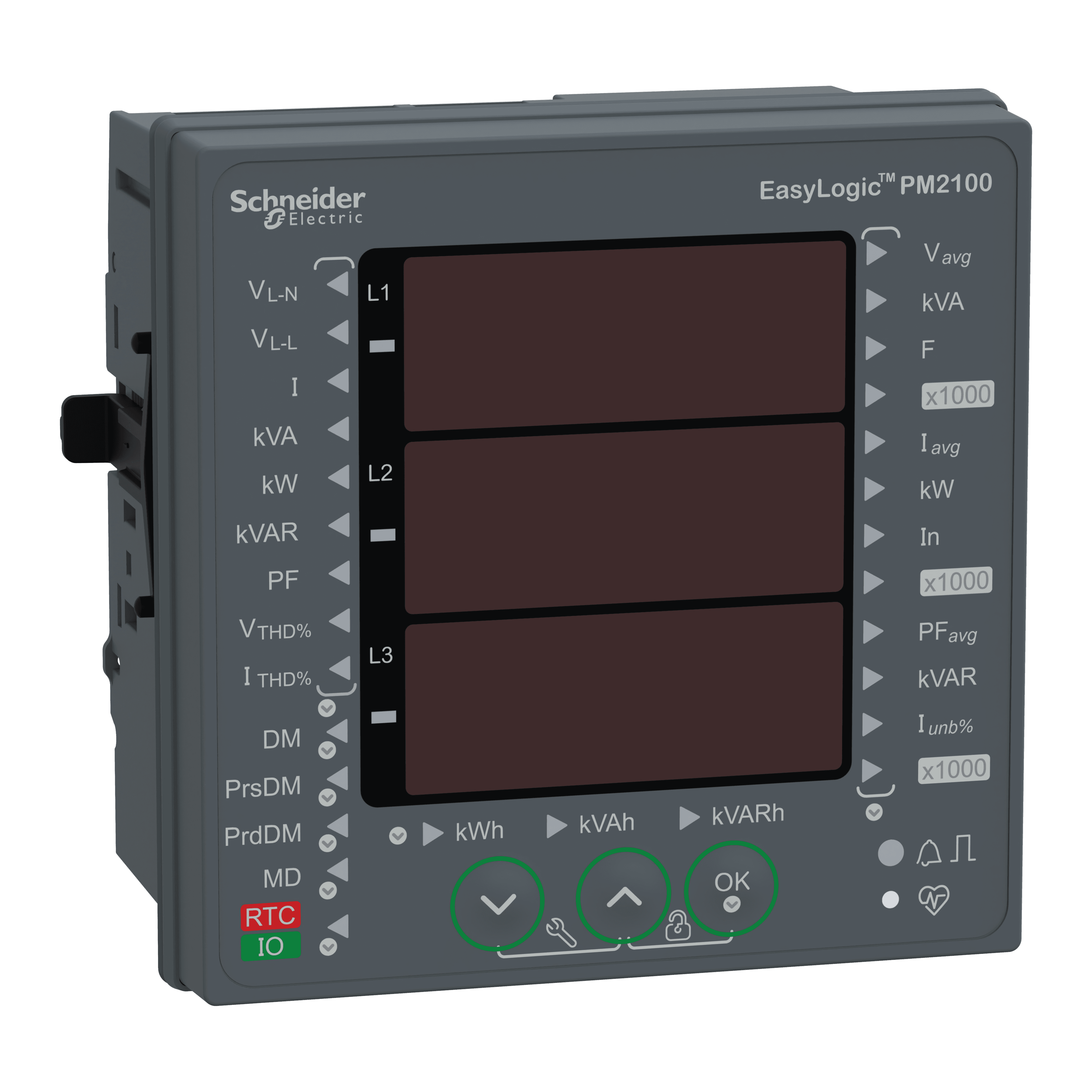

Schneider Electric EasyLogic PM2100 power meter, rated 1 A. EasyLogic PM2130, Power & Energy meter, up to the 31st harmonic, LED display, RS485, class 0.5S.
EasyLogic PM2130, Power & Energy meter, up to the 31st harmonic, LED display, RS485, class 0.5S. Genuine Schneider Electric product supplied by United Force.
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic PM2100 |
| Product or component type | Power meter |
| Device short name | PM2130 |
| Device application | Sub billing · Power monitoring |
| Power quality analysis | total harmonic distortion · up to the 31st harmonic |
| Type of measurement | Apparent power min/max, total · Active and reactive power min/max, total · Current min/max, avg · Voltage min/max, avg · Frequency min/max, avg · Total current harmonic distortion THD (I) per phase · Total voltage harmonic distortion THD (U) per phase · Power factor min/max, avg · Apparent energy total · Active and reactive energy total |
| Metering type | Peak demand currents · Active power P, P1, P2, P3 · Demand power P, Q, S · Reactive power Q, Q1, Q2, Q3 · Apparent power S, S1, S2, S3 · Active, reactive, apparent energy (signed, four quadrant) · Voltage U, U21, U32, U13, V, V1, V2, V3 · Current I, I1, I2, I3 · Calculated neutral current · Unbalance current · Peak demand power PM, QM, SM |
| Accuracy class | Class 1 reactive energy conforming to IEC 62053-24 · Class 0.5S active energy conforming to IEC 62053-22 · Class 5 harmonic distortion (I THD & U THD) |
| Measurement accuracy | Apparent power +/- 0.5 % · Active energy +/- 0.5 % · Reactive energy +/- 1 % · Active power +/- 0.5 % · Voltage +/- 0.5 % · Power factor +/- 0.01 · Current +/- 0.5 % · Frequency +/- 0.05 % |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases · 20…277 V AC 50/60 Hz between phase and neutral · 480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 80...277 V AC 45...65 Hz +/- 10 % · 100...277 V DC +/- 10 % |
| Network frequency | 50 Hz · 60 Hz |
| Ride-through time | 50 ms 120 V AC typical · 50 ms 230 V AC typical · 50 ms 125 V DC typical |
| [In] rated current | 1 A · 5 A |
| Maximum power consumption in VA | 8 VA at 277 V AC |
| Maximum power consumption in W | 3.3 W (power lines (AC)) · 3.3 W at 277 V (power lines (DC)) |
| input impedance | Current (impedance 5 MOhm) |
| Tamperproof of settings | Protected by access code |
| Display type | 7 segments LED |
| Display colour | Red |
| Messages display capacity | 3 fields of 4 characters |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Demand intervals | Configurable from 1 to 60 min |
| Information displayed | Demand current (past value) · Demand current (present value) · Demand power (past value) · Demand power (present value) · Voltage · Current · Frequency · Energy consumption · Harmonic distortion · Power factor · Active power · Apparent power · Reactive power · Unbalanced in % |
| Control type | 3 x button |
| Local signalling | Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) · Green LED: module operation and integrated communication |
| Number of inputs | 0 |
| Number of outputs | 0 |
| Communication port protocol | Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V |
| Communication port support | Screw terminal block: RS485 |
| Data recording | Power logs · Time stamping · Energy consumption logs · Min/max for 8 parameters |
| Function available | Real time clock |
| Sampling rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication service | Remote monitoring |
| Product certifications | CE conforming to IEC 61010-1 · CULus conforming to UL 61010-1 · CULus conforming to CSA C22.2 No 61010-1 · RCM · EAC · C-Tick |
| Mounting mode | Clip-on |
| Mounting position | Vertical |
| Mounting support | Framework |
| Provided equipment | 1 x installation guide |
| Measurement category | Category III 480 V · Category II 480…600 V |
| Electrical insulation class | Class II · Double insulation |
