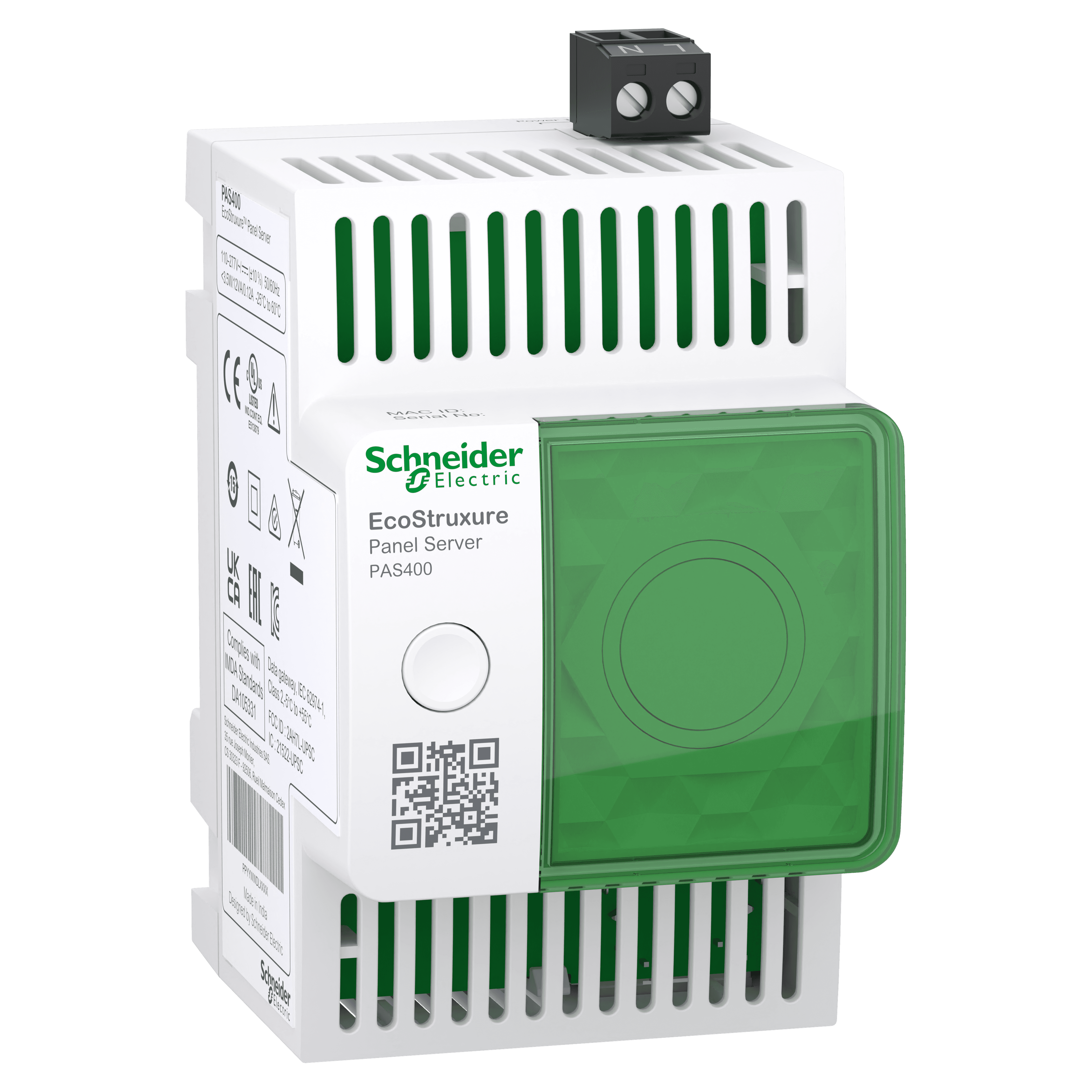

Schneider Electric Panel Server Entry gateway. EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC.
EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC. Genuine Schneider Electric product supplied by United Force.
| Range | EcoStruxure |
|---|---|
| Product name | Panel Server Entry |
| Product or component type | Gateway |
| Device short name | PAS400 |
| Device application | Gateway |
| [Us] rated supply voltage | 110...277 V AC 50/60 Hz |
| Communication gateway | Ethernet TCP/IP to wireless devices |
| Product compatibility | Wireless access point |
| Communication port protocol | Modbus TCP · DHCP · HTTPS · NTP/SNTP · IPv4 · IPv6 · TCP/IP |
| Communication port support | 1 RJ45: ETHERNET |
| Number of server device(s) | 20 wireless (IEEE 802.15.4) product(s) - mixed |
| Number of devices | 64 Modbus TCP/IP |
| Number of inputs | 0 |
| Connections - terminals | Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) · Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Power supply: 0.6 N.m · Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm · Communication: 7 mm |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE · cULus · CB · RCM · UKCA · FCC · IC · DNV Marine · ANSI RF · IACS E10 |
| Standards | IEC 61010 · IEC 61010-1 · IEC 61010-2-201 · UL 61010 · UL 61010-1 · UL 61010-2-201 · EN 61010-1 · EN 61010-2-201 · CAN/CSA C22.2 No. 61010-1-12 · CAN/CSA C22.2 No. 61010-2-201 · IEC 62974-1 · IEC 61326-1 · EN 61326-1 · ETSI EN 301 489-1 · ETSI EN 301 489-17 · EN 301-893 · EN 55032 · CISPR 11 · ETSI EN 300 328 · IEEE 802.15.4 · IEEE 802.11a/b/g/n · IEEE 802.3 af/at · FCC CFR 47 part 15 class A · EN 62311 · IEC 62311 · ANSI C63.10 · EN 62974-1 · DNVGL-GC-0339 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 54 mm |
| Product weight | 163 g |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function available | Embedded web page for configuration and upgrade · Diagnosis capabilities · Diagnostic report · Diagnostics on communication · Energy management · With integrated web server · Firmware update · Backup/restore configuration · Configurable event |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Web services | HTTPS server · SFTP publication (CSV / JSON) · HTTPS publication (CSV / JSON) |
| Communication service | Device Profile for Web Services (DPWS) · Modbus TCP server · SNTP client · DHCP client · RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop · EcoStruxure Power Commission Mobile (through Wi-Fi Access point) · Web page |
| Realtime clock | With RTC-battery set · With user calibration |
| Time synchronisation protocol | NTP · SNTP |
| Range compatibility | EcoStruxure Facility Expert · EcoStruxure Building Operation · EcoStruxure Power Operation · EcoStruxure Power Monitoring Expert · EcoStruxure Asset Advisor · EcoStruxure Energy Hub · EcoStruxure Resource Advisor · Third party SCADA |
| Communication iinterface | Wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 (front face) · IP20 (casing) |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 2 |
| Operating altitude | < 2000 m |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 45 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
