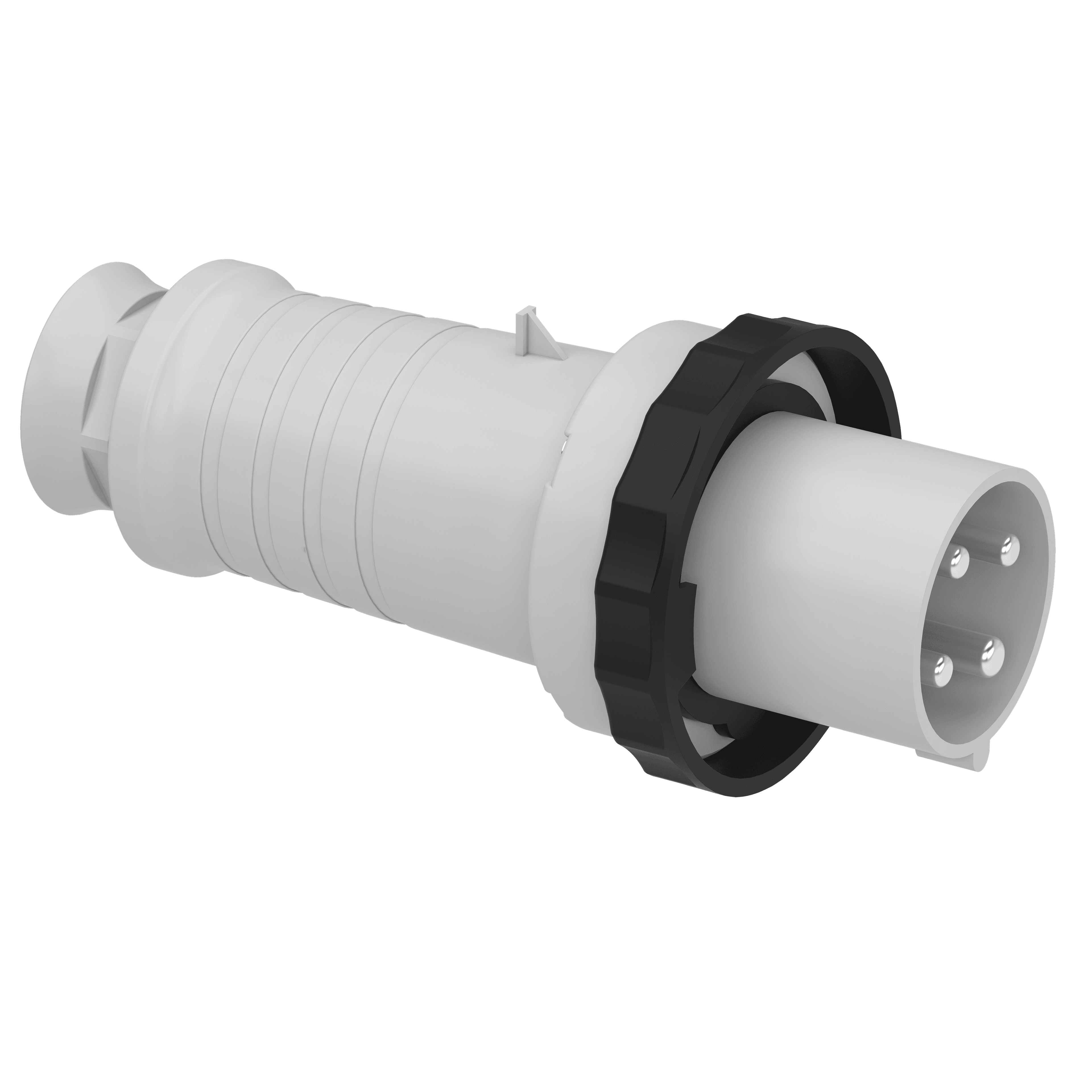

Schneider Electric Mureva wander plug, rated 63 A. Wander plug, Mureva PK, 63A, 3P+E, 500V, IP67.
Wander plug, Mureva PK, 63A, 3P+E, 500V, IP67. Genuine Schneider Electric product supplied by United Force.
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 480...500 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 7 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 6…25 mm² |
| Cable outer diameter | 17…31 mm |
| cable entry | Cable gland |
| Thread type | Pg 36 |
| Product weight | 0.735 kg |
| Height | 265 mm |
| Width | 110 mm |
| Depth | 110 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Black |
| Standards | IEC 60309-2 · IEC 60309-1 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C · 70 % at 30 °C · 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) · -25…40 °C |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.847 kg |
| Warranty (in months) | 18 |
